Remove the canopy from it’s original packaging

Remove the mounting plate from within the canopy by (1c)(2a)

removing the decorative nuts (2c)

Attach the mounting plate to the electrical junction box (1c) (1a) using

the junction box screws provided in the hardware package(1e)

Make sure to reinforce the wood behind the drywall and secure

mounting plate to mounting surface with wooden screws (1c)(1g)

and plastic anchors for extra support.(1f)

Wire strain relief (for thicker wire) (see illustration 1): Remove

wire grippersPull wire through nut , washer , threaded (2g). (3a)(3b)

cylinder (3c) and wire strain relief (3d). Secure threaded cylinder

(3c)(2a)(3b) to canopy with nut and washer (3a). Thread wire

strain relief to threaded cylinder . Slide wire to desired (3d)(3c)

length by pushing and pulling and secure with set screw (3e)

5.

To change fixture height, push and hold wire gripper , slide wire (2g)

to desired length and then release wire gripper to secure (2g)

7.

Make proper electrical connections ( to toblackhot white“L”,

neutralground“GND”)(1b) “N”, to with wire nuts provided in

hardware package

8.

Align and insert mounting plate screws through holes on (1d)

canopy (2a), secure with decorative nuts (2c)

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

20210429

1a.

1f.

3a.

3b.

3c.

3d.

3e.

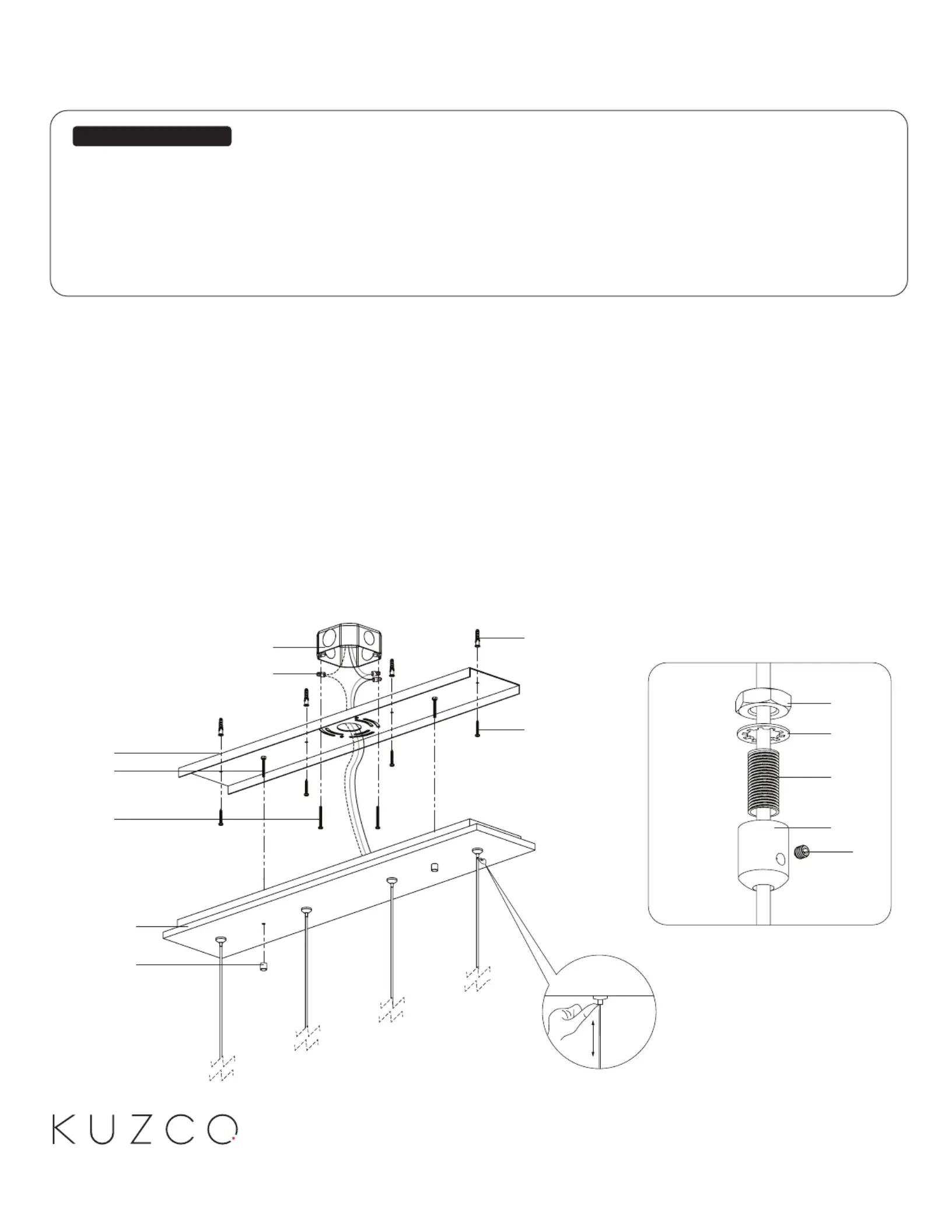

Illustration 1

(Wire strain relief for thicker wires)

1g.

1b.

1c.

1d.

2a.

2c.

1e.

2g.

INSTALLATION SHEET

CNP04AC

LED Ceiling Canopy

START FROM HERE

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all time during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926
