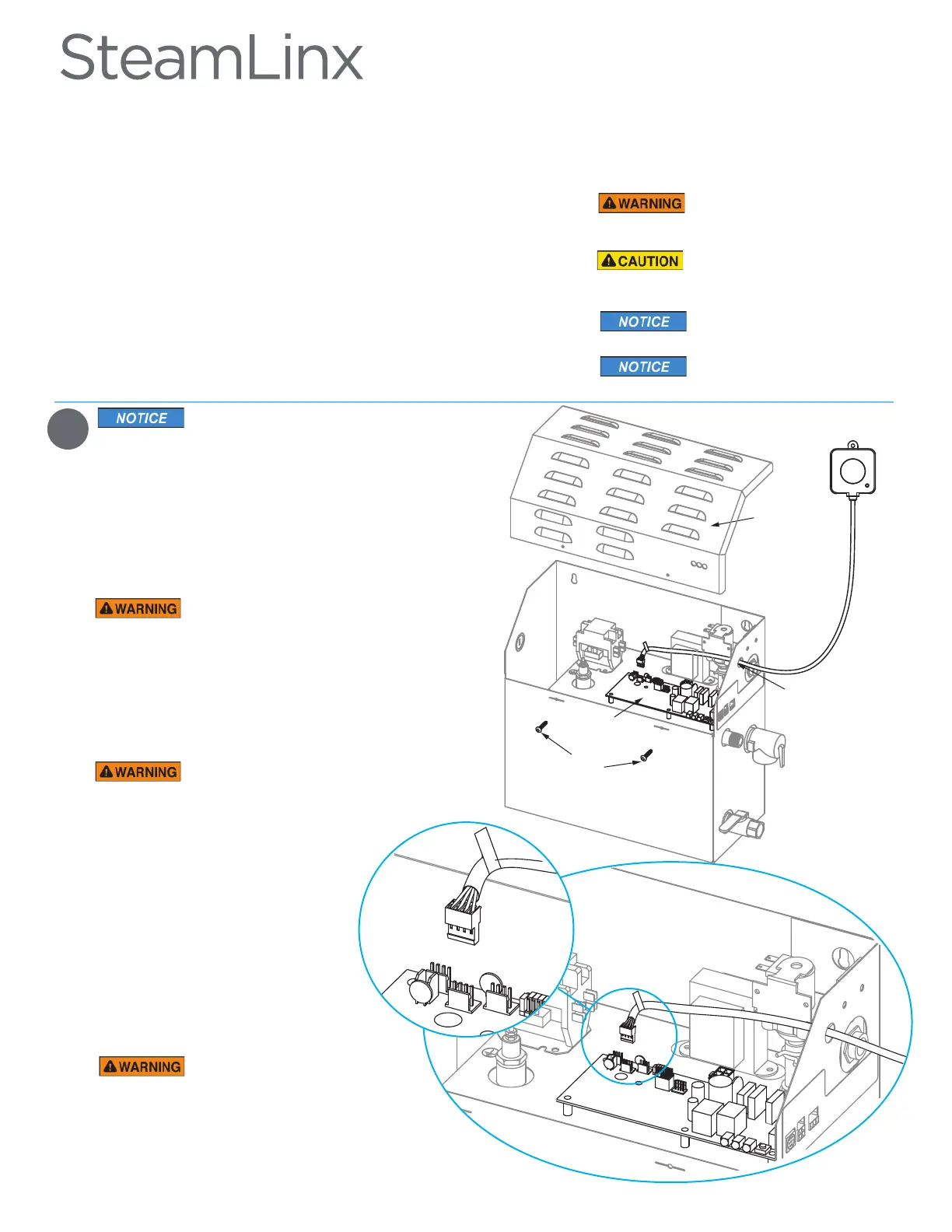

INSTALLATION INSTRUCTIONS

Indicates a potentially hazardous

situation, which, if not avoided, may result in

death or serious injury.

Indicates a potentially hazardous

situation, which, if not avoided, may result in

minor or moderate injury or product damage.

i Is used to address practices not

related to physical injury.

SteamLinx cannot be set up on a

Virtual Private Network (VPN).

Notice alert SteamLinx A and B

signal range is limited max. distance of 60ft.

SteamLinx Module and Mobile App allows for seamless control

of time and temperature using your smart phone or mobile

device. SteamLinx hardware is required for control with the

SteamLinx Skill for Alexa. SteamLinx works with all MrSteam

controls (for MS generators SN 1174000 and up).

These instructions contain safety alert symbols and panels. These alert symbols

and panels identify potential safety hazards and provide important information

for the installation and use of SteamLinx.

Read the Installation, Operation and Maintenance Manual for Steambath Generator

Systems (PUR100472) before installation of SteamLinx to insure safety and proper

installation of the steam Generator. A free replacement manual is available by

calling MrSteam Customer Service, or it can be downloaded from

mrsteam.com

All drawings for schematic purposes only.

Package Contents:

•SteamLinx A with Integral Cable

•SteamLinx B and Ethernet Cable

•Power Supply and Cable

•Instructions

Cover

Screws

Generator

Cover

Knock-out in

the Generator

Jacket

Connecting SteamLinx A to

the Steam Generator

•Disconnect power to the generator

at the breaker box.

•Locate the SteamLinx A

(with the integral cable).

To prevent shock hazard,

disconnect power at the breaker box before

removing generator cover

•Remove knock-out.

•Remove generator cover.

•Route the SteamLinx A cable

through the knockout

ELECTRICAL SHOCK HAZARD.

MrSteam steam generators are connected

to 240V line voltage and contain live

electrical components. All installation and

service must be performed by a

licensed and qualified electrician.

•Locate the circuit board.

•Plug the SteamLinx A into the

white connector located at the

far left side of the circuit board.

•Replace cover and screws.

•Restore power.

ELECTRICAL SHOCK HAZARD.

MrSteam steam generators are connected

to 240V line voltage and contain live

electrical components. All installation and

service must be performed by a licensed

and qualified electrician.

Circuit

Board
