Seite 1/6

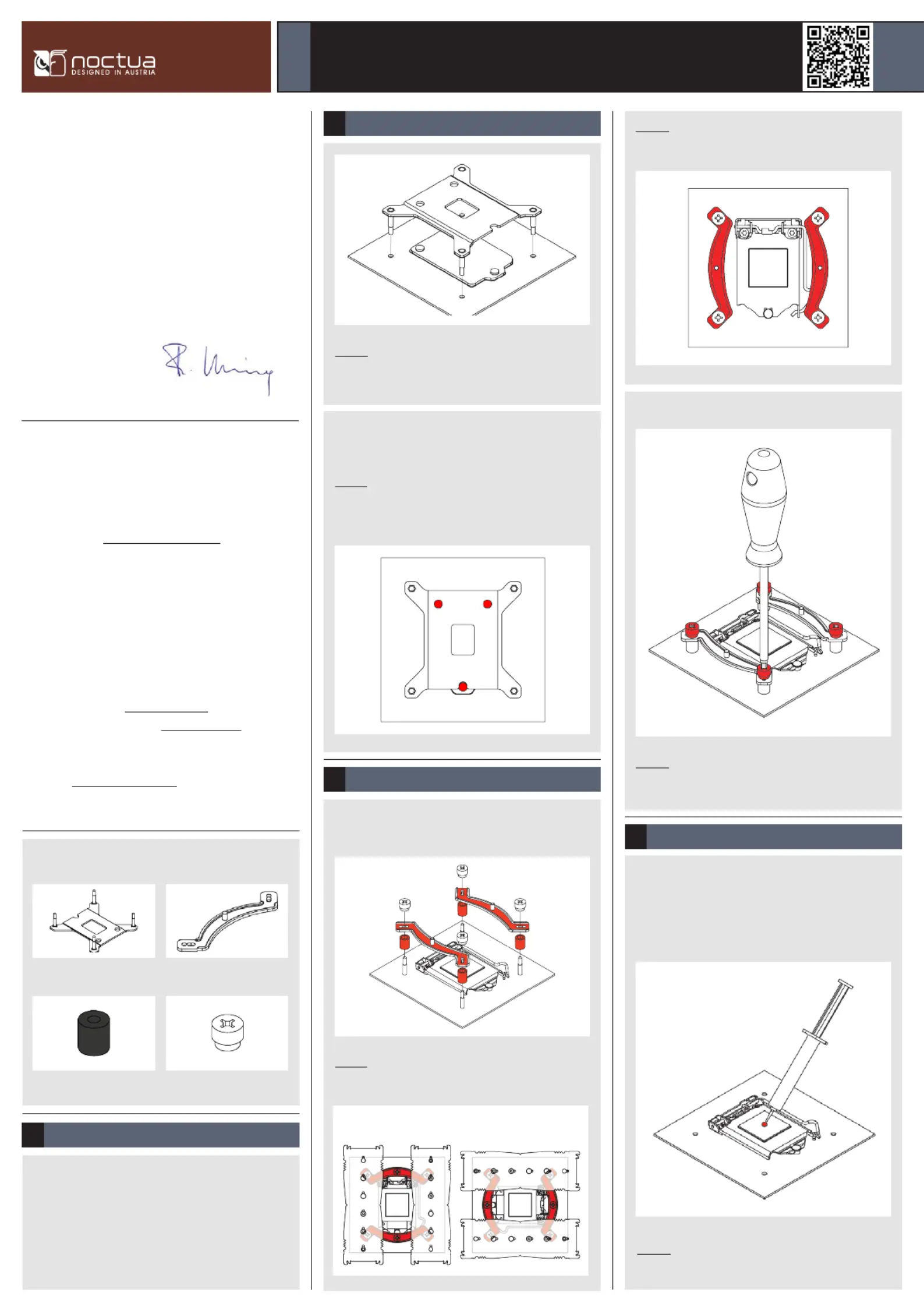

Caution: The supplied backplate will install over the mother-

board’s stock backplate, so the motherboard’s stock backplate

must not be taken off.

Attaching the backplate2

Place the backplate on the rear side of the motherboard so that

the bolts stick through the mounting holes.

Caution: Please make sure that the three cut-outs in the

supplied backplate align with the screws of the motherboard’s

stock backplate.

First put the plastic spacers onto the bolts of the backplate, then

add the mounting bars.

Installing the mounting bars3

Caution: Choose the alignment of the mounting bars according

to the desired nal orientation of the cooler:

Orientation A Orientation B

Caution: Make sure that the curved sides of the mounting bars

are pointing outwards.

Fix the mounting bars using the 4 thumb screws.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force (max. torque 0.6 Nm).

If there are residual traces of thermal paste or thermal pads

on your CPU, please clean them off rst. Then press a small

drop (3-4mm diameter) of NT-H1 onto the centre of the heat-

spreader.

Applying the thermal paste

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Dear customer,

Congratulations on choosing the Noctua NH-D15 chromax.

black. Built on the basis of the legendary NH-D14 and carrying

on its quest for ultimate quiet cooling performance, our agship

model NH-D15 is an elite class dual tower cooler for the highest

demands. I’m condent that you will be able to sense some of the

research, attention and care we’ve put into making this cooler.

Enjoy your NH-D15!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of

the SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility list

on our website (www.noctua.at/compatibility) and verify that

the cooler is fully compatible with your motherboard. Please

also make sure that your PC case offers sufcient clearance

for the cooler and that there are no compatibility issues with

any other components (e.g. tall RAM modules). Double check

that the heatsink and fan clips do not make contact with

the VGA card or other PCIe cards. Noctua cannot be held

responsible for any damage or losses caused by compatibility

issues. Should you encounter any difculties, please check the

FAQs on our website (www.noctua.at/faqs) and don’t hesitate

to contact our support team at support@noctua.at.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

Required mounting parts:

2x NM-IMB2 mounting bars1x NM-IBP2 backplate

4x NM-ITS1 thumb screws

In case you want to use the cooler on an assembled system

and your case doesn’t have a cut-out at the rear side of the

motherboard tray, you rst have to remove the motherboard

from the case in order to be able to install the supplied

backplate.

Removing the motherboard1

4x NM-IPS1 spacers

NOCTUA NH-D15 chromax.black

INSTALLATION MANUAL

LGA115x

Scan this code to display

multilingual manuals on

your phone.

NOCTUA NH-D15 chromax.black

INSTALLATION MANUAL

LGA115x

Scan this code to display

multilingual manuals on

your phone.

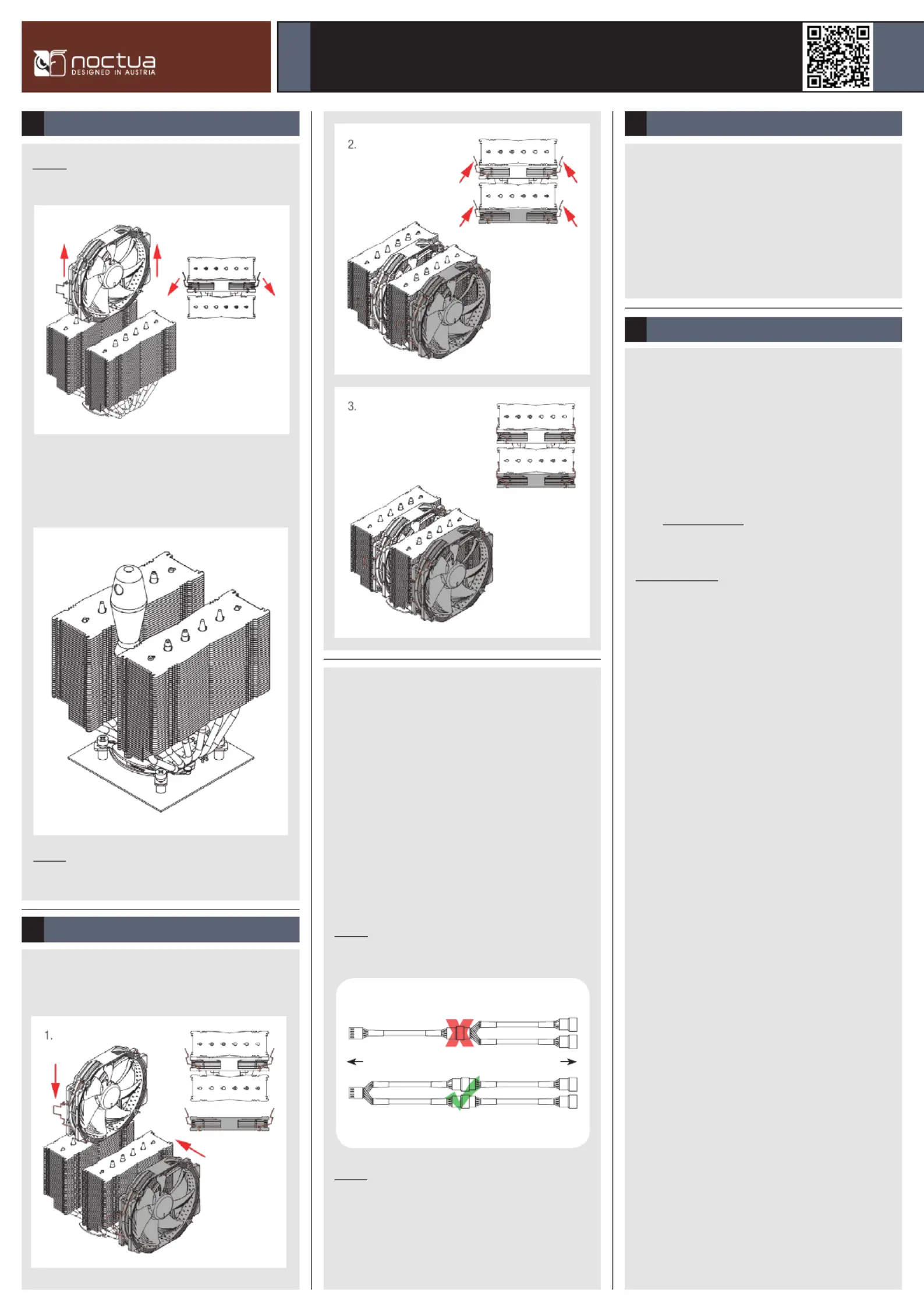

Reattach the centre fan and, optionally, install the second fan (in

grey) using the supplied steel clips:

Fan setup6

Then put the heatsink onto the CPU and screw it to the screw

threads of the mounting bars. Perform 2-3 turns on each

screw, then repeat until both are fully tightened.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force (max. torque 0.6 Nm).

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely. Therefore,

we aim at providing the highest possible level of reliability and

convenience by offering a warranty period of 6 years and

direct, fast and straightforward RMA service.

Should you encounter any problems with your NH-D15

chromax.black, please don’t hesitate to contact our support

team (support@noctua.at).

Please also consult the FAQ section on our website:

www.noctua.at/faqs.

Warranty, support and FAQs!

As it is not possible to reliably calculate or control the forces

that act upon a system during transport (e.g. in shipping), we

generally recommend, for safety reasons, taking the cooler off.

Noctua cannot be held responsible for any damage that may

arise due to excessive stress during transport if you keep the

heatsink installed.

Transporting your system!

Use the heatsink with the centre fan only in order to guarantee

best compatibility with tall RAM modules. Add the second fan

to the front n-stack for further improved cooling performance.

Connect the fan(s) to the motherboard’s CPU fan header(s). If

necessary, use the supplied NA-YC1 y-cable to connect both

fans to one fan header.

Depending on your CPU and the temperature inside the case,

you may interconnect the supplied NA-RC7 Low-Noise Adap-

tors (L.N.A.) in order to further reduce the fans’ operating noise.

Connect the fan to the motherboard’s CPU fan header.

Caution: Never use one adaptor for both fans by putting it

before the y-cable.

Motherboard Fans

Low-Noise Adaptor Y-cable

Y-cable Low-Noise Adaptors

Caution: When using the L.N.A.s, check the temperature of your

CPU using appropriate software (e.g. the respective applications

of your motherboard manufacturer), in order to evade automatic

throttling of the CPU due to the increased temperature. If the

cooling performance is insufcient, please increase case ventila-

tion or remove the L.N.A.s.

Caution: Please rst take off the centre fan as well as the

protection cover at the bottom side of the heatsink.

Fastening the heatsink to the CPU5

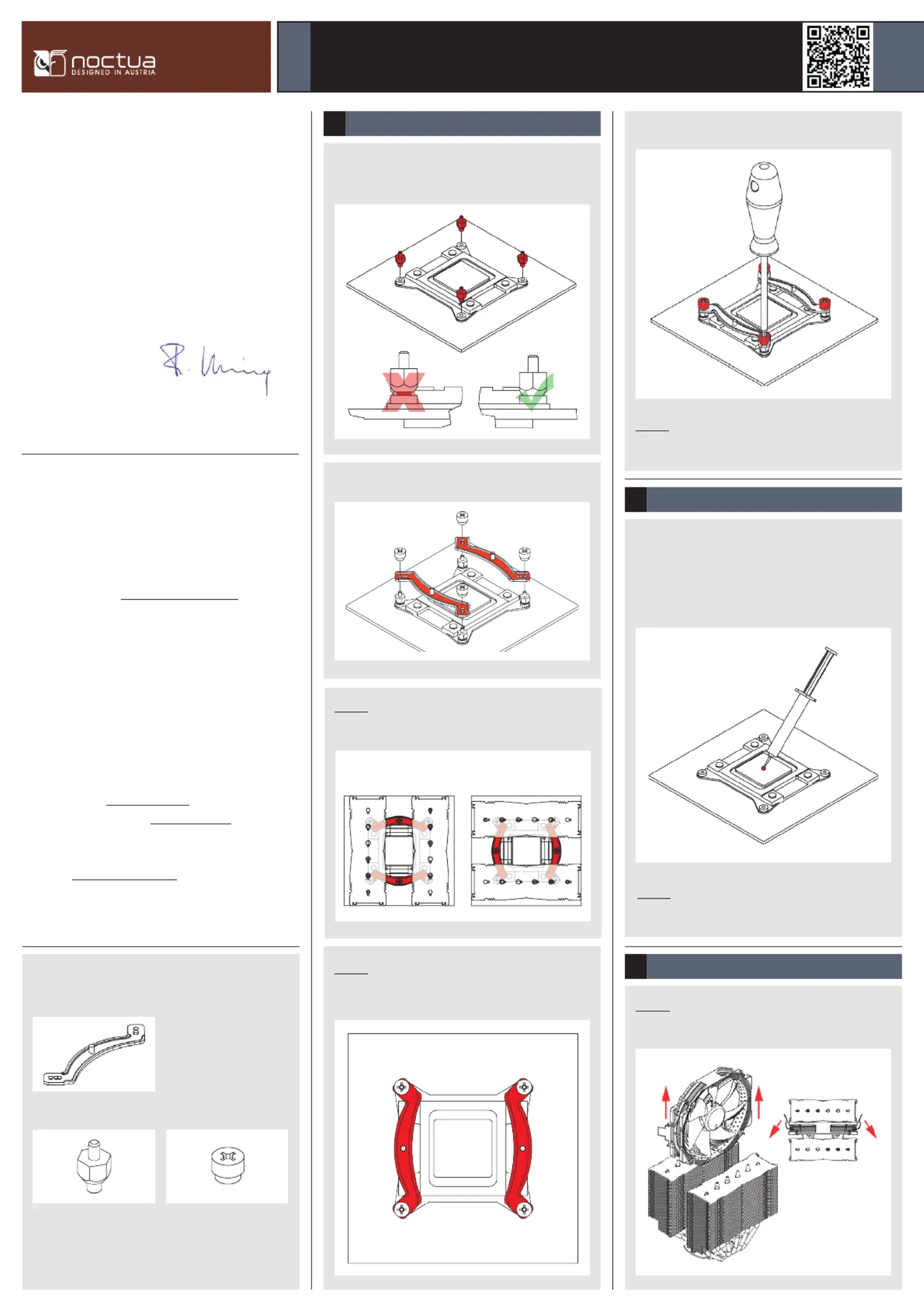

First screw the NM-IBT2 bolts into the screw threads of the

LGA20xx socket frame.

Installing the mounting bars1

Then put the NM-IMB2 mounting-bars onto the bolts.

Caution: Choose the alignment of the mounting bars according

to the desired nal orientation of the cooler:

Orientation A Orientation B

Dear customer,

Congratulations on choosing the Noctua NH-D15 chromax.

black. Built on the basis of the legendary NH-D14 and carrying

on its quest for ultimate quiet cooling performance, our agship

model NH-D15 is an elite class dual tower cooler for the highest

demands. I’m condent that you will be able to sense some of the

research, attention and care we’ve put into making this cooler.

Enjoy your NH-D15!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of

the SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility

list on our website (www.noctua.at/compatibility) and verify

that the cooler is fully compatible with your motherboard.

Please also make sure that your PC case offers sufcient

clearance for the cooler and that there are no compatibility

issues with any other components (e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make

contact with the VGA card or other PCIe cards. Noctua cannot

be held responsible for any damage or losses caused by

compatibility issues.

Should you encounter any difculties, please check the FAQs

on our website (www.noctua.at/faqs) and don’t hesitate to

contact our support team at support@noctua.at.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

Required mounting parts:

2x NM-IMB2 mounting bars

4x NM-ITS1 thumb screws4x NM-IBT2 bolts

Caution: Make sure that the curved sides of the mounting bars

are pointing outwards.

Fix the mounting bars using the 4 thumb screws.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force (max. torque 0.6 Nm).

If there are residual traces of thermal paste or thermal pads

on your CPU, please clean them off rst. Then press a small

drop (4-5mm diameter) of NT-H1 onto the centre of the

heatspreader.

Applying the thermal paste

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

NOCTUA NH-D15 chromax.black

INSTALLATION MANUAL

LGA20xx

Scan this code to display

multilingual manuals on

your phone.

Caution: Please rst take off the centre fan as well as the

protection cover at the bottom side of the heatsink.

Fastening the heatsink to the CPU3

Produktspezifikationen

Marke:	Noctua
Kategorie:	PC Kühlventilator
Modell:	NH-D15 chromax.black
Breite:	150 mm
Tiefe:	161 mm
Gewicht:	1320 g
Mitgelieferte Kabel:	Ventilator
Produktfarbe:	Schwarz
Höhe:	165 mm
Verpackungsbreite:	190 mm
Verpackungstiefe:	268 mm
Verpackungshöhe:	235 mm
Paketgewicht:	2220 g
Warentarifnummer (HS):	84733080
Typ:	Kühler
Verpackungsart:	Box
Stromversorgung:	1.56 W
Gewicht Versandkarton:	20400 g
Länge des Versandkartons:	509 mm
Breite des Versandkartons:	415 mm
Höhe des Versandkartons:	573 mm
Empfohlene Platzierung:	Prozessor
Kompatible Prozessoren:	AMD A, Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Luftstrom:	140.2 m³/h
Lüfterdurchmesser:	150 mm
Anzahl Lüfter:	2 Lüfter
Ventilator-Anschluss:	4-polig
Unterstützte Prozessorsteckplätze:	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
Maximum Luftdruck:	2.08 mmH2O
Unterstützung der Pulsweitenmodulation:	Ja
Rotationsgeschwindigkeit (min.):	300 RPM
Rotationsgeschwindigkeit (max.):	1500 RPM
Geräuschpegel (hohe Geschwindigkeit):	24.6 dB
Lagertyp:	Self-Stabilising Oil-pressure Bearing (SSO)
Nennspannung:	12 V
Grundkörper Material:	Kupfer
Heizbecken Abmessungen (W x D x H):	150 x 135 x 160 mm
Geräuschpegel mit LNA (max):	19.2 dB
Lamellenmaterial:	Aluminium
Kühlkörpergewicht:	980 g
Mittlere Zeit bis zum Ausfall (MTTF):	150000 h
Rotationsgeschwindigkeit mit LNA (max):	1200 RPM
Luftstrom mit LNA (max):	115.5 m³/h
Maximaler Luftdruck mit LNA:	1.51 mmH2O
