SL800D SUBWOOFER INSTALL GUIDE

Cut and prepare a hole to install

the SL800D into a stud bay where

it can be securely mount to both

wall studs.

Once in place the SL800D should

be tested before securely mount-

ing and moving onto step 3.

Final step, install the magnetic

grille system by simply laying it

into place.

3

Preparation:

Tools For InstallationSpeaker Wire Guide

- Pencil

- Drill

- Tape Measure

- Wire Cutter

- Phillips Screwdriver

- Utility Knife

- Safety Eye Wear

- Gloves

- Sandpaper

18AWG minimum - for distances up to …………………. 10 ft

16AWG - from …………………………………..…... 10 to 50 ft

14AWG - from …………………………………...… 50 to 100 ft

Installation:

Cut Out

NOTE: This is the most important part of the entire installation.

If you are not certain whether any obstructions exist behind the

desired mounting area, you should start by cutting a small hole in

the center of your penciled mounting hole with a drywall saw.

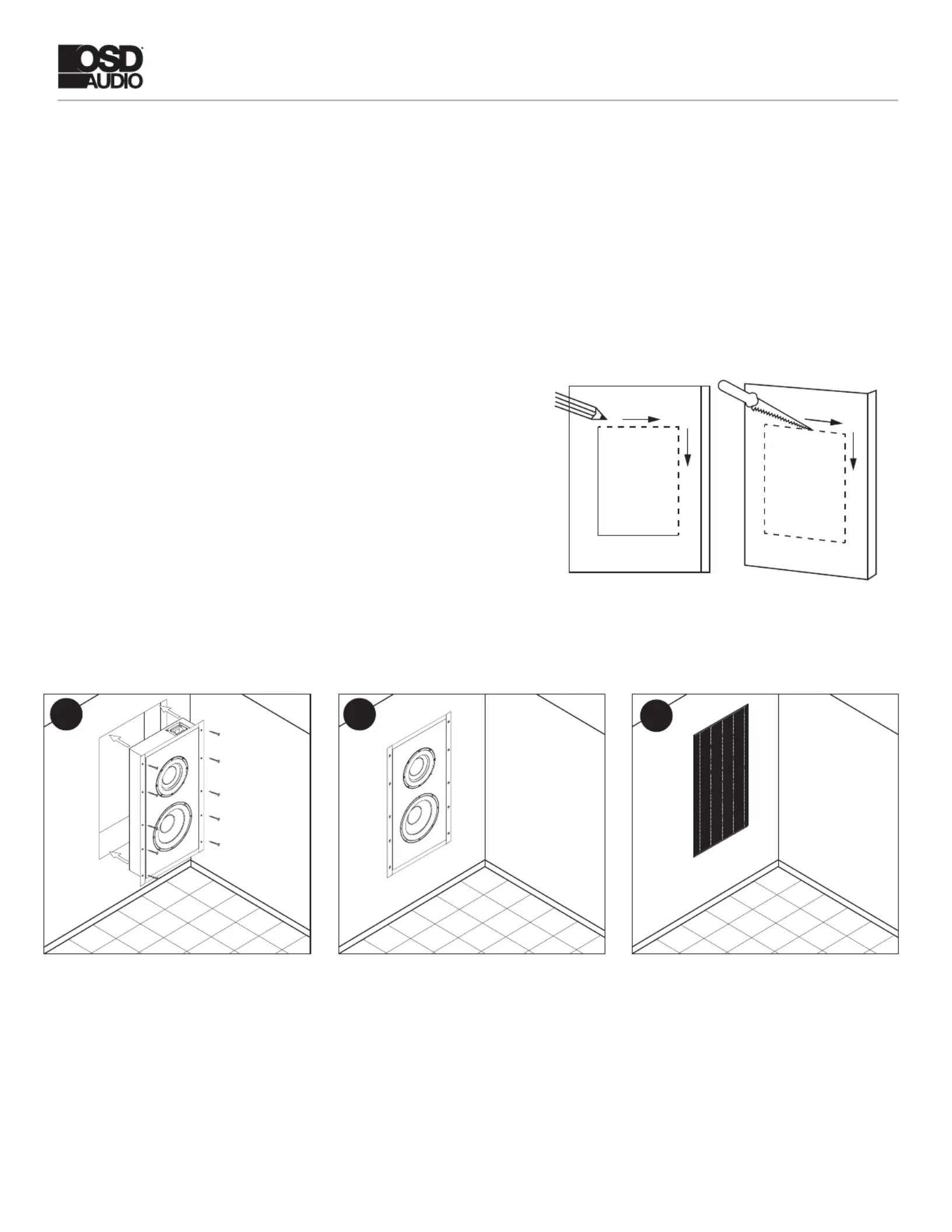

Using the Cut Out dimensions measure and trace a template on the

wall in the desired location. Cut along the traced line using a drywall

saw or rotary drill. Use a piece of sandpaper to sand down the cut out

edge for a smoother contour. (See Diagram 1.)

Diagram 1
