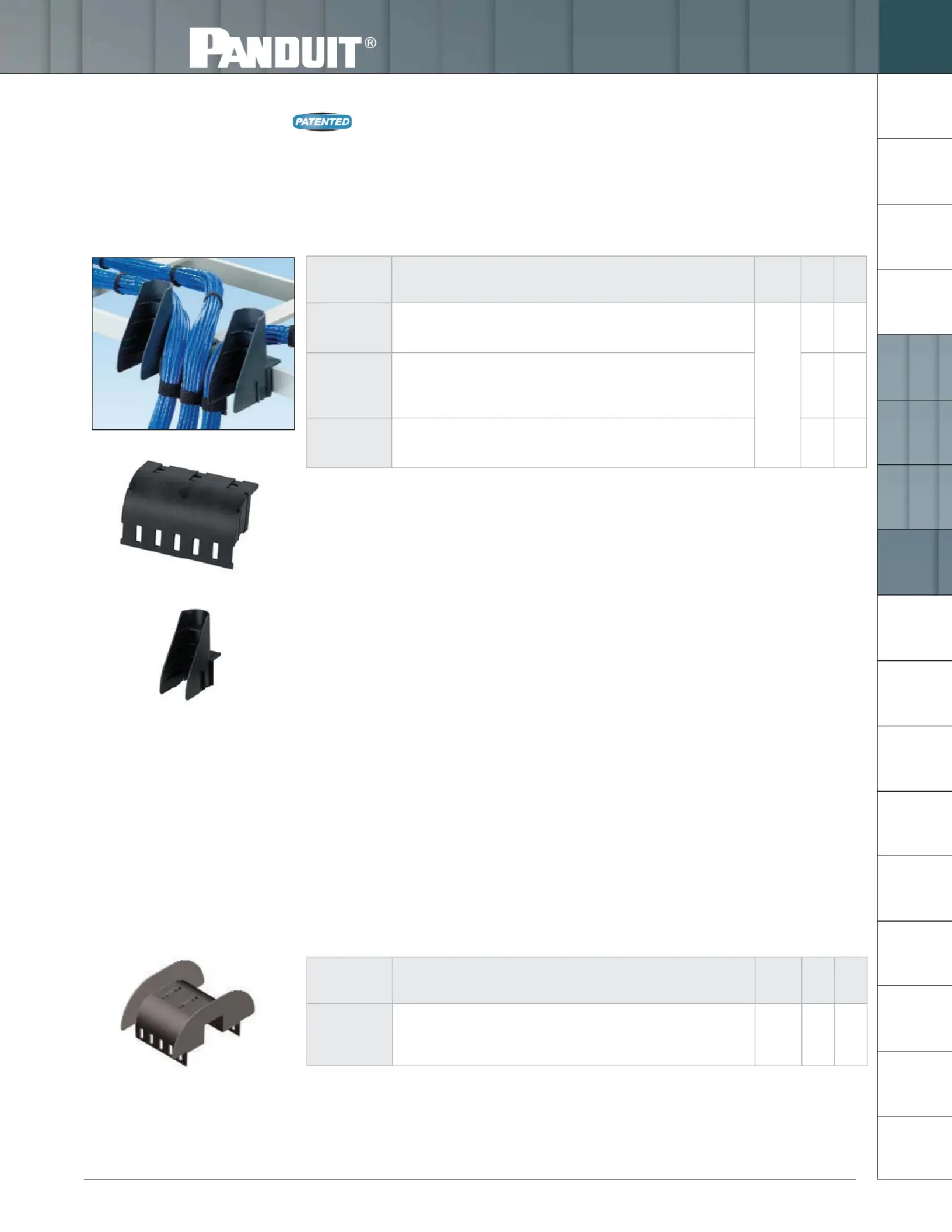

CMW-KIT

CMWB

Waterfall Accessories

• Patented bend radius control product

• Product available as a kit (includes base, two wings, and cable ties)

or purchased separately

• Easy to install waterfall kit maintains bend radius control in both

vertical and horizontal directions to provide a TIA/EIA-568-B

compliant installation

• Base attaches to either the rung or stringer on most standard

ladder racks for a variety of installations/configurations

• Modular components allow user to custom configure each location

where cable management is required

• Material: Black Glass-Filled Nylon 6.6 meets

UL 94V-0 specifications

*For white, include suffix of 10. For example: CMW-KIT10.

Part Number Part Description Color*

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

CMW-KIT

Cable management waterfall kit. Provides bend radius control

when transferring cables from standard ladder rack. Kit

includes CMWB, two CMWW, and cable ties.

Black

1 10

CMWB Cable management waterfall base. Used to maintain 1.75"

bend radius control vertically when transferring cable off of

ladder rack. Mounts to ladder rack rung or stringer with

standard cross section cable ties (included).

1 10

CMWW Cable management waterfall wing. Used in conjunction with

CMWB to maintain 1.00" bend radius control horizontally when

transferring cable off ladder rack.

1 10

CMWW

ELECTRICAL SOLUTIONS

Double Waterfall Accessory

• Double waterfall base attaches to the rung on most standard

ladder racks to allow bend radius control for cables coming from

either direction

• UL 94V-0 Rated Material

• Easy to install double waterfall base maintains bend radius

control in a vertical direction to provide a TIA/EIA-568-B

compliant installation

Part Number Part Description Color

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

CMW2B Cable management double waterfall base. Used to maintain

1.75" bend radius control vertically when transferring cable off

either side of ladder rack rung. Mounts to ladder rack rung with

standard cross section cable ties (included).

Black 1 10

Produktspezifikationen

Marke:	Panduit
Kategorie:	Nicht kategorisiert
Modell:	CMWB
Breite:	133.1 mm
Tiefe:	44.4 mm
Produktfarbe:	Schwarz
Höhe:	85.6 mm
Typ:	Kabelmanagementtafel
Menge pro Packung:	1 Stück(e)
Gehäusematerial:	Nylon
