I N S T A L L A T I O N G U I D E

Temperature & Humidity Sensors

Temperature and humidity sensors are designed to add comprehensive

environmental monitoring to any iPDU.

Environmental sensors are engineered with an embedded microchip that

converts analog signals to digital format before data travels to the PDU,

providing greater data accuracy. This smart design also enables easy plug &

play installation that takes just moments to complete. Installation of the

sensors and ongoing equipment maintenance is further facilitated by the use

of the Quick Disconnect Coupler and Ethernet cable, which allow for the

convenient extension of sensors, movement of equipment, and an easy

disconnect method for removing rack enclosure doors.

Note: The Temperature and humidity Sensors are only designed to

connect to a G5 iPDU. Connecting it to another device may result in

damage.

SPECIFICATION

Electrical

Env Temp Sensor

(EA001)

ENV Temp, Humidity

Sensor (EB001)

Env 3- Temp, 1-

Humidity

Sensor (EC001)

Operational voltage

5V DC

Measuring Range

-10~ +65°C

-10~ +65°C, 10~90RH

Accuracy

±2° C

±5% RH at 5- C 50°

10~90RH

Wire Type (From PDU to

sensor box)

CAT.5E Patch Cable, UTP

Physical

Length

2m (from PDU to sensor

box)

1m (T1/ T3 Temp probe

to sensor box)

Environmental

Maximum elevation,

Above MSL

0-10000 ft.

(o03048m)/0-50000 ft.

(0-15240m)

Temperature

(Operating/Storage)

0°C~+70°C (32 ~ 158°F)/-20~ + 70°C (-4 ~ 158°F)

Humidity

(Operating/Storage)

0 - 95%RH, non-condensing

Compliance

Environmental Verication

ROHS, WEEE

Customer Service: CS@panduit.com 800.777.3300 Technical Support: techsupport@panduit.com 866.405.6654 page 2

I N S T A L L A T I O N G U I D E

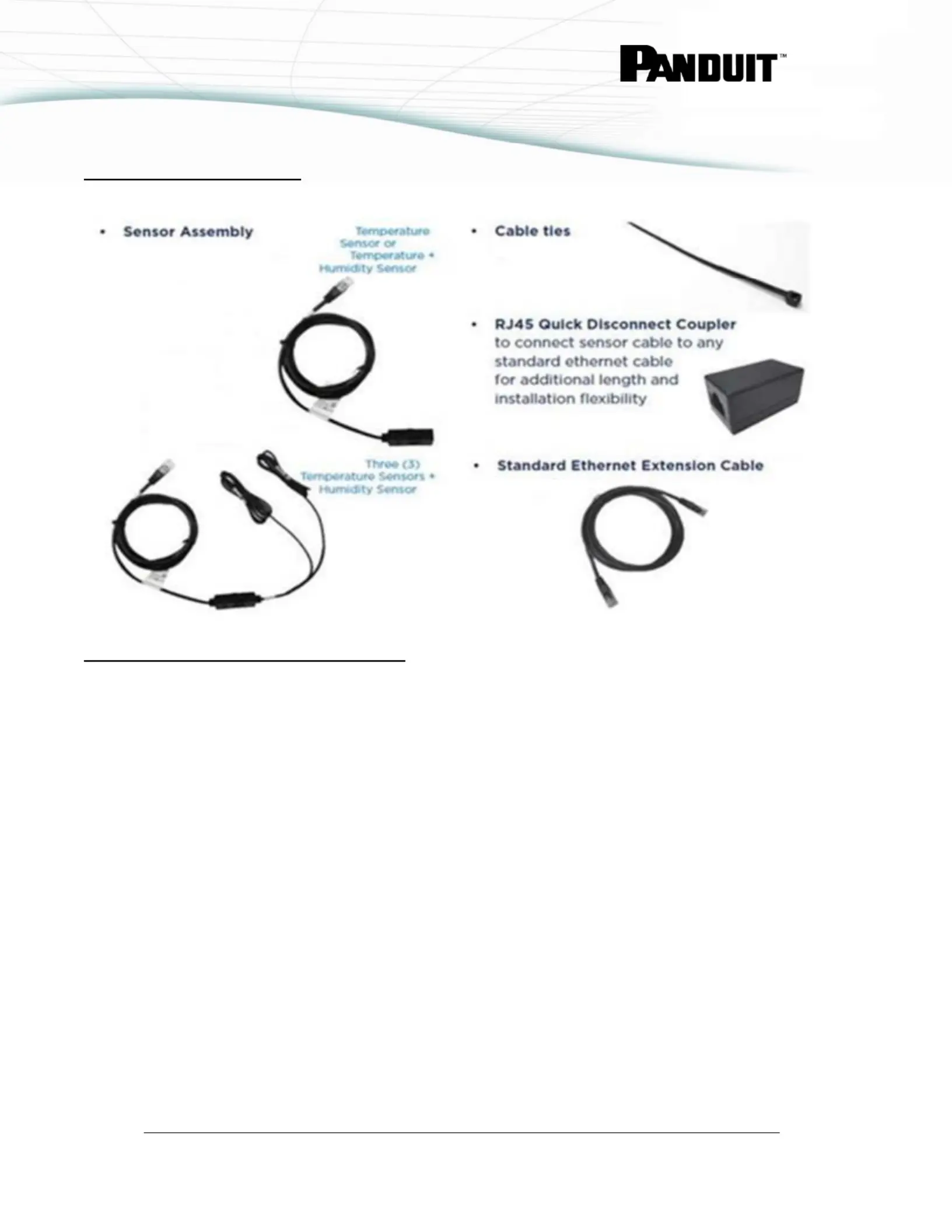

SENSOR INVENTORY

INSTALLATION INSTRUCTIONS

The following instructions apply to both the temperature and the humidity sensors.

1. Secure the sensor box to the perforated rack enclosure door by threading a cable tie through the

recessed channel in the sensor box and through the door.

Note: There are two recessed channels on the back of the sensor box, which also includes a magnet to

help secure the sensor.

2. Secure the RJ45 cable along the desired path to the PDU using the remaining cable ties.

3. For the EC001 sensors only: Secure the two additional temperature probes near the top and the

bottom of the perforated rack enclosure door using the cable ties.

4. Use the RJ45 Quick Disconnect Coupler and an Ethernet cable to extend the length of the sensor input

cable and/or to serve as an easy disconnect point for rack door removal.

Note: Use either the 1.8m Ethernet cable included with the sensor or any other CAT5 or CAT6 Ethernet

cable with a standard RJ45 plug.

5. Plug the sensor cable (or the connected Ethernet cable) into the Sensor 1 or Sensor 2 port on the

PDU or the Sensor Hub (EF001 ).

Produktspezifikationen

Marke:	Panduit
Kategorie:	Nicht kategorisiert
Modell:	EA001
Breite:	44 mm
Tiefe:	21 mm
Höhe:	11 mm
Typ:	Freistehend
Kabellänge:	2 m
Sensor-Typ:	Temperatursensor
Temperaturmessbereich:	- °C
