For Technical Support: www.panduit.com/resources/install_maintain.asp

Page 1 of 13

V00029RB

INSTALLATION INSTRUCTIONS

P RATCH UNNER

2 Enhanced Vertical Managers

Table of Contents

Description Page

Part Congurations and Contents ...................................................................................................2

Door Support Installation …………..................................................................................................3

Orientation of Vertical Manager to Rack .......................................................................................4

Installation of Vertical Manager to Rack .......................................................................................5

End of Row Bracket Condition (Optional) ..........................................................6 …………………….

Finger Installation...................................................................................................................... ....7 ....

Door Installation ............................................................................................. ...8 ...………………… ...

E IA 19” Equipment Vertical Mounting ……………………………………………………….……………9

End Panel Installation......................................................................................................................11

Other Compatible Accessories.......................................................................................... .......... 2 ... .1

Part Numbers

Style

Front/Rear

Two doors

Front Only

Single Door

Front/Rear

Single door

7ft

Tall

PE2VD06

PE2VFD06

PE2VSD06

PE2VD08

PE2VFD08

PE2VSD08

PE2VD10

PE2VFD10

PE2VSD10

PE2VD12

PE2VFD12

PE2VSD12

8ft

Tall

PE2VD0696

PE2VFD0696

PE2VSD0696

PE2VD0896

PE2VFD0896

PE2VSD0896

PE2VD1096

PE2VFD1096

PE2VSD1096

PE2VD1296

PE2VFD1296

PE2VSD1296

Add "WH" as a sux to the part numbers listed above

to identify a white part, such as PE2VD06WH

Tools required:

3mm Allen Wrench (Door Support installation)

17mm Wrench (Rack installation)

18mm Wrench (Rack installation)

5mm Allen Wrench (Optional End of Row Bracket

installation)

For Technical Support: www.panduit.com/resources/install_maintain.asp

Page 2 of 13

INSTALLATION INSTRUCTIONS

V00029RB

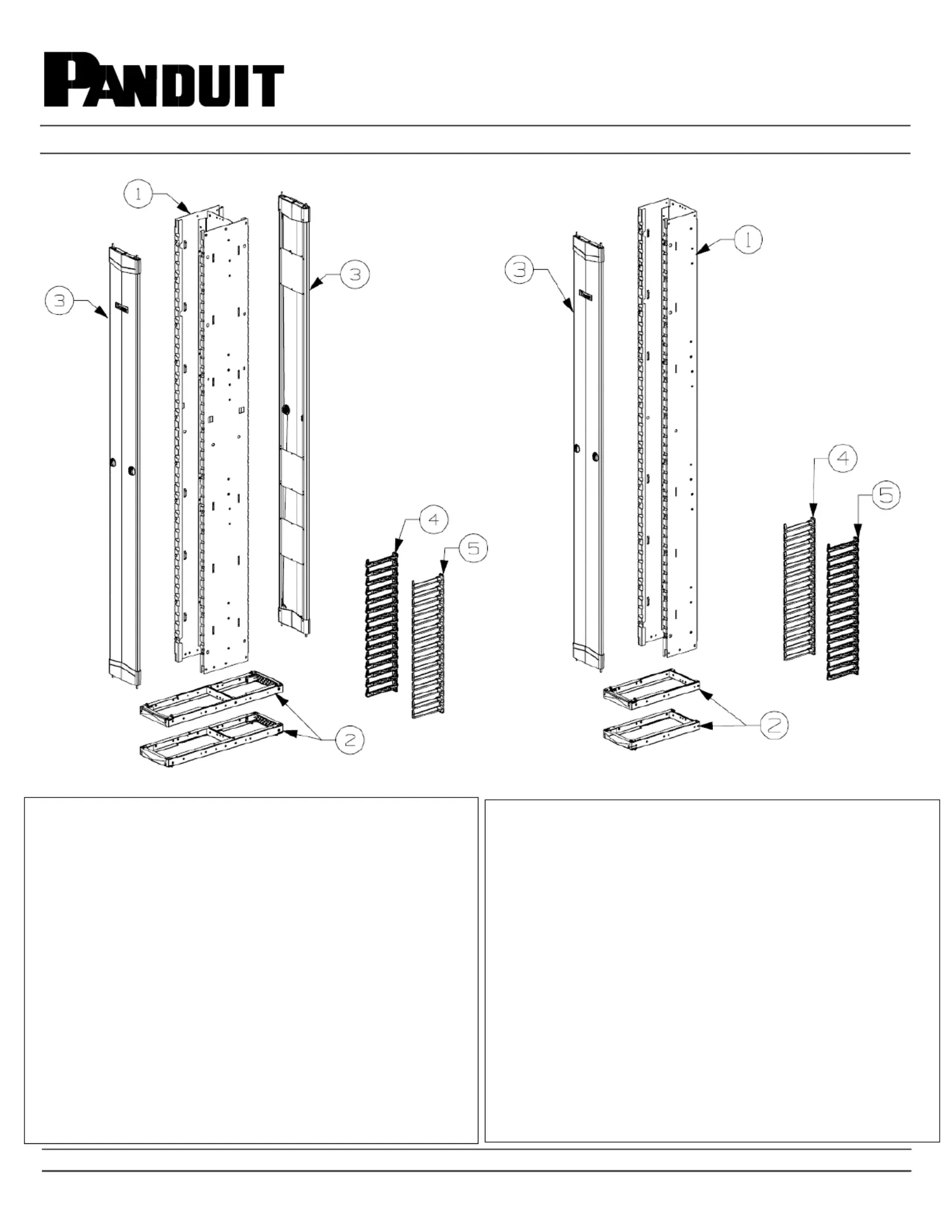

Front / Rear Assembly Contents

(1) P RATCH UNNER

2 Enhanced Vertical Cable

Manager

(2) Door Support assemblies Qty 2 –

(3) P RATCH UNNER

2 door Qty 2 –

(4) Molded cable management left finger kits

7ft Qty 6 8ft Qty 8 – –

(5) Molded cable management right nger kits

7ft Qty 6 8ft Qty 8 – –

(6) Hardware Kit (not shown)

Includes:

M12 Serrated Flange Bolts and Hex Nuts Qty 6 –

End of Row Bracket with (2) M6 Socket Head Cap

Screws

M5 Flat Head hex drive screws Qty 12 –

Front Only Assembly Contents

(1) P RATCH UNNER

2 Enhanced Vertical Cable

Manager

(2) Door Support assemblies Qty 2 –

(3) P RATCH UNNER

2 door Qty 1 –

(4) Molded cable management left nger kits

7ft Qty 3 8ft Qty 4 – –

(5) Molded cable management right nger kits

7ft Qty 3 8ft Qty 4 – –

(6) Hardware Kit (not shown)

Includes:

M12 Serrated Flange Bolts and Hex Nuts 6 –Qty

M5 Flat Head hex drive screws Qty –12

For Technical Support: www.panduit.com/resources/install_maintain.asp

Page 3 of 13

INSTALLATION INSTRUCTIONS

V00029RB

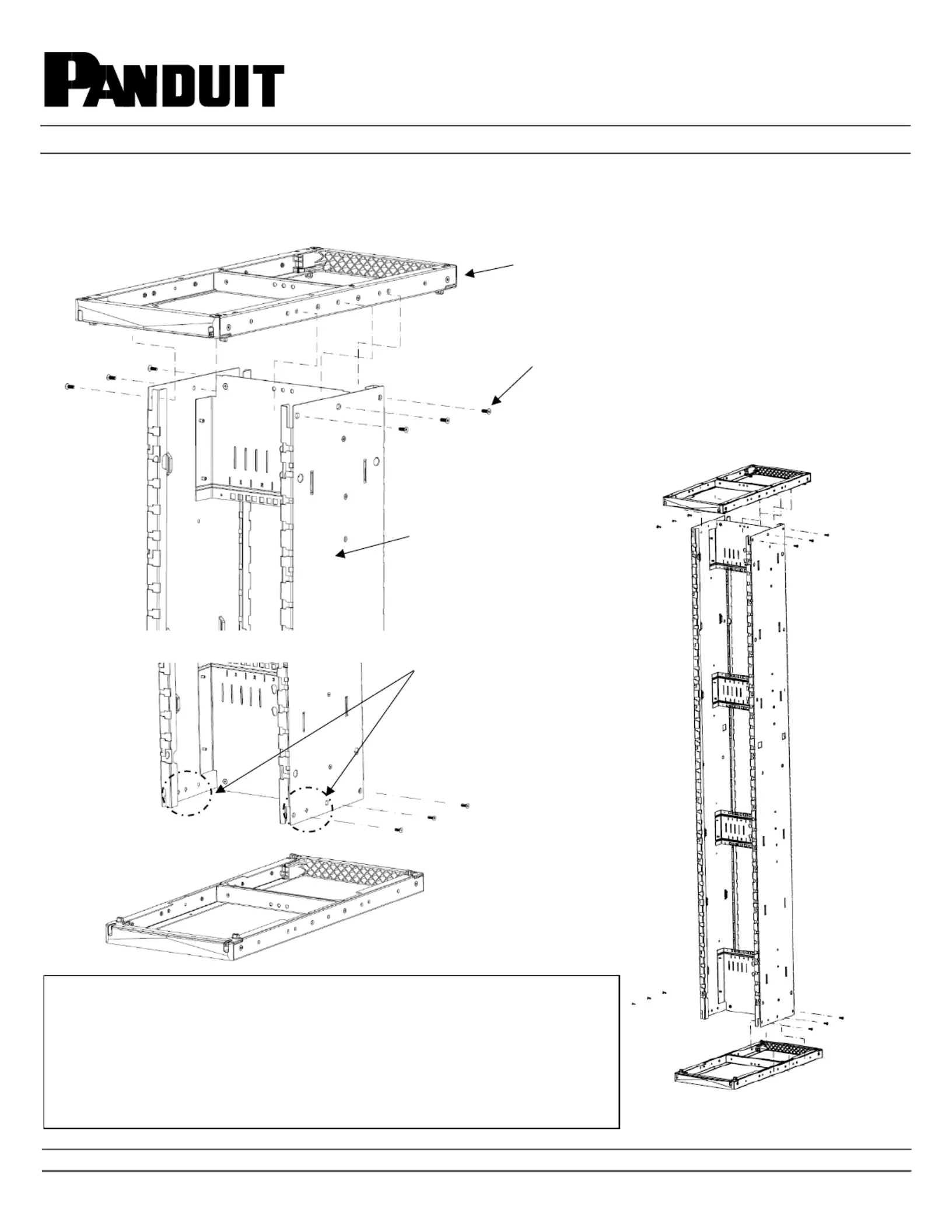

Door Support Installation

Cable manager

frame assembly

Door Support assembly (2 per

cable manager)

M5 at head screws, use a 3mm hex

allen wrench to secure in place at the

top and bottom of the manager

frame.

Bottom of the assembly is

indicated by the diamond

shaped cutouts on the cable

manager side panels.

NOTE:

The Door Support assembly slides vertically into place in the cable

manager. Orientate so that the 40/60 open areas match as shown

on the next page and align mount holes. The bottom of the

vertical cable manager assembly is identied by the diamond

shaped cutouts at the lower edge of the side panels.
