Quality Guarantee:

Should this reel fail to perform satisfactorily due to defect or poor workmanship within one year of purchase, return

it to your place of purchase and it will be replaced or repaired free of charge. Incidental or consequential damages

are excluded from this warranty.

CT6050LNCT8050LN CT6050HN

CT6100LN CT8100LN CT6100HN

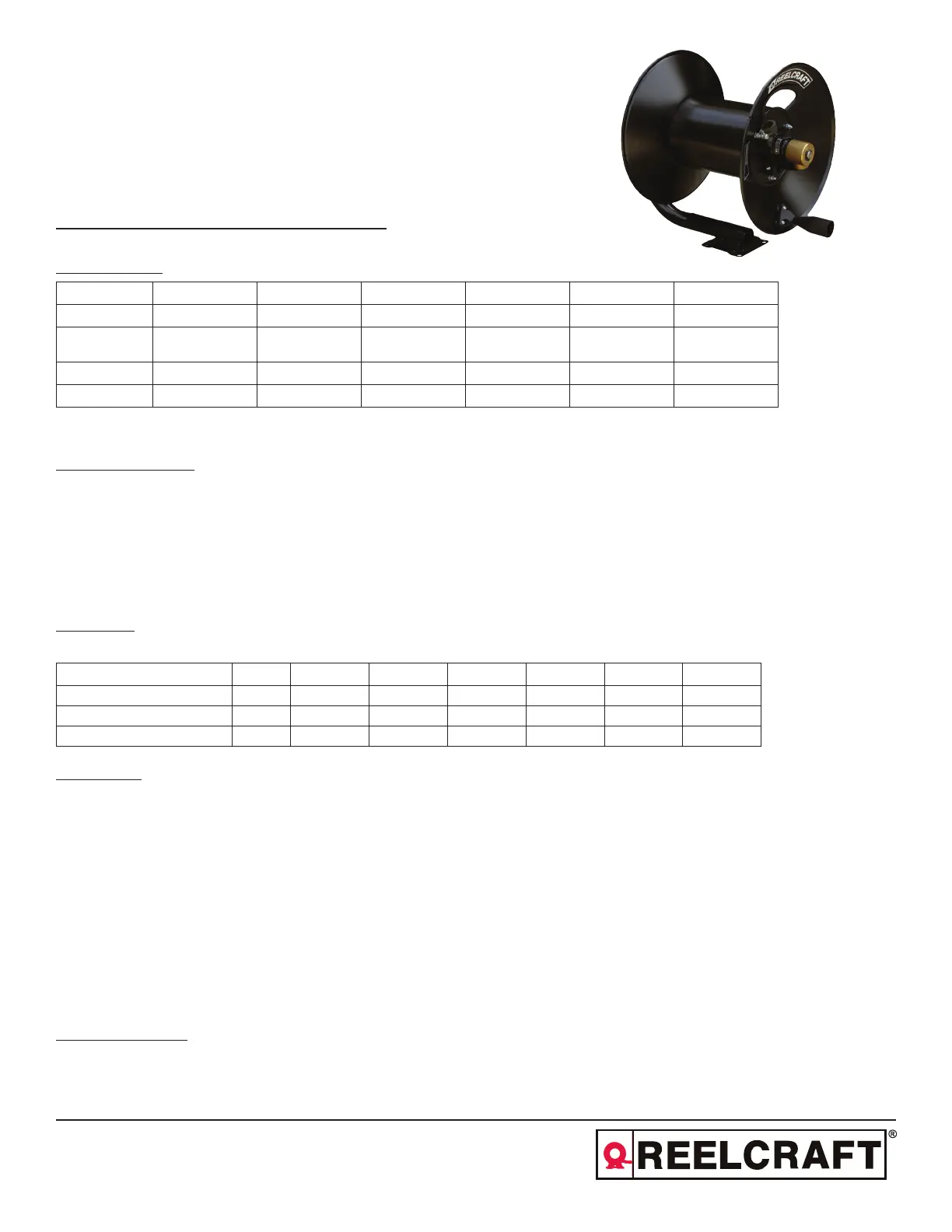

Operating Instructions

Series CT Air/Water Hose Reels

Model Numbers:

Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725

Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605

Customer Service: 855-634-9109 • [email protected] • www.reelcraft.com

Form# 1210-710 Rev: 7/2018

Read the following precautions and instructions before you begin assembly or use. Keep this literature in a dry place for future reference.

Safety Precautions:

1. Make sure incoming pressure does not exceed maximum working pressure rating of the reel.

2. Use the proper eye protection when assembling and using the hose reel.

3. Assemble the hose reel on a clean workbench free of debris and moisture.

4. Use soap and water when checking for air leaks.

5. Do not expose fingers or hands directly to a pressurized air hose or it will result in bodily injury.

6. Keep children away from the work area.

Unpacking:

When you receive your new reel, it will be mostly assembled. Check to ensure that you have received the following parts:

Installation:

Note: You must purchase hardware and hose for mounting your new reel. Decide where you wish to mount reel before purchasing as the

hardware needed will vary provided different locations.

1. Match handle to the link lever and attach using handle assembly.

2. Apply teflon tape or pipe compound to swivel valve then thread the valve into the reel.

3. Put the bolts (3/8” or 10mm) through 4 holes in the base of the hose reel and tighten it to ceiling/wall/floor so reel can be fastened

into compressor.

4. Apply teflon tape or thread sealant to reel’s built in supply hose fitting. Then attach this supply hose to the outlet of air compressor.

5. Apply teflon tape or thread sealant to hose fitting threads. Attach to the reel swivel valve, then feed the rest of hose through the flange

opening.

6. To avoid damaging the swivel valve, make sure to use an appropriate wrench to stabilize the swivel and hosing tightening the hose

fitting.

Specifications:

CT6050LNCT6100LNCT8050LNCT8100LNCT6050HNCT6100HN

Capacity50’ x 3/8”100’ x 3/8”50’ x 1/2”100’ x 1/2”50’ x 3/8”100’ x 3/8”

Reel Inlet

1/2” Carbon Steel

Nickel Plate

1/2” Carbon Steel

Nickel Plate

1/2” Carbon Steel

Nickel Plate

1/2” Carbon Steel

Nickel Plate

1/2” Stainless

Steel

1/2” Stainless

Steel

Hose Outlet1/2” Brass NPT1/2” Brass NPT1/2” Brass NPT1/2” Brass NPT3/8” Brass NPT3/8” Brass NPT

Max Pressure300 PSI300 PSI300 PSI300 PSI5000 PSI5000 PSI

DescriptionQuantityCT6050LNCT6100LNCT8050LNCT8100LNCT6050HNCT6100HN

Swivel Assembly Replacement1602708602708602708602708602425602425

Crank Handle1602426602426602426602426602426602426

Replacement Clip1262655262655262655262655262655262655
