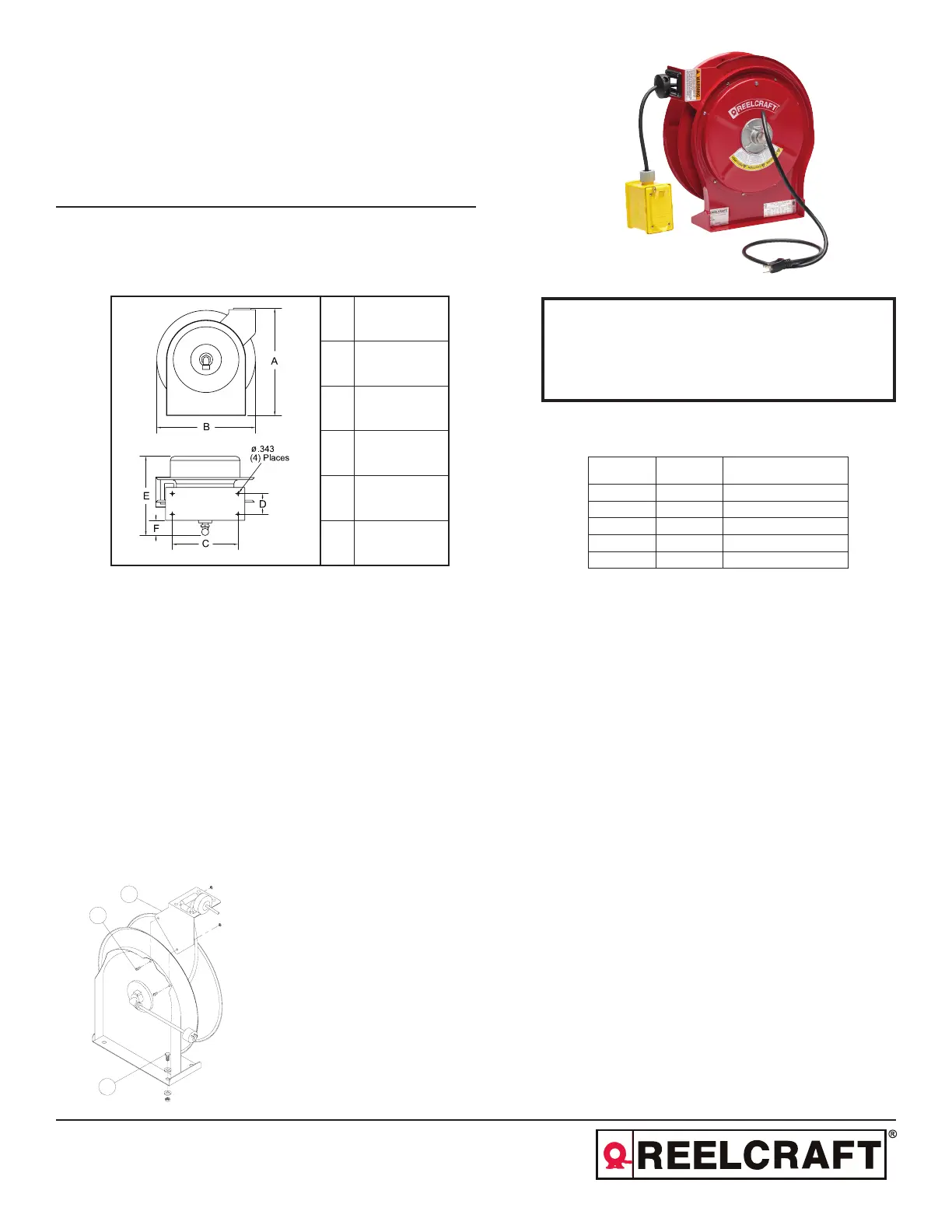

Operating Instructions

Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725

Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605

Customer Service: 855-634-9109 • [email protected] • www.reelcraft.com

Series L 5000 Spring Driven Cord Reels

Read this manual carefully before installing,

operating or servicing this equipment.

IMPORTANT

Form# 565-291 Rev: 9/2023

VoltageAMPSFrequency

1251360 HZ Single Phase

1251560 HZ Single Phase

6001660 HZ Single Phase

1252060 HZ Single Phase

1253060 HZ Single Phase

Electrical Information

L 5550 123 3L 5550 123 3BL 5550 123 7AL 5550 123 X

L 5550 123 3AL 5550 123 7L 5550 123 7QL 5550 124 X

Dimensions - Size Index

A17 5/8”

B16 3/4”

C9 3/4”

D2 1/2”

E10 1/2”

F2 1/8”

Personal injury and/or equipment damage may

result if proper safety precautions are not

observed.

• Ensure that only a qualified electrician

installs/services this equipment.

• Ensure that power supply voltage does not

exceed maximum voltage rating of reel.

• Ensure that reel is properly installed before

connecting to power supply.

• All cord reels with flying leads must be hard

wired to ensure proper function.

• Ensure that all electrical power is removed

from reel before servicing.

• A high-tension spring assembly is

contained within the reel. Exercise extreme

caution.

• Check for frayed and/or broken wires before

each use. Pull electrical cord from reel by

grasping the electrical cord itself, not the

work device.

• If an electrical malfunction should occur,

remove power from reel immediately.

• Ensure that reel, electrical cord, and

equipment being serviced are properly

grounded. Use an ohmmeter to check

ground continuity.

• If reel ceases to unwind or rewind, remove

power immediately. Do not pull or jerk on

electrical cord!

• Treat and respect the reel as any other piece

of machinery, observing all common safety

practices.

Mounting

CAUTION: Unless reel was specified differently

when ordering, maximum installation height

is 16 feet. Do not exceed this distance. Ensure

that only a qualified electrician installs/services

this equipment. Installation of GFCI cord reels

should be performed by a qualified and licensed

professional in accordance with building codes

and applicable NEC standards.

1. Unpack and inspect reel for damage. Turn

by hand to check for smooth operation.

Check for completeness.

2. Configure reel for top, side or bottom-

wind (bottom-wind for constant tension

reels only) electrical cord dispensing by

removing bolts (1), securing guide arm

bracket (2). Determine new guide arm

location and remove corresponding bolts.

Position guide arm bracket to reel and

replace bolts.

3. Position reel on floor, wall, or ceiling.

Secure into place, using four (customer

supplied) screws or bolts (3).

1

2

3

Safety Precautions

Installation Instructions
