WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRI

WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRI

WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRI

WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRIWE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.

CIAN.

CIAN.

CIAN. CIAN.

These instructions are provided for your safety. It is very important that they are read completely before

beginning the installation of your fixture.

ASSEMBLY INSTRUC

ASSEMBLY INSTRUC

ASSEMBLY INSTRUC

ASSEMBLY INSTRUCASSEMBLY INSTRUCT

T

T

TTION:

ION:

ION:

ION:ION:

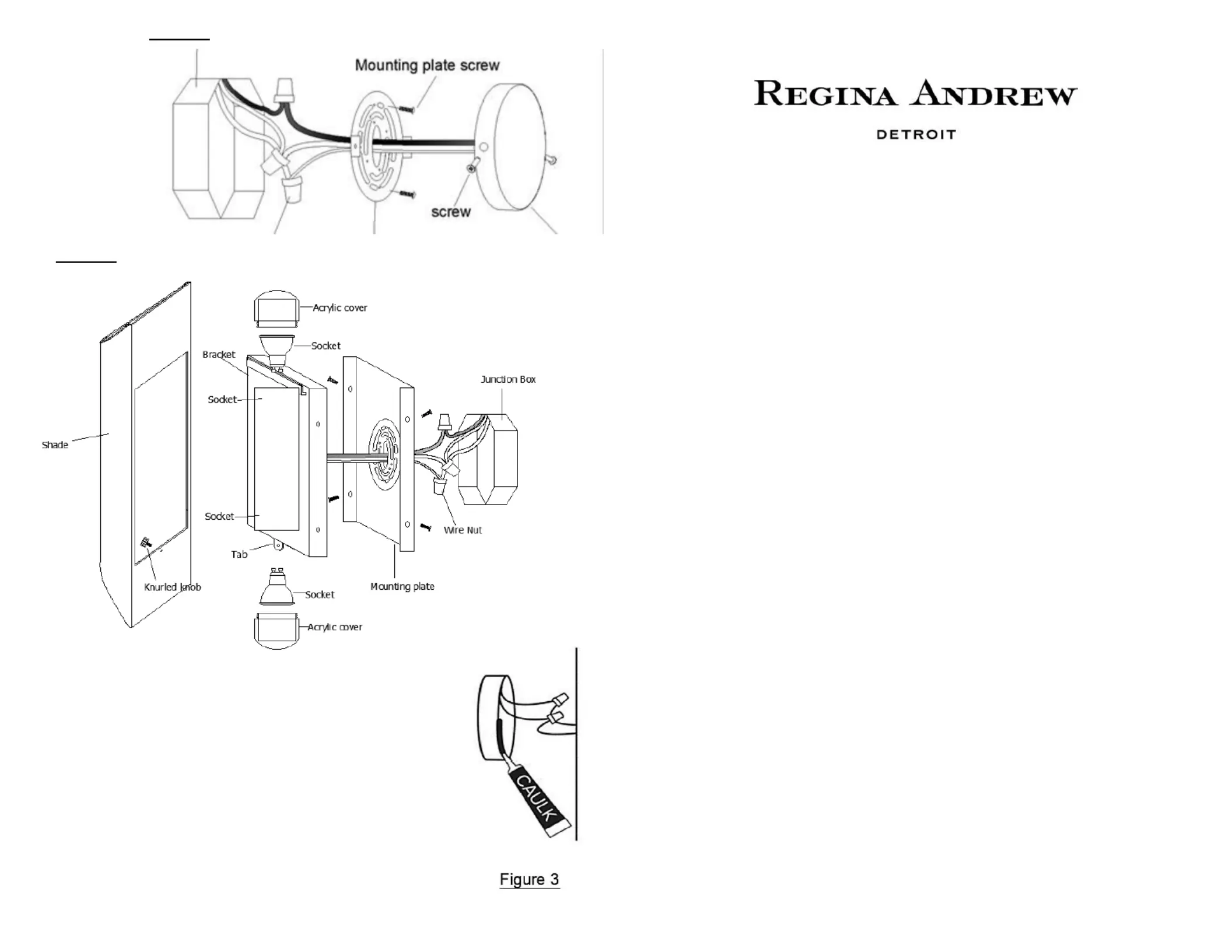

A. FOR WIRING DIRECTLY INTO OUTLET BOX (Figure 1)

1. Remove steel retainer from lamp back plate by removing the attachment screws

on the side of the backplate and attach the retainer to the outlet (junction) box.

Adjust the retainer so that the tabs on the side are level.

2.box Connect the wires of lamp to the wires of outlet box; a. black outlet--wire to

black or smooth lamp wire; b. white outlet--wire to black or smooth lamp wire; box

c. bare “grounding” outlet--wire to green wire. box

3. Install lamp to the steel retainer using four at-screws. head

B. SHADE ASSEMBLY (Figure 2)

1. Hang the shade onto the bracket at top of backplate. Tighten with the knurled knob

against the tab below the backplate.

2. Unscrew acrylic covers. Insert appropriately rated bulbs (bulbs included) into the

sockets and put back the acrylic cover.

3. For any maintenance or checking electrical connection needed, plse ofasea

remove the shade before the maintenance or inspection is taken.

MOUNTING FIXTURE(S) OUTDOOR AND/OR IN A WET LOCATION INSTRUCTION (Figure 3)

1. Mounting surface should be clean, dry, flat and ¼” larger than the canopy/fixture base

on all sides. Any gaps larger than 3/16” should be corrected.

2. With a silicone caulking compound (not included), caulk completely around where the

back of the canopy/back plate meets the wall surface.

CAUTION:

CAUTION:

CAUTION:

CAUTION: CAUTION: FAILURE TO COMPLETELY CAULK AROUND THE LIGHT FIXTURE’S

MOUNTING PLATE COULD RESULT IN WATER SEEPAGE INTO THE LIGHT FIXTURE

AND/OR JUNCTION BOX.

Made in China

Made in China

Made in China

Made in ChinaMade in China
