I-4 TEM NO: 17101
Augustine Outdoor Pendant Large
CAREFULLY INSPECT THE ITEM BEFORE INSTALLATION.
WE STRONGLY RECOMMEND THE ITEM BE INSTALLED .BY A LICENSED ELECTRICIAN
These instructions are provided for your safety. It is very important that they are read completely
before beginning the installation of your fixture.

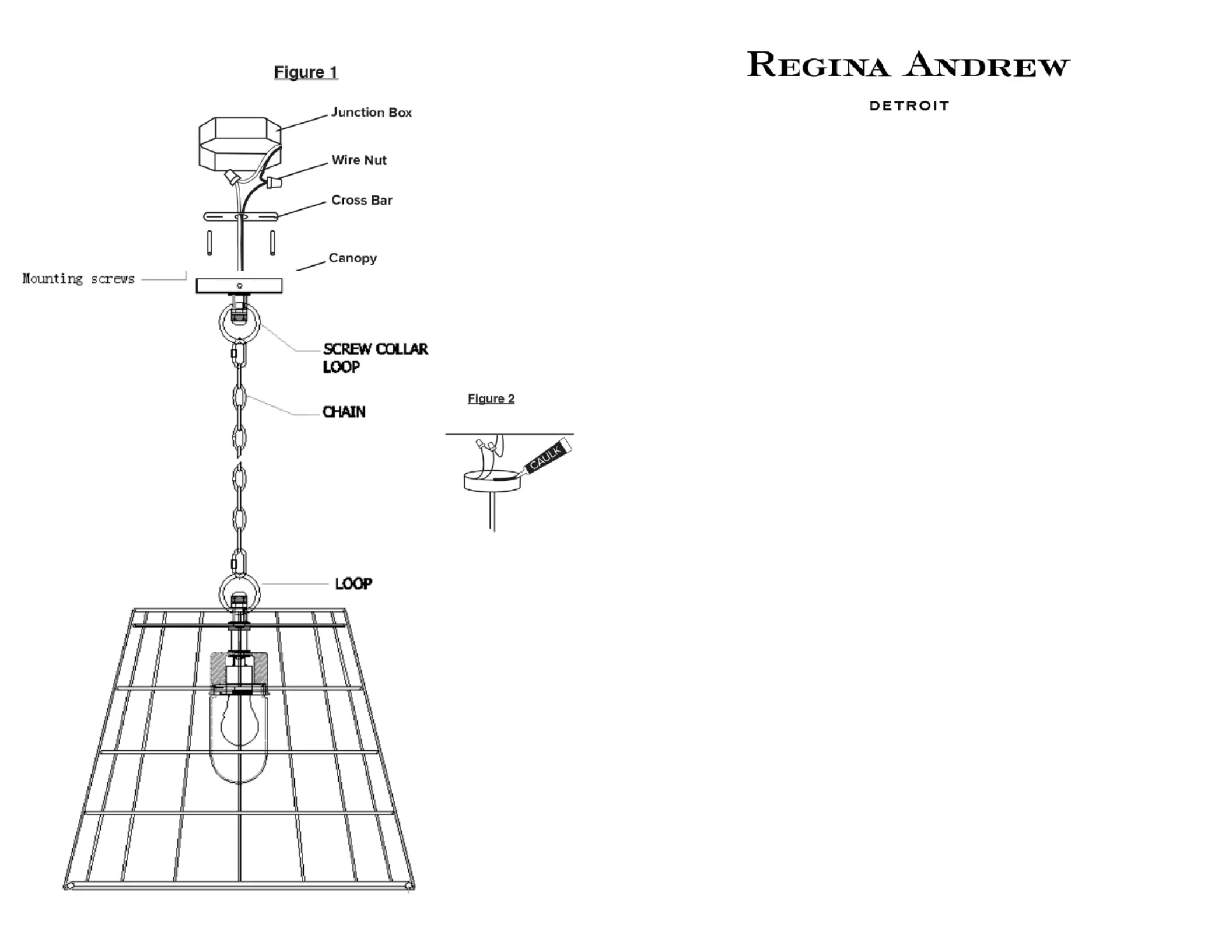

ASSEMBLY INSTRUCTION:FOR WIRING DIRECTLY INTO THE JUNCTION BOX
1.Turn off the breaker to the junction box at the electrical panel.
2.Inspect all parts and inventory, making sure to check all sides of the packaging for
additional parts.
3.Determine the desired height of the fixture and assemble the appropriate amount of
extension rods and/ or chain.
4.Trim the electrical cords to length, making sure to leave an extra 6-10 inches to make
all connections.
5.Install the crossbar with the attached screw collar loop onto the junction box with the
included machine screws.
6.Carefully slide the screw collar, followed by the canopy through all electrical, extension
tubes and/ or chain.
7.Support the fixture to the screw collar loop using the included quick links.
8.Run all electrical through the screw collar loop into the junction box. Attach ground wire
from fixture to ground wire from junction box. Fasten wires together withwire nut and
tightly wrap connection with electrical tape. Attach hot wire from fixture (black color or
smooth side of wire) to hot wire from junction box.Fasten wires together with wire nut
and tightly wrap connection with electrical tape. Attach neutral wire from fixture (white
in color or ribbed side of wire) to neutral wire fromjunction box. Fasten wires together
with wire nut and tightly wrap connection with electrical tape. Carefully push wire
connections back into ceiling junction box.
9.Carefully slide the canopy up over any extensions and / or chain and secure it to the
ceiling by threading the screw collar onto the screw collar loop.
10.Assemble all additional decorative parts and bulbs.
11.Turn the breaker to the junction box back on and enjoy.
MOUNTING FIXTURE(S) OUTDOOR AND/OR IN A WET LOCATION INSTRUCTION
1.Mounting surface should be clean, dry, flat and ” larger than the canopy/fixture base ¼
on all sides. Any gaps larger than 3/16” should be corrected.
2.With a silicone caulking compound (not included), caulk completely around where the
back of the canopy/back plate meets the wall surface.
CAUTION: FAILURE TO COMPLETELY CAULK AROUND THE LIGHT FIXTURE’S
MOUNTING PLATE COULD RESULT IN WATER SEEPAGE INTO THE LIGHT FIXTURE
AND/OR JUNCTION BOX.
Made in China
Produktspezifikationen
| Marke: | Regina Andrew |
| Kategorie: | Beleuchtung |
| Modell: | Augustine 17-1014 |
