ITEM NO: 17-1032
ITEM NO: 17-1032
ITEM NO: 17-1032
ITEM NO: 17-1032 ITEM NO: 17-1032
Montecito Double A
Montecito Double A
Montecito Double A
Montecito Double AMontecito Double Arm Outdoor Sconce
rm Outdoor Sconce
rm Outdoor Sconce
rm Outdoor Sconcerm Outdoor Sconce
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.
These instructions are provided for your safety. It is very important that they are read completely before
beginning the installation of your fixture.
ASSEMBLY I
ASSEMBLY I
ASSEMBLY I
ASSEMBLY IASSEMBLY INSTRUCTION:
NSTRUCTION:
NSTRUCTION:
NSTRUCTION:NSTRUCTION:

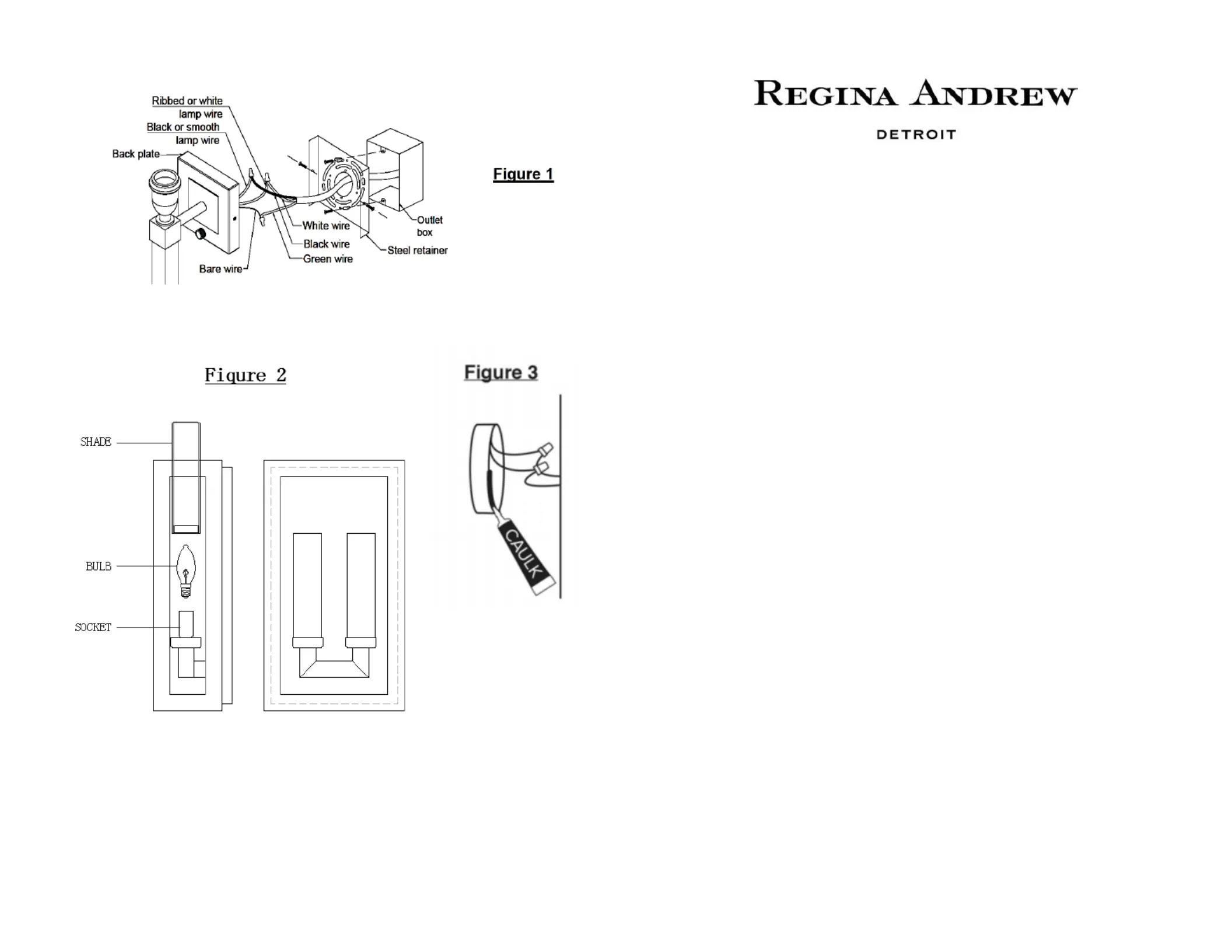

A. FOR WIRING DIRECTLY INTO OUTLET BOX (Figure 1)
1. Remove steel retainer from lamp back plate by removing the attachment screws
on the side of the backplate and attach the retainer to the outlet (junction) box.
Adjust the retainer so that the tabs on the side are level.
2. Connect the wires of lamp to the wires of outlet box; a. black outlet--wire to box
black or smooth lamp wire; b. white outlet--wire to black or smooth lamp wire; box
c. bare “grounding” outlet--wire to green wire. box
3. Install lamp to the steel retainer using two at-head screws.
B. FOR ADDING THE SHADE AND BULB (Figure 2)
1. Unscrew the glass shade.
2Insert appropriately rated bulb into the socket. .
3. Screw on glass shade.
MOUNTING FIXTURE(S) OUTDOOR AND/OR IN A WET LOCATION INSTRUCTION
1.Mounting surface should be clean, dry, flat and ¼” larger than the canopy/fixture base on all
sides. Any gaps larger than 3/16” should be corrected.
2.With a silicone caulking compound (not included), caulk completely around where the back
of the canopy/back plate meets the wall surface.
CAUTION:
CAUTION:
CAUTION:
CAUTION: CAUTION: FAILURE TO COMPLETELY CAULK AROUND THE LIGHT FIXTURE’S MOUNTING
PLATE COULD RESULT IN WATER SEEPAGE INTO THE LIGHT FIXTURE AND/OR JUNCTION
BOX.
Made in China
Made in China
Made in China
Made in ChinaMade in China
