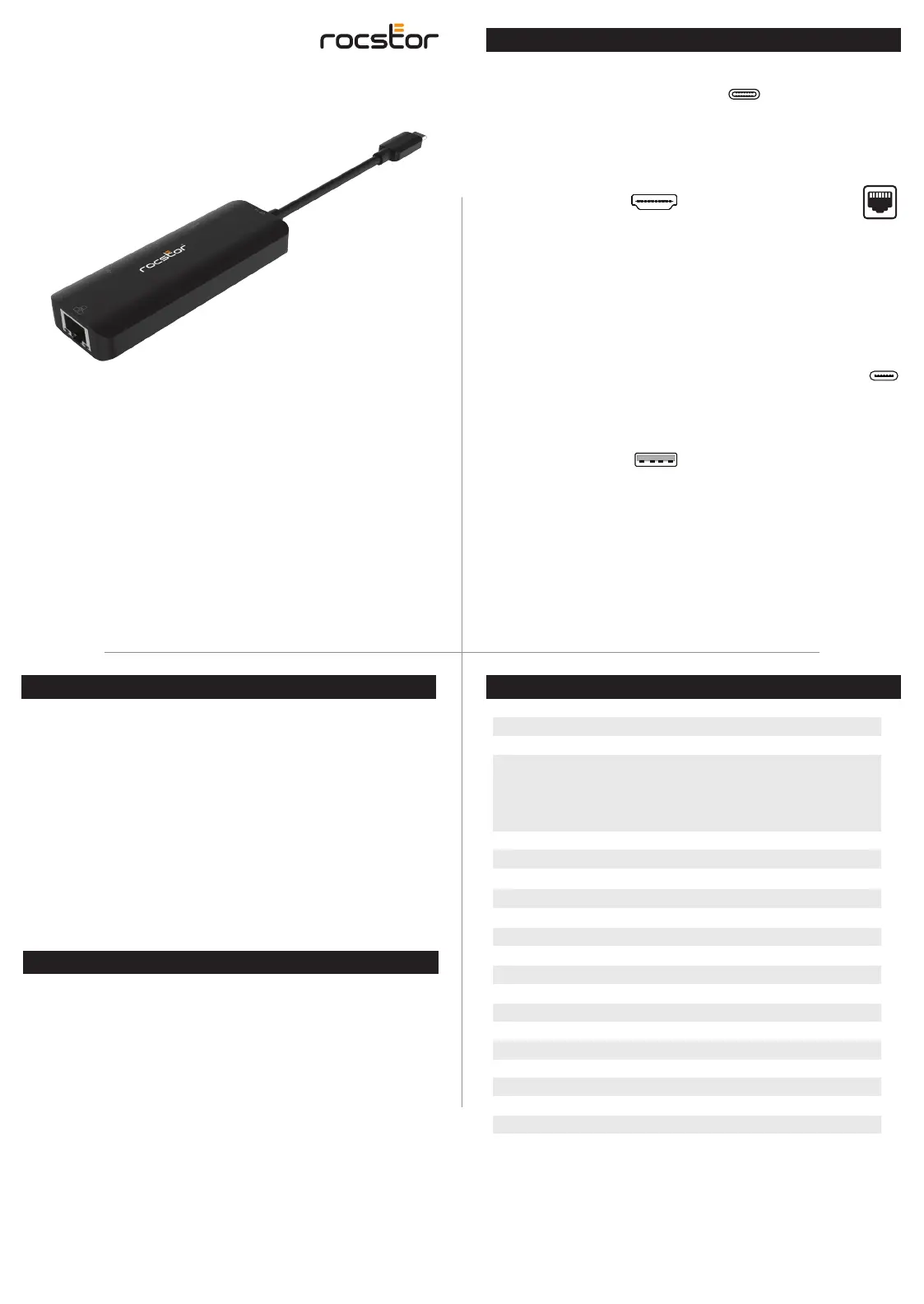

Rocstor Y10A307-B1 Bedienungsanleitung
Seiten 2 USB-Hub
Lies die Bedienungsanleitung für Rocstor Y10A307-B1 kostenlos online oder lade das PDF herunter. 11 Personen fanden diese Anleitung hilfreich. Frage zu diesem Modell? Stelle eine Frage
Features
USB Type-C Male (Connect to a host computer)
Rocstor introduces Type-C 4-in-1 hub: Featuring HDMI, USB-A, RJ45, and a Type-C
female port, oering an optimal solution for expanding the port options of
Type-C/Thunderbolt 3 hosts (PC/Laptop/Mobile phone, etc.), especially benecial for
those with a single Type-C port. Equipped with the latest DP1.4 Alt mode supported
IC, this hub enables HDMI video output at a maximum resolution of 4k/60Hz while
simultaneously transferring USB 3.1 data at a maximum speed of 5Gbps. The RJ45 port
facilitates access to super-fast Ethernet networks for the host. Additionally, the Type-C
female port supports PD 3.0 with a maximum power delivery of 100W when
connected to a PD Adapter and facilitates data transmission at a maximum speed of
5Gbps when connected to a Type-C device. Compatible with all DP Alt mode
supported Type-C hosts, this hub ensures seamless compatibility and enhanced
functionality.
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the packaging:
• Main Unit x1
• User Manual
HDMI
• Supports HDMI max 4K/60Hz， 4：4：4,
8bit with 18Gbps Bandwidth
• Supports 6/8/10/12 bit color depth
output
• Supports output pixel format
RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2
• Supports HDCP 2.2&HDCP1.4
• Supports HDR
Note:When connecting a DP1.4 Alt mode
supported host, the max resolution of
HDMI is 4k/60Hz; When connecting a
DP1.2 Alt mode supported host, the max
resolution of HDMI is 4k/30Hz due to
bandwidth limitation
Upstream:
Downstream:
• Supports DP1.4 Alt mode, downward compatible with DP1.2 Alt mode
Note:To get max bandwidth, the host should support DP1.4 Alt mode with DSC format
USB-A X1
• Support max 7.5W([email protected])
downstream charging
• Max 5Gbps bandwidth
RJ45 X1
• Supports Gigabit
Ethernet,10M/100M/1000M
• Supports Wake-On-LAN
• Supports full duplex ow control
• Light indicates the state, no
light when no Internet connected,
orange light turns on when network
connection is established, yellow light
ashes when transmitting data
Type-C Female X1
(for PD Charging & Data)
When connecting a PD Adapter:
• Support PD Charging 100W (20V/5A)
• Support Fast Role Swap of PD 3.0, the
connected device will not get
disconnected while plugging in and out
PD Adapter
• 7.5W is dedicated to the functioning of
this product, the rest power (max 92.5W)
will be passed to charge for the host
When connecting a Type-C device:
• Max 5Gbps data transfer
• Max 7.5w(5V/1.5A) downstream charging
• Share max 7.5W downstream charging
with USB-A port
Package Contents
Specication
Input
OutputHDMI Female p1-x1
USB-A Female x1
RJ45 x1
Type-C Female p1-x1 (PD & Data)
USB-C Male x1
3 Years
Operating Temperature
Storage Humidity
Storage Temperature
Operating Humidity
0°C to 45°C (32°F to 113°F)
10% to 90 % RH (no condensation)
-10°C to 70°C (14°F to 158°F)
10% to 90% RH (no condensation)
Introduction
Environmental
Input / Output Connector
CerticationsFCC, CE
Regulatory Approvals
User ManualEnglish Version
Accessory Adapter
Warranty
Limited Warranty
Operating Temperature
Operating Temperature
Size
0°C to 45°C (32°F to 113°F)
4.3x1.9x0.6in - (110x50x16.2mm)
Mechanical
Weight2.4lbs - (75g)
Power Supply
100W(20V/5A)USB-C PD Charging Port
®
Type-C to HDMI/USB-A/RJ45/Type-C Female(PD&Data)
with DP1.4 Alt mode
User Manual
Y10A307-B1
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
