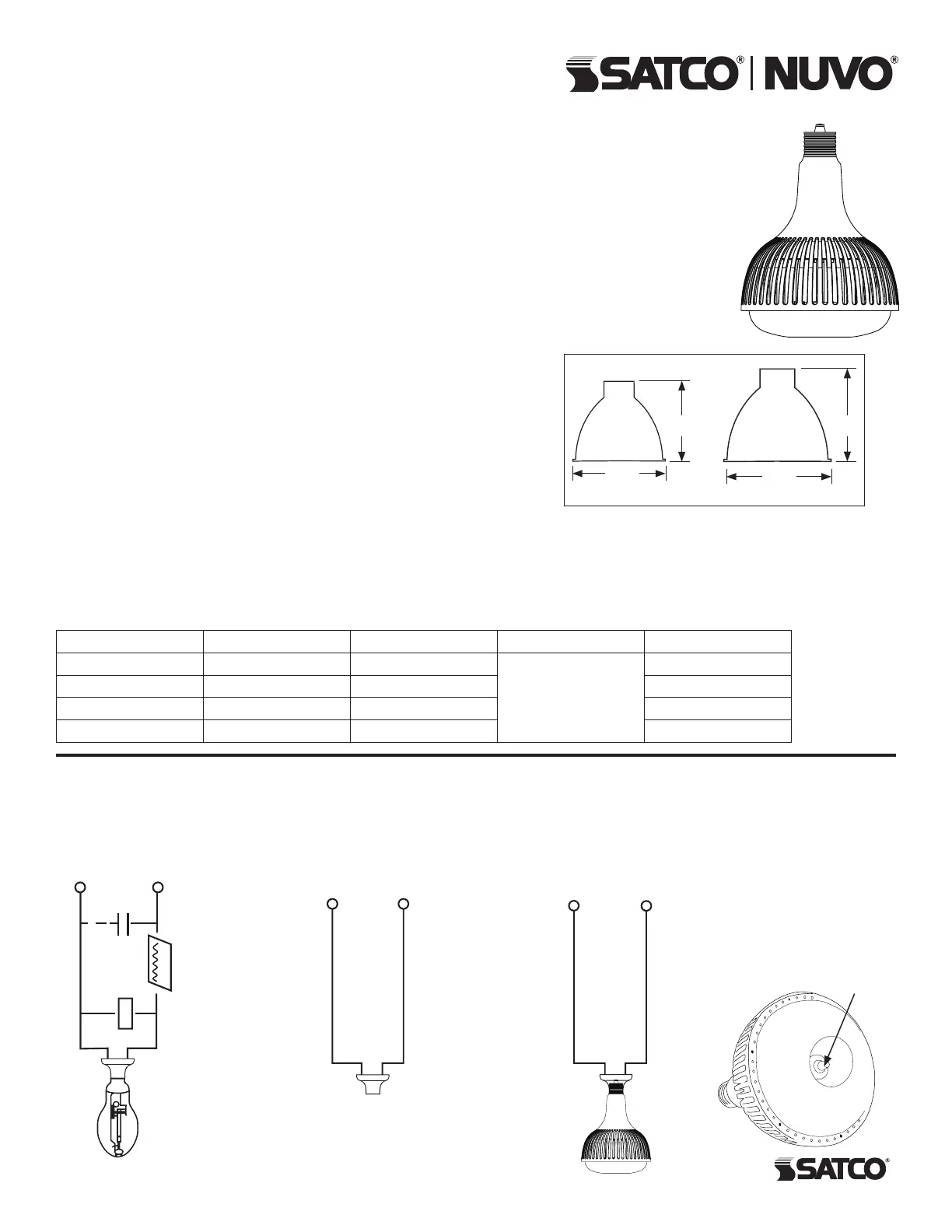

WARNING:Risk of Fire or Electric Shock. LED Retrot Kit intallation requires knowledge of

luminaires electrical systems. If not qualied, do not attempt installation. Contact a qualied

electrician.

WARNING:Risk of Fire or Electric Shock. Install this kit only in the luminaires that have the

construction features and dimensions shown in the photographs and/or drawings and where the

input rating of the retrot kit does not exceed the input rating of the lumenaire.

WARNING:To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal

or other sharp objects.

• To avoid damage, falling, electric shock or re, do not modify the lamp or replace

accessories without conrming with the supplier rst.

• Only authorized, licensed electrician should install this lamp and should follow

the owner’s manual. Any improper installation might cause failure,

electric shock, re or other injury, damage or hazard.

• Disconnect power before installation or any maintenance of the lamp.

• Do not alter the lamp without the supplier’s authorization.

• Do not make or alter any open holes in an enclosure of wiring or electrical

components during kit installation.

• Do not touch the power supply when the lamp is operating.

• Suitable for use in enclosed luminaires.

• Minimum lamp compartment dimensions: 13.5in (Dia.) x 12in (High) models S23112, S23113.

• Minimum lamp compartment dimensions: 16.5in (Dia.) x 13in (High) models S23114, S23115.

• This device is not intended for use with emergency exits.

IMPORTANT:This product must be installed in accordance with the applicable installation code by

a person familiar with the construction and operation of the product and the hazards involved.

HI-PRO LED HIGH BAY/LOW BAY

POWER FLOOD LAMPS

Models: S23112, S23113, S23114, S23115

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION:Turn Off Power Before Installation

The LED retrot luminaire conversion kit includes installation instructions, LED lamp and eld-applied label.

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing lamp. Retain for future reference.

© Copyright 2021 Satco Products, Inc. 8/21

SPECIFICATIONS

ModelTypeWatts VoltsCCT

S23112Low Bay 80W

120V-277V

4000K

S23113Low Bay80W5000K

S23114High Bay130W4000K

S23115High Bay130W5000K

STEP 1: Remove the existing

lamp. Remove existing

ballast, capacitor

and ignitor (if applicable).

STEP 2: Make sure the alternating

current wires connect to the

socket directly. Connect the

live wire (line hot) to the center

connection of the lamp holder.

Connect the line neutral (common)

to the side connection of the lamp

holder. Connect incoming ground

wire (ground) to xture ground wire

(ground).

STEP 3: Screw the LED lamp into

the corresponding socket. Attach

the provided eld-applied label to

the luminaire where readily visible

by the user during relamping.

STEP 4: Adjust dimming knob

to desired illumination level.

NOTE: Only use the control

provided with or specied by

these instructions to control

this lamp. This lamp will

not operate properly when

connected to a standard

(incandescent) dimmer or

dimming control.

AC120-277V

Ignitor

Capacitor

Ballast

x

x

x

x

x

x

NL

AC120-277V

N(L1)L

AC120-277V

N(L1)L

13.5”

16.5”

12”13”

S23112 & S23113

Minimum enclosure sizes:

S23114 & S23115

Dimming knob
