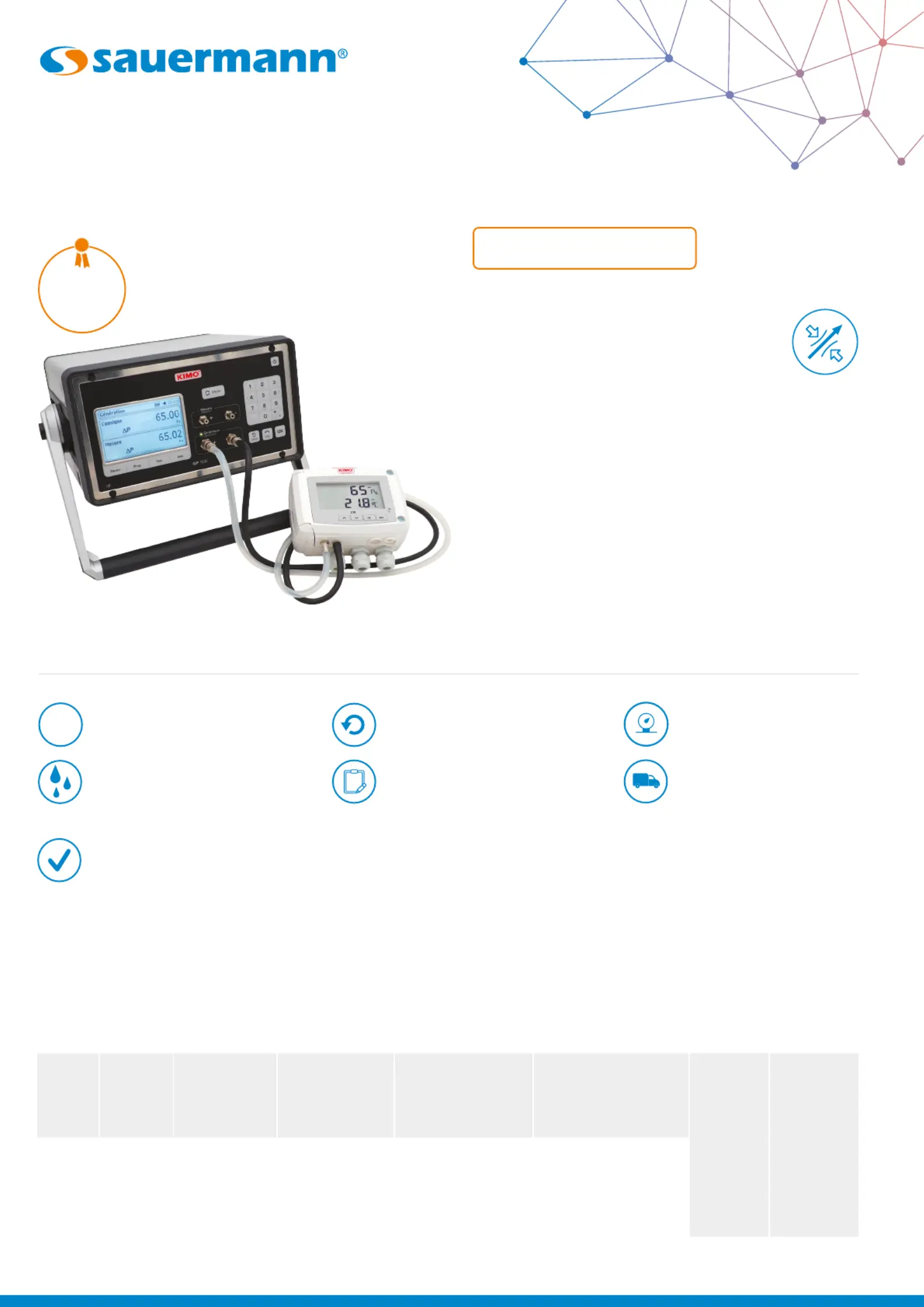

Pressure generator
DATA SHEET
Pressure generationAutomatic autozero
Transportable standardModiable table
Designed for professionnals of metrology, the pressure
generator allows to adjust and calibrate measuring
instruments in laboratory or on-site.
The GP 500 has 2 versions:
• GP 500-1: from -2500 to +2500 Pa
• GP 500-2: from -10 000 to 10 000 Pa
High accuracy
Leak test
Technical specications in pressure measurement and pressure generation
(1)
All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.
0.01
Pa
• Specic connectors
• Larged backlighted display
• Conguration software
• 20 programs with adjustable
generations
• Solid transport case
• Aluminium housing with adjustable
carrying handle
COMPLIES
WITH
EN 61010-1
Measuring
range
Measurement
accuray
(1)
Generation
range
Generation
accuracy
(1)
Resolution Autozero Units
GP 500-1
-2500 to
+2500 Pa
±(0.15% [Reading
value] +0.8) Pa
-2500 to -5 Pa
and
+5 to +2500 Pa
±5 to ±2500 Pa:
±1 Pa
-2500 to -1000 Pa: 1 Pa
-1000 to -100 Pa: 0.1 Pa
-100 to +100 Pa: 0.01 Pa
+100 to +1000 Pa: 0.1 Pa
+1000 to 2500 Pa: 1 Pa
Automatic
Manual
(via keypad)
Pa, daPa, hPa,
mmH
2
O, mmHg,
mbar, inWg
GP 500-2
-10 000 to
+10 000 Pa
±(0.15% [Reading
value] +6) Pa
-10 000 to -50 Pa
and
+50 to +10 000 Pa
-10 000 to -50 Pa: ±10 Pa
+50 to +1000 Pa: 1 Pa
+1000 to +10 000 Pa: 10 Pa
-10 000 to -1000 Pa: 1 Pa
-1000 to -100 Pa: 0.1 Pa
-100 to +100 Pa: 0.01 Pa
+100 to +1000 Pa: 0.1 Pa
+1000 to +10 000 Pa: 1 Pa
2 OPERATING MODES
• Measurement
• Generation
Display
Backlighted graphical LCD
Size: 85 x 51 mm
Resolution: 240 x 180 pixels
Measuring ports connection Ribbed connectors Ø 4 x 7 mm tubes
Generation ports connection Quick-coupling connectors DN2.7
Power supply 100 - 240 Vac ±10% / 50-60 Hz or on batterry
Consumption 19 W
Battery life 8 hours
PC interface USB
Operating temperature From 0 to +50 °C
Storage temperature From -10 to +70 °C
Environment Air, non-aggressive gases, non-corrosive gases
Languages French, English
Weight 4.5 kg
Conformity EMC 2014/30/EU; EN 61010-1 directives
Fuse on the phase and on the
neutral
Time delay 1 A 250 V
Instrument to connect to earth
protection
Technical features
2 x 1 m of silicone tube
1 power supply cable
1 USB cable
Conguration software
2 quick-coupling DN 2.7
Calibration certicate
User manual
Kit content
Maintenance:
We carry out calibration, adjustment and maintenance of your
devices to guarantee a constant level of quality of your measure-
ments. As part of quality assurance standards, we recommend
you to carry a yearly checking.
Precautions for use:
Please always use the device in accordance with its intended
use and within parameters described in the technical fea-
tures in order not to compromise the protection ensured by
the device.
Dimensions (mm)

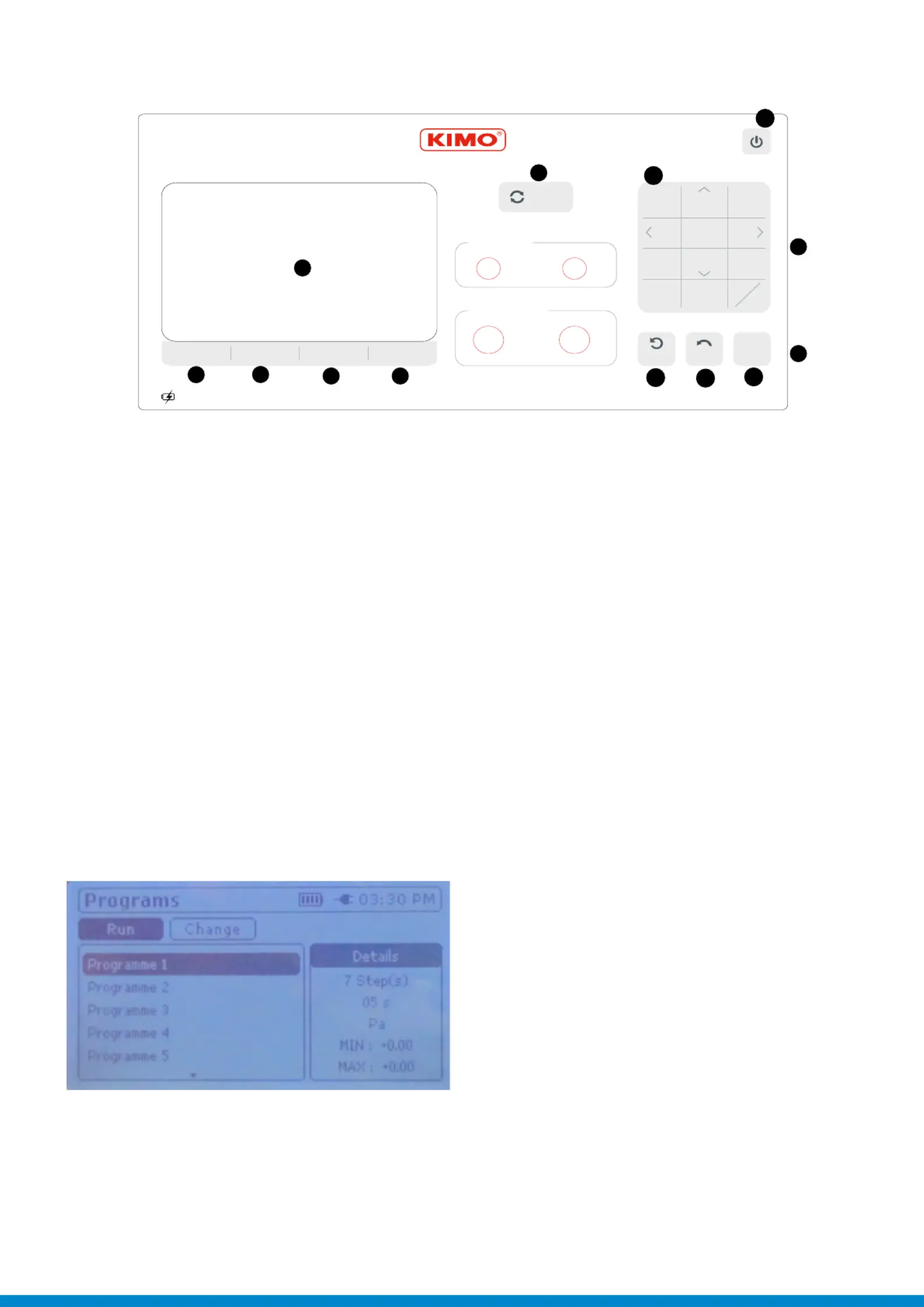

User interface
01. Screen
02. Param.: conguration of the instrument
03. Prog.: conguration of pressure generation programs
04. Test: leak test
05. units modicationUnit.:
06. mode selection : ‘‘Measure’’ or ‘‘Generation’’Mode:
07. 12 keys keypad with navigation arrows
08. Zero: manual autozero
09. Esc: back
10. OK: validation of the selection
11. On/Off key
12. Power supply on the right side
13. USB port type B on the right side
Speed and stability
MEASUREMENT
The GP 500 is the ideal instrument for the measurement of a dynamic pressure.
GENERATION
The pressure setpoints rapidely reached thanks to the enslavement of the pneumatic system are of a proven stability.
The GP 500 also offers to congure programs allowing to automate the pressure generation. This easy-to-use function allows to
save a precious time for serial controls.
GP 500
+ -
+-
Génération
Generation
Mesure
Measure
123
456
789
. 0
OK
+
-
ESC
Param. Prog. Test Unit.
ZERO
Mode
02
01
03
04 05
06
08
09
10
11
07
12
13
The Program function allows to dence the number and
the duration of the different stages to reach.
It is possible to save up to 20 different programs with 20
setpoints values (stages) by program.
Air tightness test
The air tightness test allows to test the integrety of an airow network. With its congurable parameters, the air-tightness test
gives clear and fast results of the situation, on-site or in laboratory.
