This product has a limited 3 year warranty in North America, Europe, and Australia.

For information on warranty periods in other regions, please contact your reseller or SilverStone authorized distributor.

1. Product component defects or damages resulted from defective production is covered under warranty.

Defects or damages with the following conditions will be fixed or replaced under SilverStone Technology’s jurisdiction.

a) Usage in accordance with instructions provided in this manual, with no misuse, overuse, or other inappropriate actions.

b) Damage not caused by natural disaster (thunder, fire, earthquake, flood, salt, wind, insect, animals, etc…)

c) Product is not disassembled, modified, or fixed. Components not disassembled or replaced.

d) Warranty mark/stickers are not removed or broken.

Loss or damages resulted from conditions other than ones listed above are not covered under warranty.

2. Under warranty, SilverStone Technology’s maximum liability is limited to the current market value for the product (depreciated value, excluding

shipping, handling, and other fees). SilverStone Technology is not responsible for other damages or loss associated with the use of product.

3. Under warranty, SilverStone Technology is obligated to repair or replace its defective products. Under no circumstances will SilverStone

Technology be liable for damages in connection with the sale, purchase, or use including but not limited to loss of data, loss of business, loss of

profits, loss of use of the product or incidental or consequential damage whether or not foreseeable and whether or not based on breach of warranty,

contract or negligence, even if SilverStone Technology has been advised of the possibility of such damages.

4. Warranty covers only the original purchaser through authorized SilverStone distributors and resellers and is not transferable to a second hand

purchaser.

5. You must provide sales receipt or invoice with clear indication of purchase date to determine warranty eligibility.

6. If a problem develops during the warranty period, please contact your retailer/reseller/SilverStone authorized distributors or SilverStone

. http://www.silverstonetek.com

Please note that: (i) You must provide proof of original purchase of the product by a dated itemized receipt; (ii) You shall bear the cost of shipping

(or otherwise transporting) the product to SilverStone authorized distributors. SilverStone authorized distributors will bear the cost of shipping

(or otherwise transporting) the product back to you after completing the warranty service; (iii) Before you send the product, you must be issued a

Return Merchandise Authorization (“RMA”) number from SilverStone. Updated warranty information will be posted on SilverStone’s official website.

Please visit for the latest updates.http://www.silverstonetek.com

Warranty terms & conditions

Additional info & contacts

For North America (usasupport@silverstonetek.com)

SilverStone Technology in North America may repair or replace defective product with refurbished product that is not new but has been functionally tested.

Replacement product will be warranted for remainder of the warranty period or thirty days, whichever is longer. All products should be sent

back to the place of purchase if it is within 30 days of purchase, after 30 days, customers need to initiate RMA procedure with SilverStone Technology

in USA by first downloading the “USA RMA form for end-users” form from the below link and follow its instructions.

http://silverstonetek.com/contactus.php

For Australia only (support@silverstonetek.com)

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.

You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.

You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Please refer to above “Warranty terms & conditions” for further warranty details.

SilverStone Technology Co., Ltd. 12F No. 168 Jiankang Rd., Zhonghe Dist., New Taipei City 235 Taiwan R.O.C. + 886-2-8228-1238

(standard international call charges apply)

For Europe (support.eu@silverstonetek.de)

For all other regions (support@silverstonetek.com)

NO.G11219731

SPECIAL FEATURES

INTRODUCTION

2013

Warranty Information

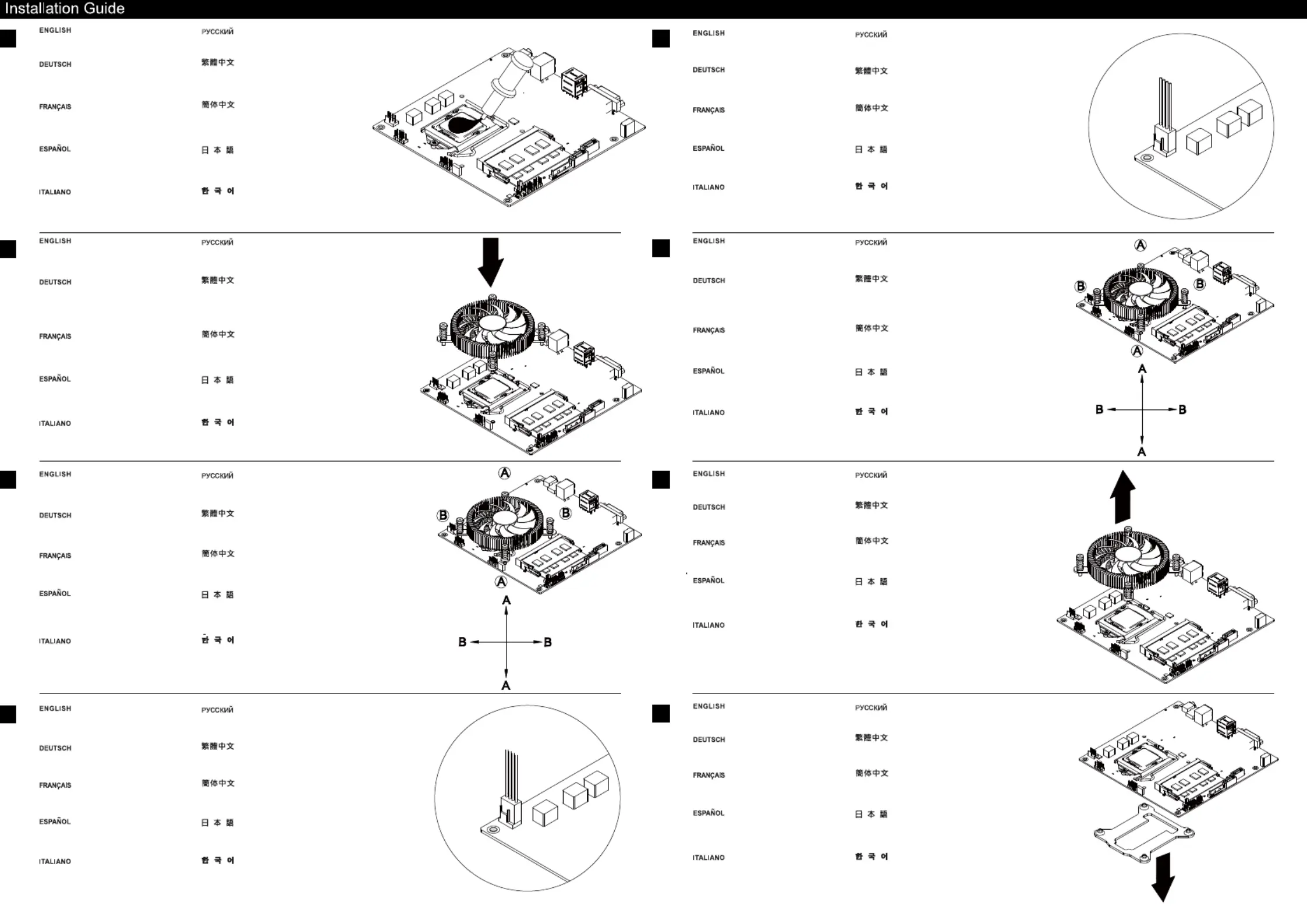

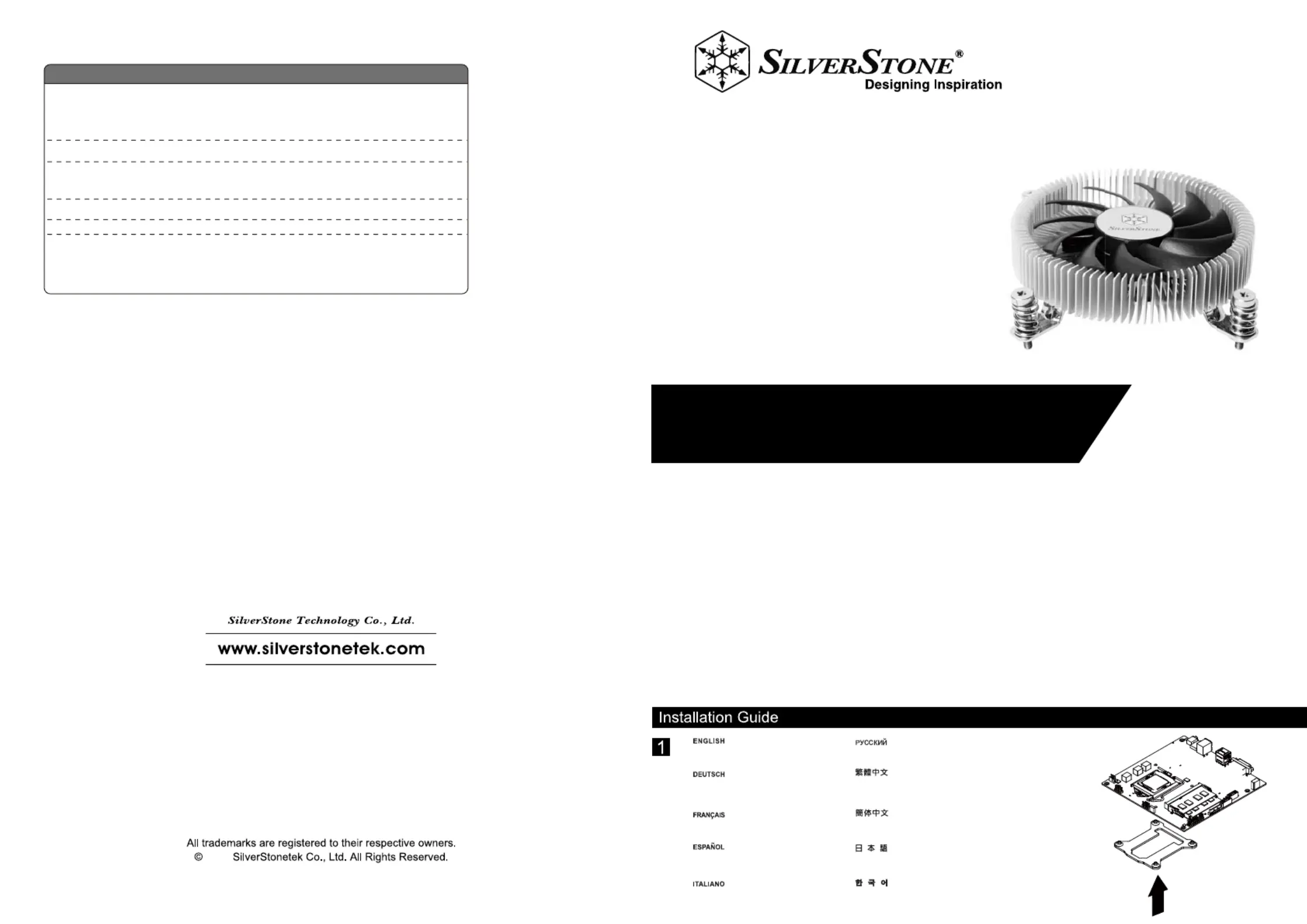

Install included back-plate onto

the backside of the motherboard.

Установите прилагаемую установочную

панель на задней части системной платы .

Installieren Sie die mitgelieferte

Rückplatte an der Rückseite des

Motherboards.

Installez la plaque arrière sur la face

arrière de la carte mère.

Instale la placa trasera incluida en la

parte trasera de la placa base.

Installare la piastra posteriore fornita

in dotazione sul retro della scheda

madre.

제공된 백 플레이트를 메인보드의 뒷면에 설치합니다.

請將所附背板安裝於主機板背面。

请将所附背板安装于主机板背面。

付属のバックプレートをマザーボードの裏側に取

り付けます。

NT07-115X

Superior low-profile

thermal solution for

Intel LGA1156 / 1155 / 1150

SilverStone Technology’s Nitrogon NT07-115X is a super slim profile CPU cooler designed for space limited

applications that utilizes LGA 1156, 1155, or 1150 platforms. It has a copper center construction with extruded aluminum

fins for excellent thermal conductive capability that rivals many larger coolers. The custom 80mm PWM fan was

designed with fan blades to achieve the highest air pressure possible while maintaining an acoustic profile that is rare

for cooler of this size. At a total height of only 23mm tall, the NT07-115X is an essential choice for super slim cases

such as SilverStone Petit PT12 or PT13 utilizing LGA 1156, 1155, or 1150 processors.

Nitrogon Series

65 65W

Support Intel LGA1156/1155/1150 processors

Designed for low profile systems at only 23mm tall

Large, custom 80mm PWM fan for excellent cooling and low noise

Copper center and base with extruded aluminum fins

Easy to install

Loosen and pull up two screws in position A

and then the other two in position B to remove

the CPU Cooler from the motherboard

Ослабьте и потяните вверх два винта в положении а A,

затем другие два винта в положении для снятия вентилятора B

процессора с системной платы

Lösen und entnehmen Sie zum Entfernen des

CPU-Kühlers vom Motherboard die beiden

Schrauben in Position A, dann die beiden

Schrauben in Position B.

Devissez et retirez deux vis en position A puis

les deux autres en position B pour retirer le

refroidisseur de CPU de la carte mère.

Afloje y tire de los dos tornillos en la posición

A y luego de los otros dos en la posición B para

retirar el disipador de la CPU de la placa base.A

Allentare e sollevare le due viti in posizione A,

quindi le altre due viti in posizione B per

rimuovere il dissipatore di calore CPU dalla

scheda madre

위치 A에서 2개의 나사를 풀어 위로 당긴 후 위치 B에서

나머지 2개의 나사도 풀어 위로 당겨 CPU 쿨러를

메인보드에서 분리합니다.

請依圖示依序鬆開並拉起位置A的螺絲，

再依序鬆開並拉起位置B的螺絲。

请依图标依序松开并拉起位置A的螺丝，

再依序松开并拉起位置B的螺丝。

Aの位置のネジ2本を緩めて外し、それからBの位置のネジを緩め

てCPUクーラーをマザーボードから取り外します。

Remove the CPU cooler from the

motherboard.

Выньте кулер ЦП из материнской

платы.

Nehmen Sie den CPU-Kühler vom

Motherboard ab.

Retirez le dissipateur de la carte mère.

Retire el disipador de la CPU de la placa

base.

Rimuovere il cooler del CPU dalla scheda

madre.

메인보드로 부터 CPU 쿨러를 제거합니다.

請將NT07-115X散熱器自主機板上方移除。

请将NT07-115X散热器自主机板上方移除。A

マザーボードからCPUクーラーを取り外します。

Remove back-plate from the

motherboard.

Снимите установочную панель с системной платы .

Entfernen Sie die Rückplatte

vom Motherboard.

Retirez la plaque arrière de la carte mère.

Retire la placa trasera de la placa base.

Rimuovere piastra posteriore dalla scheda

madre.

백 플레이트를 메인보드에서 분리합니다.

請將所附背板從主機板背面移除。

请将所附背板从主机板背面移除。

マザーボードからバックプレートを取り外します。

Place the NT07-115X cooler on top of the

installed CPU, and align the four spring screw

with the holes on the motherboard.

Расположите вентилятор над верхней частью NT07-115X

установленного процессора и

совместите четыре пружинных винта с отверстиями на

системной плате .

Bringen Sie den NT07-115X-Kühler auf der

installierten CPU an, richten Sie die vier

Federschrauben an den Löchern am

Motherboard aus.

Placez le refroidisseur le NT07-115X sur le

dessus du CPU intégré, puis alignez les quatre

vis à ressort avec les trous sur la carte mère.

Coloque el disipador NT07-115X sobre la CPU

instalada y alinee los cuatro tornillos con los

agujeros de la placa base.

Collocare il dissipatore di calore NT07-115X

sopra la CPU installata, ed allineare le quattro

viti a molla con i fori sulla scheda madre.

NT07-115X 쿨러를 설치된 CPU의 상부에

올려놓고 4개의 스프링 나사를 메인보드의

구멍에 맞춥니다.

請將NT07-115X散熱器置於已安裝CPU上方，

並將四顆散熱器螺絲對準主機板上的孔位。

请将NT07-115X散热器置于已安装CPU上方，

并将四颗散热器螺丝对准主机板上的孔位。

NT07-115Xクーラーを装着されたCPUの上に置き、

マザーボードの4つのネジ穴に合わせます。

Press and fasten two screws in position A as

shown and then the other two in position B to

fix the CPU cooler in place.

Нажмите и закрепите два винта в положении

A, , как показано а затем два винта в

положении для фиксации процессора B .

Befestigen Sie zum Fixieren des CPU-Kühlers

zwei Schrauben wie abgebildet in Position A

und zwei weitere Schrauben in Position B.

Appuyez sur deux vis et vissez deux vis en

position A comme indiqué puis les deux autres

en B pour fixer le refroidisseur de CPU en place.

Presione y fije dos tornillos en la posición A

como se muestra y luego los otros dos en la

posición B para colocar el disipador de la CPU

en su lugar.

Premere e stringere le due viti in posizione A,

come mostrato, quindi le due viti in posizione B

per fissare in posizione il dissipatore di calore

CPU.

그림과 같이 위치 A에서 2개의 나사를 눌러 조인 후

위치 B에서 나머지 2개의 나사를 사용하여

CPU 쿨러를 제자리에 고정합니다.

當AR04已安裝完成，將CPU風扇電源接頭接上主機板。

当AR04已安装完成，将CPU风扇电源接头接上主机板。

CPUクーラーは、図のようにAの位置にネジ2本で固定し、

残り2本はBの位置に締めて所定の位置に固定します。

When the NT07-115X is installed, connect the

CPU fan cable to the motherboard fan header

for CPU.

После установки подсоедините NT07-115X

кабель вентилятора процессора к разъему

вентилятора системной платы .

Wenn der NT07-115X installiert ist, verbinden

Sie das CPU-Lüfterkabel mit der

Motherboard-Lüftersteckleiste für die CPU.

Une fois le NT07-115X installé, connectez le

câble du ventilateur de CPU à la tête du

ventilateur de la carte mère de CPU.

Cuando la NT07-115X esté instalada, conecte

el cable del ventilador de la CPU al conector

del ventilador de la CPU en su placa base.

Quando NT07-115X è installato, collegare il

cavo ventola CPU al collettore ventola CPU

della scheda madre.

NT07-115X가 설치되면 CPU 팬 케이블을 CPU용

메인보드 팬 헤더에 연결합니다.

當NT07-115X安裝完成後，將CPU風扇的連接線

接上主機板風扇接頭。

当NT07-115X安装完成后，将CPU风扇的连接线

接上主机板风扇接头。

NT07-115Xが設置されたら、CPUファンケーブルをマ

ザーボードのCPUファンヘッダに接続します。

Remove the CPU fan cable from the

motherboard fan header.

Отсоедините кабель вентилятора процессора

от разъема вентилятора системной платы .

Entfernen Sie das CPU-Lüfterkabel

von der Motherboard-Lüftersteckleiste.

Retirez le câble du ventilateur de la tête du

ventilateur de la carte mère.

Retire el cable del ventilador de la CPU del

conector de la placa base.

Rimuovere il cavo ventola CPU dal collettore

ventola della scheda madre.

CPU 팬 케이블을 메인보드 팬 헤더에서 분리합니다.

將CPU風扇的連接線從主機板風扇接頭移除。

将CPU风扇的连接线从主机板风扇接头移除。

CPUファンケーブルをマザーボードのファンヘッダか

ら外します。

Apply included heatsink compound

on you CPU evenly.

Равномерно нанесите прилагаемую

термопасту на процессор .

Tragen Sie die mitgelieferte

Wärmeleitpaste gleichmäßig auf Ihre

CPU auf.

Appliquez le dissipateur de chaleur

composé sur votre CPU de façon

régulière.

Aplique el compuesto conductor

térmico incluido en su CPU de forma

uniforme.

Applicare in modo uniforme sulla CPU

il composto termico per il dissipatore

di calore fornito in dotazione.

제공된 방열판 접착제를 CPU에 고르게 바릅니다.

請將散熱膏均勻地塗抹在CPU上。

请将散热膏均匀地涂抹在CPU上。

付属のヒートシンクコンパウンドをCPUにむらなく塗ります。

Removal Guide

Produktspezifikationen

Marke:	SilverStone
Kategorie:	PC Kühlventilator
Modell:	Nitrogon NT07-115X
Breite:	90 mm
Tiefe:	90 mm
Gewicht:	201 g
Produktfarbe:	Black, Metallic
Höhe:	23 mm
Material:	Aluminium, Copper
Warentarifnummer (HS):	84733080
Typ:	Kühler
Maximaler Luftstrom:	48 cfm
Empfohlene Platzierung:	Chipset
Thermal Design Power (TDP):	65 W
Lüfterdurchmesser:	80 mm
Anzahl Lüfter:	1 Lüfter
Unterstützte Prozessorsteckplätze:	LGA 1150 (Socket H3), LGA 1155 (Socket H2), LGA 1156 (Socket H)
Maximum Luftdruck:	2.6 mmH2O
Abmessungen Gebläse (B x T x H):	80 x 80 x 10 mm
Rotationsgeschwindigkeit (min.):	1200 RPM
Rotationsgeschwindigkeit (max.):	3400 RPM
Geräuschpegel (langsame Geschwindigkeit):	18 dB
Geräuschpegel (hohe Geschwindigkeit):	26 dB
