For product manuals, technical
specications, certicates and
declarations refer to the product
website:
*988-12322-001*
POD
TRANSDUCERS
INSTALLATION GUIDE

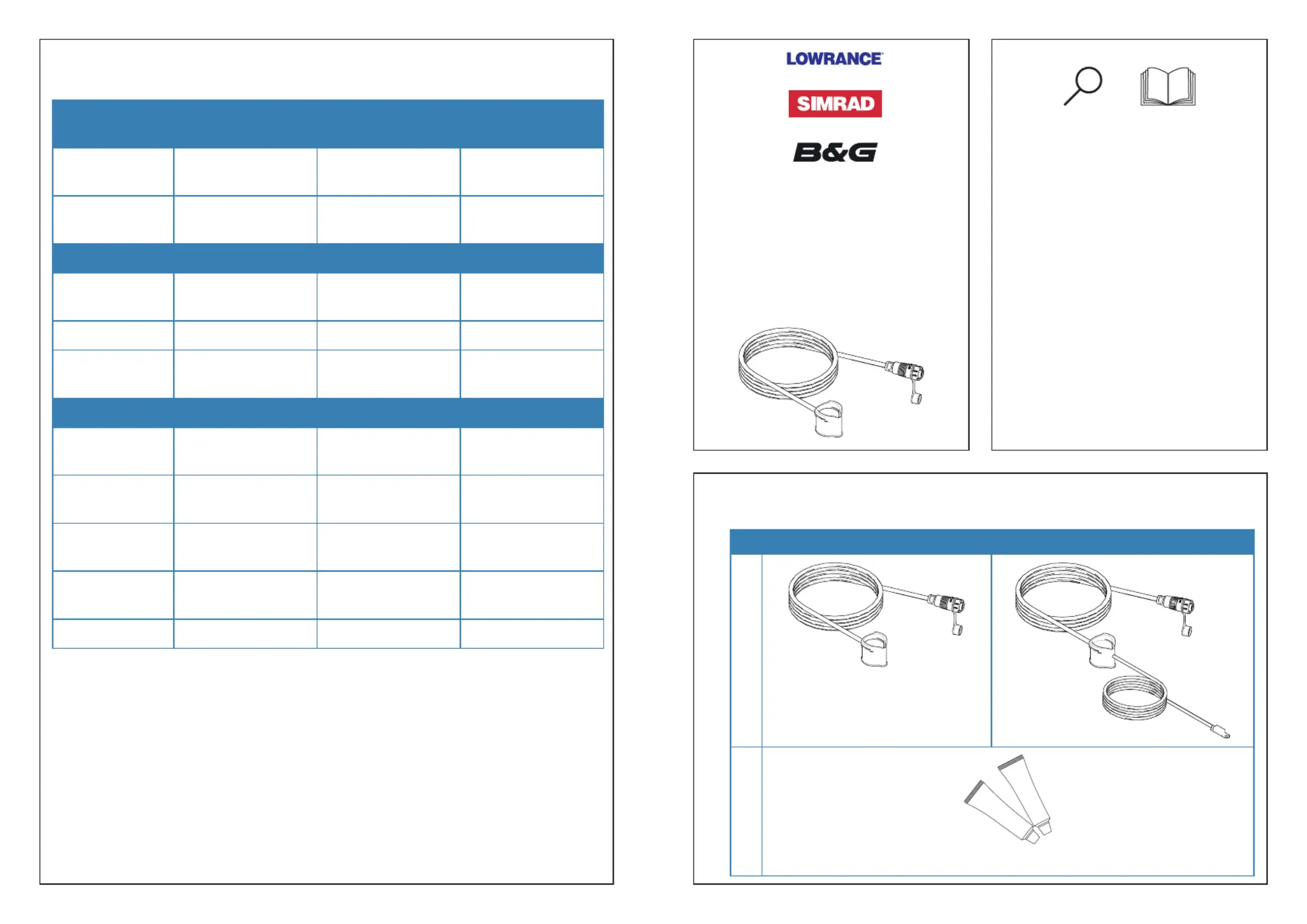

Parts included
Environmental Pod without
temp. sensor
Pod with temp.
sensor
Pod with remote
temp. sensor
Operating
temperature
0°C to +50°C (32°F
to +122°F)
0°C to +50°C (32°F
to +122°F)
0°C to +50°C (32°F
to +122°F)
Storage
temperature
30°C to +70°C
(-22°F to +158°F)
30°C to +70°C
(-22°F to +158°F)
30°C to +70°C
(-22°F to +158°F)
Physical
Weight 0.07 kg (0.15 lbs)
w/o cable
0.07 kg (0.15 lbs)
w/o cable
0.18 kg (0.39 lbs)
w/ cable
Cable length 6.4 m (21 ft) 3.9 m (12.5 ft) 6 m (19.5 ft)
Mounting
options
Shoot-thru-hull,
trolling motor
Shoot-thru-hull,
trolling motor
Shoot-thru-hull
Sonar
Output Depth Depth and
temperature
Depth and
temperature
Frequency Medium/High
CHIRP (83/200 kHz)
Medium/High
CHIRP (83/200 kHz)
Medium/High
CHIRP (83/200 kHz)
Beam width
(at -3dB)
38° at 83 kHz /
17° at 200 kHz
38° at 83 kHz /
17° at 200 kHz
38° at 83 kHz /
17° at 200 kHz
Max depth 304 m (1000 ft) at
200 kHz
304 m (1000 ft) at
200 kHz
304 m (1000 ft) at
200 kHz
Max speed 60 knots (70 mph) 60 knots (70 mph) 60 knots (70 mph)
Technical specications
Pod with/without temp. sensor Pod with remote temp. sensor
A
B
Two component epoxy adhesive
www.lowrance.com
www.bandg.com
www.simrad-yachting.com
Shoot-thru-hull installation
Warning: Do not remove any material from your inner hull unless you know the
hull’s composition. Contact your boat dealer or manufacturer to conrm your hull
specications.
Shoot-thru-hull transducers cannot shoot through:
• wood hulls
• metal hulls
Before you epoxy the transducer to the hull, make sure that:
• the area is clean, dry and free of oil or grease
• the surface of the hull is at so the entire transducer face is in contact with the hull
1. Sand smooth the face of the transducer and the bottom of the inner hull.
¼Note: The sanded area should be about 1½ times the diameter of the transducer.
2. Apply epoxy to the face of the transducer and the bottom of the inner hull.
3. DGlue the transducer to the inner hull ( ).
4. Apply pressure to the transducer while the epoxy is setting.
When nished, the face of the transducer should be parallel with the hull and with a
minimum amount of epoxy in between the hull and the transducer.
Trolling motor installation
¼Note: Clamp is not supplied.
12
A
A
B
CDE
A. Resin
B. Inner hull
C. Outer hull
D. Epoxy
E. Flotation material
Mounting guidelines
B C
A
BC
Best mounting location:
A. close to the center line
B. on vee hulls: at max. 10° deadrise
angle
Avoid mounting:
C. close to the trim tabs
For pods with remote temperature sensor you
can route the temperature sensor over the
transom or through the transom.
The sensor should be mounted so that it’s
below the waterline at all times.
Screw the sensor to the transom and seal the
mounting screw with the sealant/adhesive
compound.
