Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 06/17/2016

For the most up-to-date information, please visit: www.startech.com

ET91000SFP2 / ET91000SFP2C

Gigabit Ethernet Fiber Media Converter Card Module with Open SFP Slot

Packaging Contents

ET91000SFP2

• 1 x Fiber Media Converter

• 1 x Universal Power Adapter (NA/EU/UK)

• 1 x Grounding Screw

• Instruction Manual

System Requirements

• MSA Compliant Gigabit SFP Module

• 1000BASE-T compatible Ethernet network equipment

• RJ45 terminated UTP Cat5e or better Ethernet cable

• Available AC electrical outlet

ET91000SFP2C

• 1 x Fiber Media Converter

• Instruction Manual

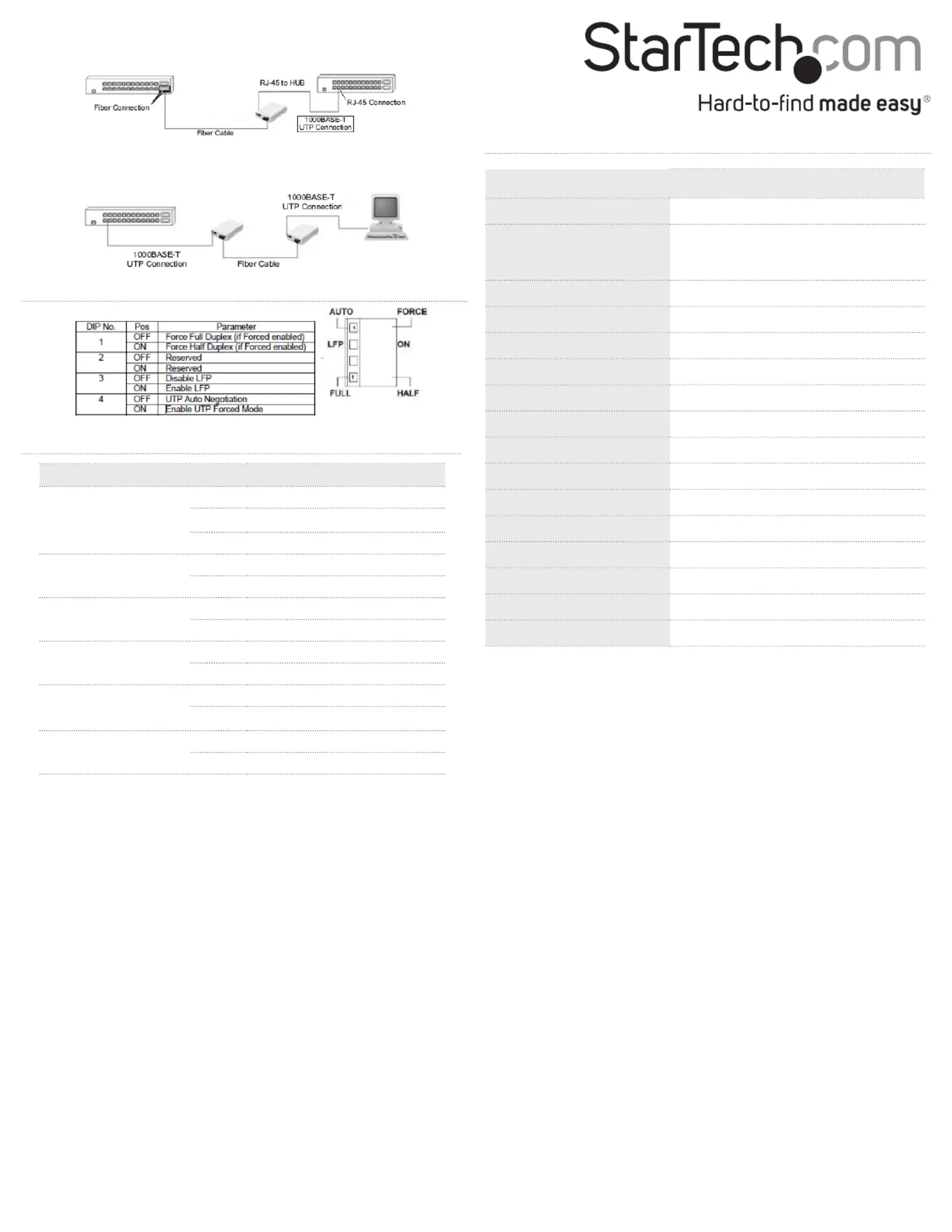

Installation

1. Make sure the DIP switches are set appropriately for

your network conguration (see “DIP Switch Settings“

section for details).

2. Insert a compatible SFP module into the open SFP slot.

3. Connect a ber optic network cable from a computer /

switch / media converter to the inserted SFP connector

on the media converter.

NOTE: When connecting the ber cable to your installed SFP

module, make sure to connect the Tx (transmit) terminal on one end,

with the Rx (receive) terminal on the other end.

4. Connect a UTP Ethernet cable from a computer/switch

to the RJ45 jack on the media converter.

5. Connect the power adapter to the media converter.

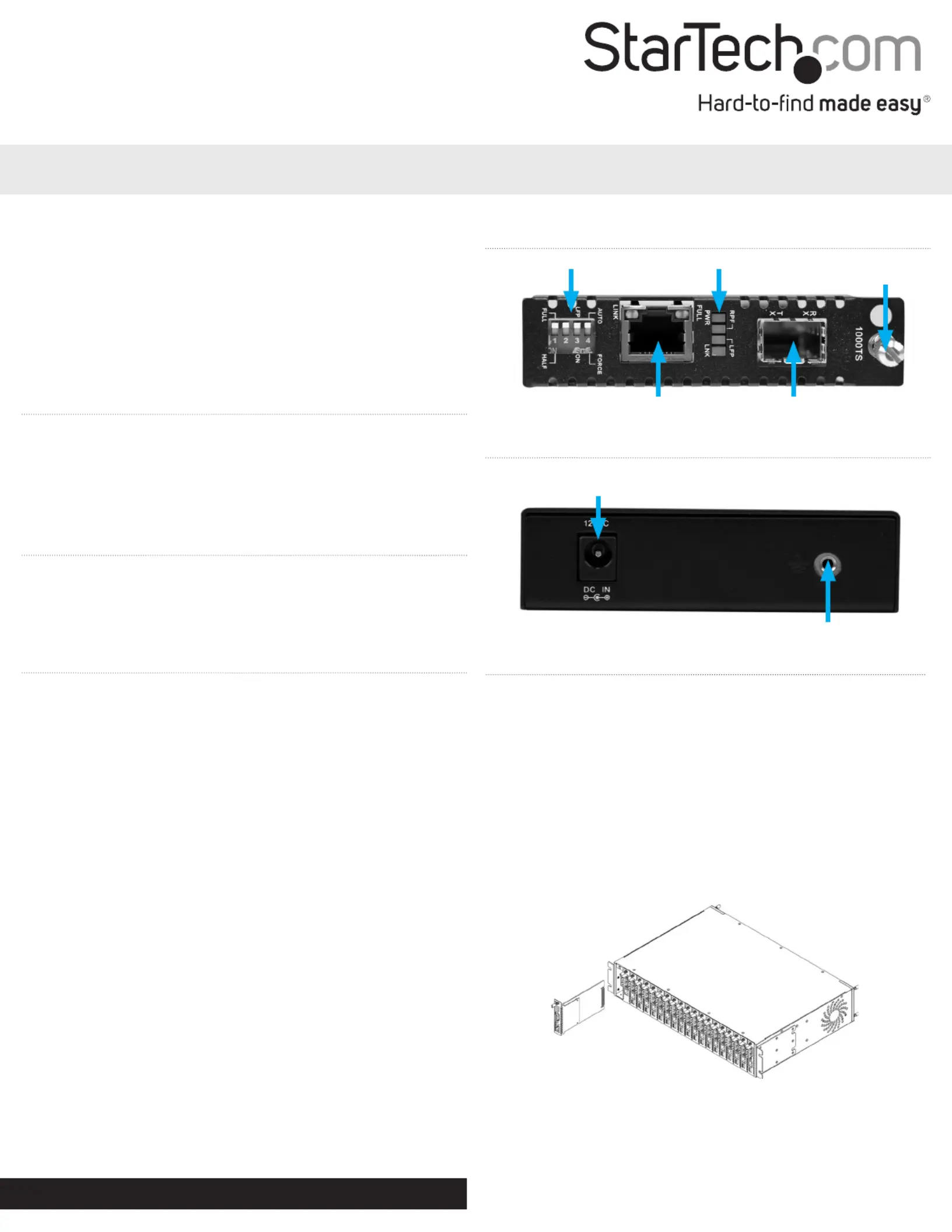

Front

RJ45 Ethernet Connector

Dip SwitchLED Indicators

SFP Slot

Rear

Thumb Screw

Release

DC Power Connector

Ground Point(Optional)

Installation into ETCHS2U Chassis

The ETCHS2U chassis supports the full line of StarTech.com ET series

2 media converters, which can be installed in a mixed fashion to suit

your environment. The cards are designed to be hot-swappable,

meaning the chassis need not be powered o in order to remove or

insert a card.

1. If the chassis slot was previously unused, loosen the screw at the

top of the slot to remove the cover plate

2. Align the card with the desired slot of the chassis and gently slide

the card into the groove to seat the power connection

3. Re-tighten the captive screw to hold the card in place
