Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 06/13/2011

For the most up-to-date information, please visit: www.startech.com

MCM110SC2 / MCM110SC2GB / MCM110SC2EU

MCM110ST2 / MCM110ST2GB / MCM110ST2EU

10/100 Ethernet to 100Base-FX Multi-Mode Fiber Media Converter - 2KM

Packaging Contents

• 1 x Fiber/Ethernet media converter

• 1 x Power Adapter

• 1 x Instruction Manual

System Requirements

• 10/100Base-TX compatible Ethernet network

• 100Base-FX ber network

• SC multi-mode ber cable

• Available AC electrical outlet

Installation

1. Connect the Ethernet cable to the Fiber Media Converter

“LAN” port.

2. Connect the other end of the Ethernet cable to the router/

switch/computer NIC.

3. Connect the ber cable into the ber receptacle on the

media converter.

4. Plug the provided power adapter into the media converter,

and into an available AC power outlet.

5. Connect the other end of the ber cable into the router/

switch/computer NIC/another media converter. Remember

to reverse the TX and RX leads between the two devices.

DIP Switch Settings

SwitchFunctionStateStatus

SW1UTP Mode

AutoAuto UTP detection

ManualUse manual UTP settings

SW2*UTP Speed

100100Mbps link speed

1010Mbps link speed

SW3*UTP Duplex

FullFull duplex

HalfHalf duplex

SW4

Link Fault Pass-

through

LFPLFP mode o

ONLFP mode on

*not enabled when SW1 set to ‘Auto’

LED Indicators

LEDFunctionStateStatus

PWR

Power

Indicator

ONConverter has power

OFF

Converter has no

power

FX Link/Act

Fiber Link/

Activity

ONFiber link OK

OFFNo link detected

FlashingReceiving data

FEFFar End Fault

ONFar end link failure

OFFNo failure detected

100Mode

ON100Mbps

OFF10Mbps

FullDuplex Mode

ONFull duplex mode

OFFHalf duplex mode

TX Link/Act

Ethernet Link/

Activity

ON

Ethernet link

detected

OFFNo link detected

FlashingReceiving data

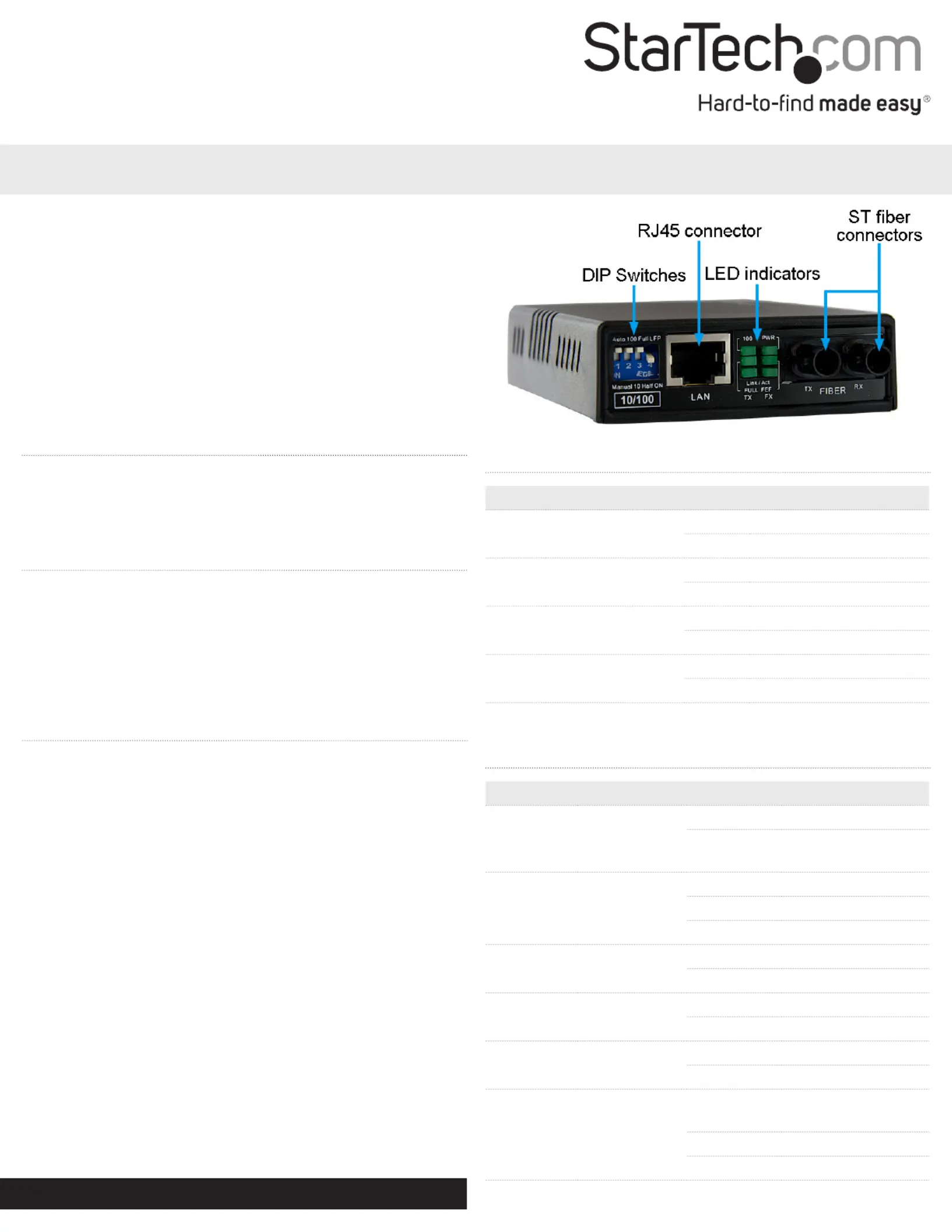

*MCM110ST2 shown
