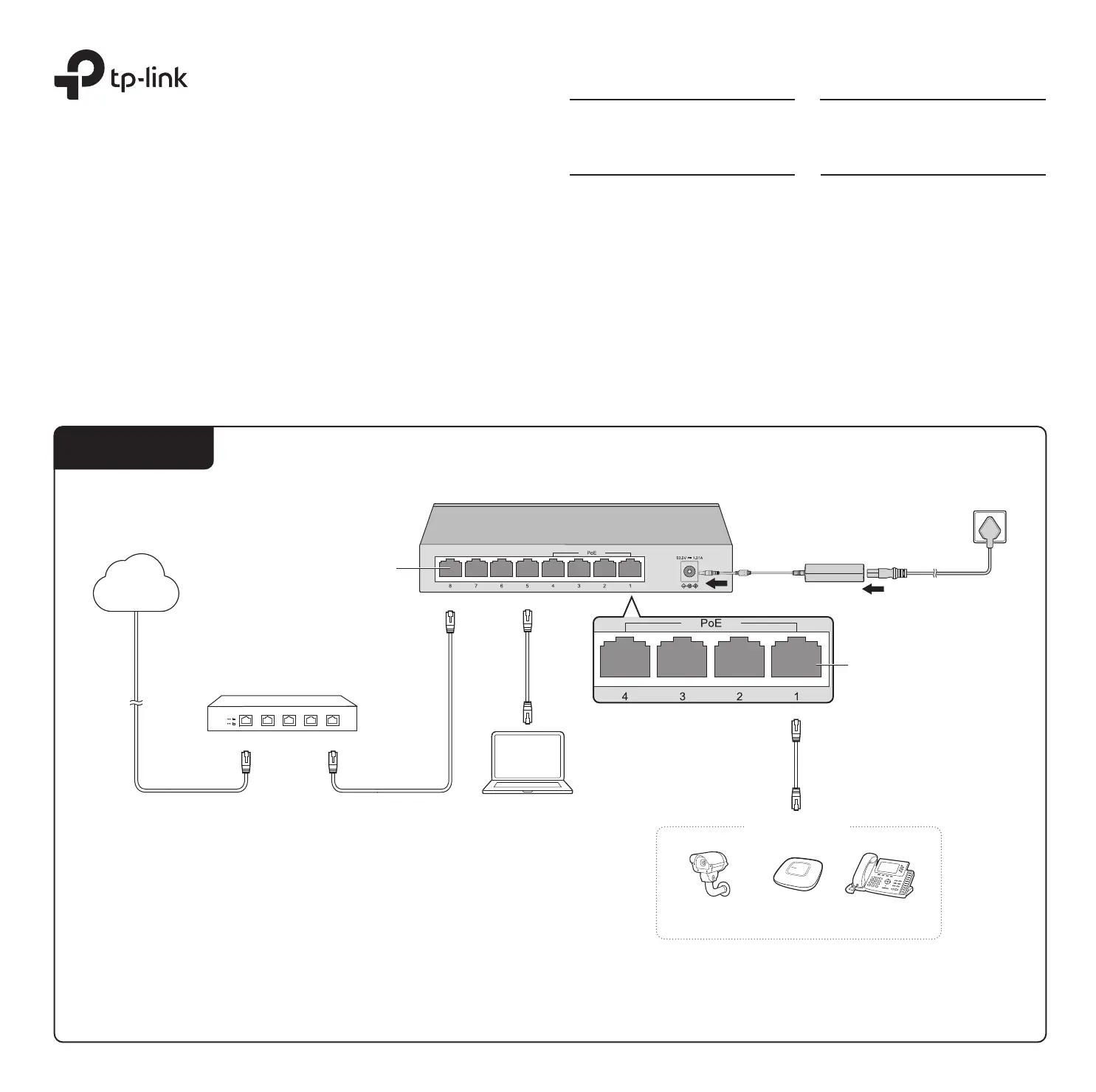

Connection

© 2020 TP-Link 7106508827 REV4.1.0

Installation Guide

Gigabit Desktop PoE+ Switch

LED Explanation

Package Contents: Switch, Power Adapter, Power Cord and Installation Guide.

Note: For simplicity, we will take TL-SG1008P for example throughout the Guide.

PC

IP CameraAP

Ethernet Ports (1-8)

PoE Ports (1-4)

IP Phone

PoE Devices

Router

LAN PortWAN Port

Internet

DC Power Adapter

AC Power Cord

Note:

3.For TL-SG1008P, maximum PoE power is 30 W for each PoE port and 64 W for all PoE ports in total.

For TL-SG1210P, maximum PoE power is 30 W for each PoE port and 63 W for all PoE ports in total.

For TL-SG1210MP, maximum PoE power is 30 W for each PoE port and 123 W for all PoE ports in total.

2.PoE ports typically connect to PoE Devices. Besides, PoE ports can also connect to non-PoE

devices, but only transmit data.

1.TL-SG1210P/TL-SG1210MP has two uplink ports, which typically connect to uplink devices like routers.

Uplink 1 is an SFP port and works with a 1000 Mbps SFP module. Uplink 2 is an RJ45 port.

PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed

and will vary as a result of client limitations and environmental factors.

PoE Disclaimer:

Power

PoE Status

On: Providing PoE power

Flashing: PoE fault

O: Not providing PoE power

On: Power on

O: Power o

Link/Act; Uplink 1, Uplink 2

Green On:

Running at 1000 Mbps, but no activity.

Green Flashing:

Running at 1000 Mbps and is transmitting or

receiving data.

Yellow On:

Running at 10/100 Mbps, but no activity.

O:

No device is linked to the corresponding port.

Yellow Flashing:

Running at 10/100 Mbps and is transmitting

or receiving data.

PoE MAX

For TL-SG1008P:

On: 57 W≤Total power supply < 64 W

Flashing: Total power supply ≥ 64 W

O: Total power supply < 57 W

For TL-SG1210P:

On: 56 W≤Total power supply < 63 W

Flashing: Total power supply ≥ 63 W

O: Total power supply < 56 W

For TL-SG1210MP:

On: 116 W≤Total power supply < 123 W

Flashing: Total power supply ≥ 123 W

O: Total power supply < 116 W
