Seite 1/3
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code to
access the manual in multiple languages.
INSTRUCTION MANUAL
LINEAR ACCESSORIES
COMPATIBLE WITH VT-4140
INTRODUCTION & WARRANTY
TECHNICAL DATA
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instruc-
tions carefully before starting the installation and keep this manual handy for future reference. If you have any
another query, please contact our dealer or local vendor from whom you have purchased the product. They
are trained and ready to serve you at the best. The warranty is valid for 3 years from the date of purchase. The
warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company
gives no warranty against damage to any surface due to incorrect removal and installation of the product. The
products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the
warranty. This product is warranted for manufacturing defects only.
SKU SHAPE LUMENS CRI DFWATTS
BEAM
ANGLE
INPUT POWER
IP
RATING
DIMENSION
10140, 10141
10142, 10143
X Connector 12W 1200Lm >80 120°>0.9
AC:220-240V
50/60 Hz
IP20 181X181X58mm
10170,10171
10172,23002
T Connector 10W 1000 Lm >80 120°>0.9
AC:220-240V
50/60 Hz
IP20 181x116.5x58mm
10173, 10174
10175, 10176
L Connector 8W 800 Lm >80 120°>0.9
AC:220-240V
50/60 Hz
IP20 116.5x116.5x58mm
This marking indicates that this product
should not be disposed of with other
household wastes.
Caution, risk of electric shock.

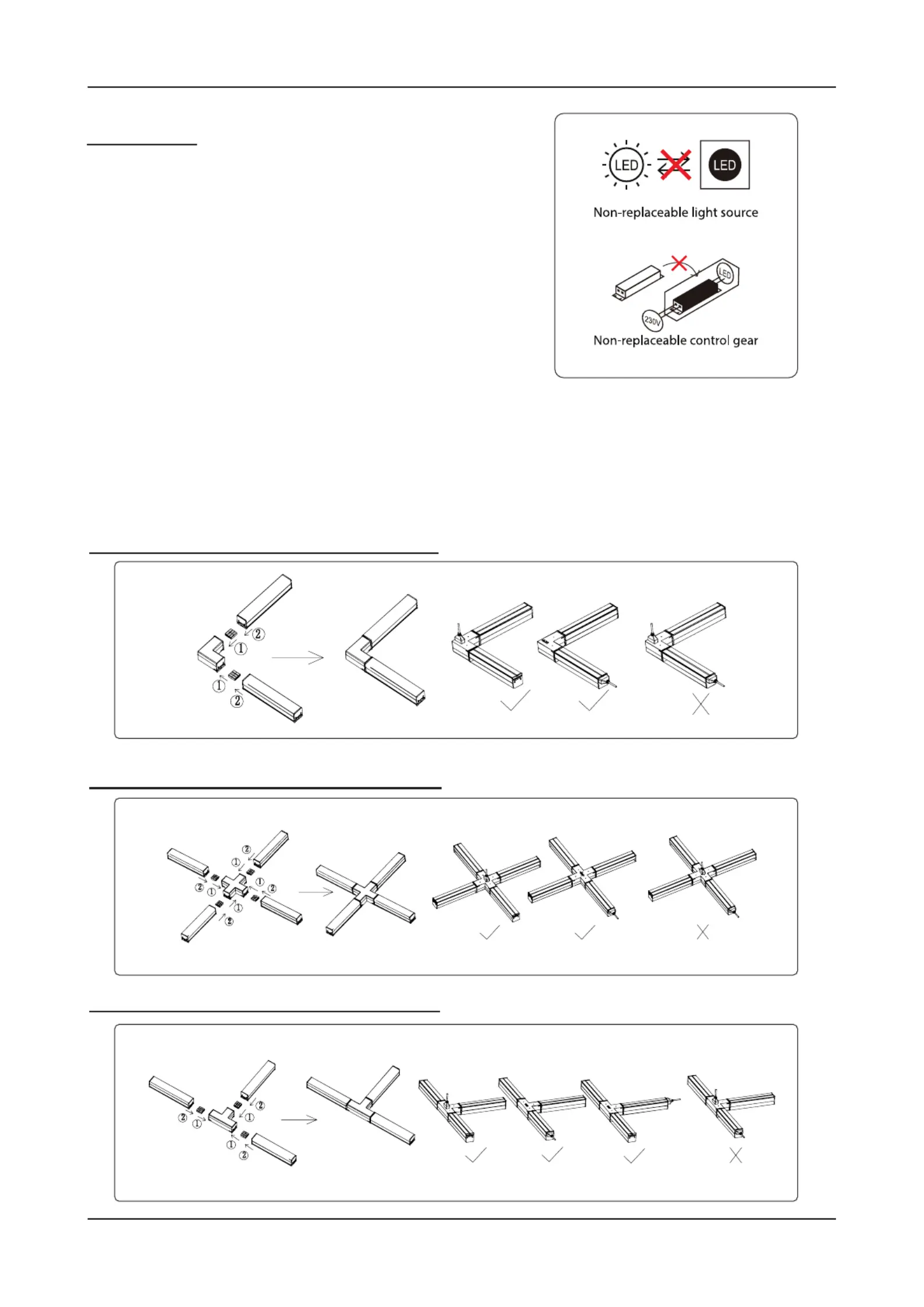

L SHAPE CONNECTING DIAGRAM
X SHAPE CONNECTING DIAGRAM
T SHAPE CONNECTING DIAGRAM
NOTE: When using the connector, kindly apply power source only from 1 end.
Art. 359116
Art. 359114
Art. 359115
INSTALLATION DIAGRAM
WARNING
1. Please make sure to turn o the power before starting the
installation.
2. Installation must be performed by a qualified electrician.
3. The light source of this luminaire is not replaceable, when
the light source reaches its end of life the whole luminaire
should be replaced.
4. If the external flexible cable or cord of this luminaire is
damaged, it shall be exclusively replaced by the manufac-
turer or his service agent or a similar qualified person in
order to avoid a hazard.
5. For Indoor use only

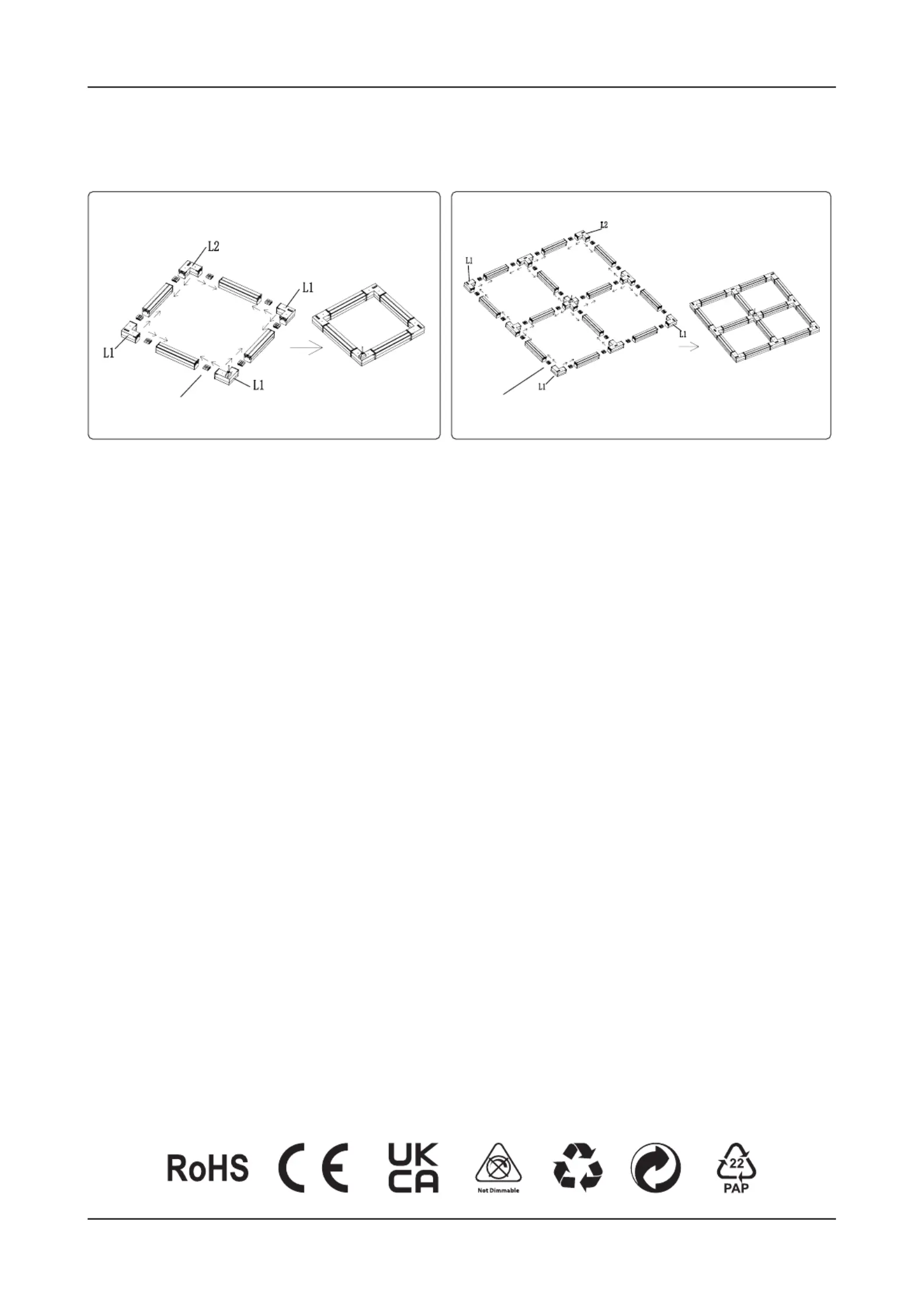

SPECIAL NOTE:When making a square formation, one of the connectors to
be used should be a dummy connector which is provided together with
Dummy
Dummy
