Seite 1/2
1 947666
Issue 2

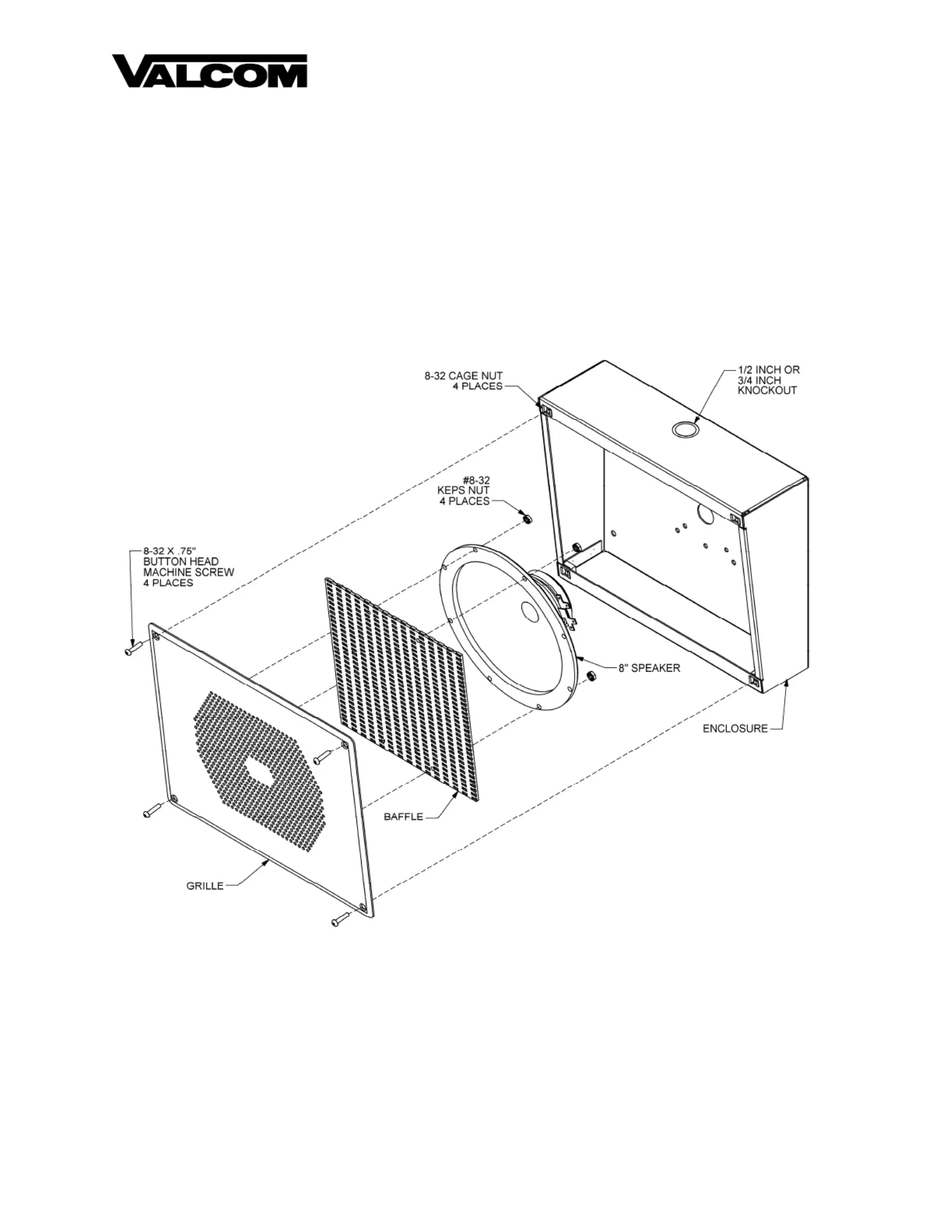

V-9807 Vandal-Resistant 8” Wall Speaker Enclosure
V-9852 Vandal-Resistant 8” Wall Speaker One-Way
V-9871 Vandal-Resistant 8” Wall Speaker Talkback
Installation Guide
DIMENSIONS/WEIGHT
10.00"H x 12.25"W x 4.00"D
(25.4cm H x 31.12cm W x 10.16cm D)
7.0 lbs. (3.2 kg) without Speaker (V-9807)
8.35 lbs. (3.8 kg) with Speaker (V-9852 and
V-9871)
2 947666
INSTALLATION
Remove the wall speaker enclosure from the
packing container. Using a Phillips screwdriver,
remove the two screws securing the grille to the
enclosure. Remove the grille and remove any
hardware packed inside the enclosure.
Pre-drilled 13/64
th
” mounting holes in the back of
the enclosure are designed to fit a single gang,
double gang or octagon outlet box. If not
attaching to an outlet box, use the enclosure as
a template. Hold the enclosure in the desired
position on the wall and mark the location of
mounting holes. Depending on wall construction
type, prepare the mounting hole locations on the
wall to securely attach the enclosure.
Wiring may be inserted through the large hole in
the back of the enclosure, or through the
knockout hole in the top of the enclosure. Insert
audio wires and power wires (if needed) through
desired hole. Use mounting hardware (not
included) appropriate for the wall type to
securely mount the enclosure to the wall.
Model V-9807 does not include a speaker.
Mounting studs and nuts are provided on the
back of the grille/baffle assembly to securely
attach any Valcom 8” speaker. Remove the four
nuts from the studs, align speaker mounting
holes on the studs, then install and securely
tighten the nuts.
For model V-9852, connect the audio wires to
the TIP and RING terminals on the speaker.
Connect the power wires to the -24V and GND
power terminals. Adjust the speaker volume
using volume control R4 (on the circuit board).
For model V-9871, connect the audio wires to
the tip and ring terminals on the speaker.
For model V-9807, make audio and power
connections as necessary for the type of
speaker used.
Align the grille/speaker assembly with the
enclosure. Install the four supplied tamper-
resistant screws through the grille into the
enclosure. Use the supplied security hex bit to
tighten the screws securely.
TECHNICAL ASSISTANCE
Assistance is available from the factory when
problems are encountered. Call (540) 563-2000
and press 1 for Technical Support or visit our
website at http://www.valcom.com.
Valcom equipment is not field repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating company
name, address, phone number, contact person
and the nature of the problem. Send the unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under
conditions of normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the
replacement, repair or refund of any such defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse or negligence after the original shipment;
3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts
and labor will be applied to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to
additional charges for parts and labor).
This Limited Warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable
for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase,
operation, maintenance, installation, removal or use of the product. The maximum liability of Valcom under this warranty is limited to
the purchase price of the specific Product covered by the warranty.
Disclaimer. Except for the Limited Warranty provided herein, the product is provided “as-is” without any warranty of any kind whatsoever
including, without limitation, any WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.
This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be
notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.
Headquarters:
Valcom, Inc.
5614 Hollins Road Roanoke, VA 24019-5056
Phone: (540) 563-2000 FAX: (540) 362-9800
