ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
P0425 / P0426
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Installation Steps
1
. Unscrew the bolt nuts (E), take out the mounting plate unit (A) and then
attach to the outlet box by using two mounting screws (B).
2. Rod Connections:
a. Thread the fixture wire through the lower rod, then secure the lower rod
onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod and then secure the middle
rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod,
then secure the upper rod onto the middle
rod using the threaded pipe.
Note: Length adjustable from 21-1/4" to 51-1/4".
Use fewer rods if shorter length is desired.
3. Thread the fixture wire through the canopy kit,
then secure the rod assembly to the set
threaded pipe of the canopy kit.
4. Pull out the source wires from the outlet box.
Make wire connections using wire connectors (C)
and small wire connector (D) as follows:
---Connect the smooth-coated wire (marked) from
the fixture to the red wire from the driver with the small wire connector (D).
---Connect the ribbed-coated wire (unmarked) from the fixture to the yellow
wire from the driver with the small wire connector (D).
---Connect the hot wire (black insulation) from the driver to the black wire from the power
source with the wire connector (C).
---Connect the neutral (white insulation) from the driver to the white wire from the power source with
the wire connector (C).
---Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw,
then connect it to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.

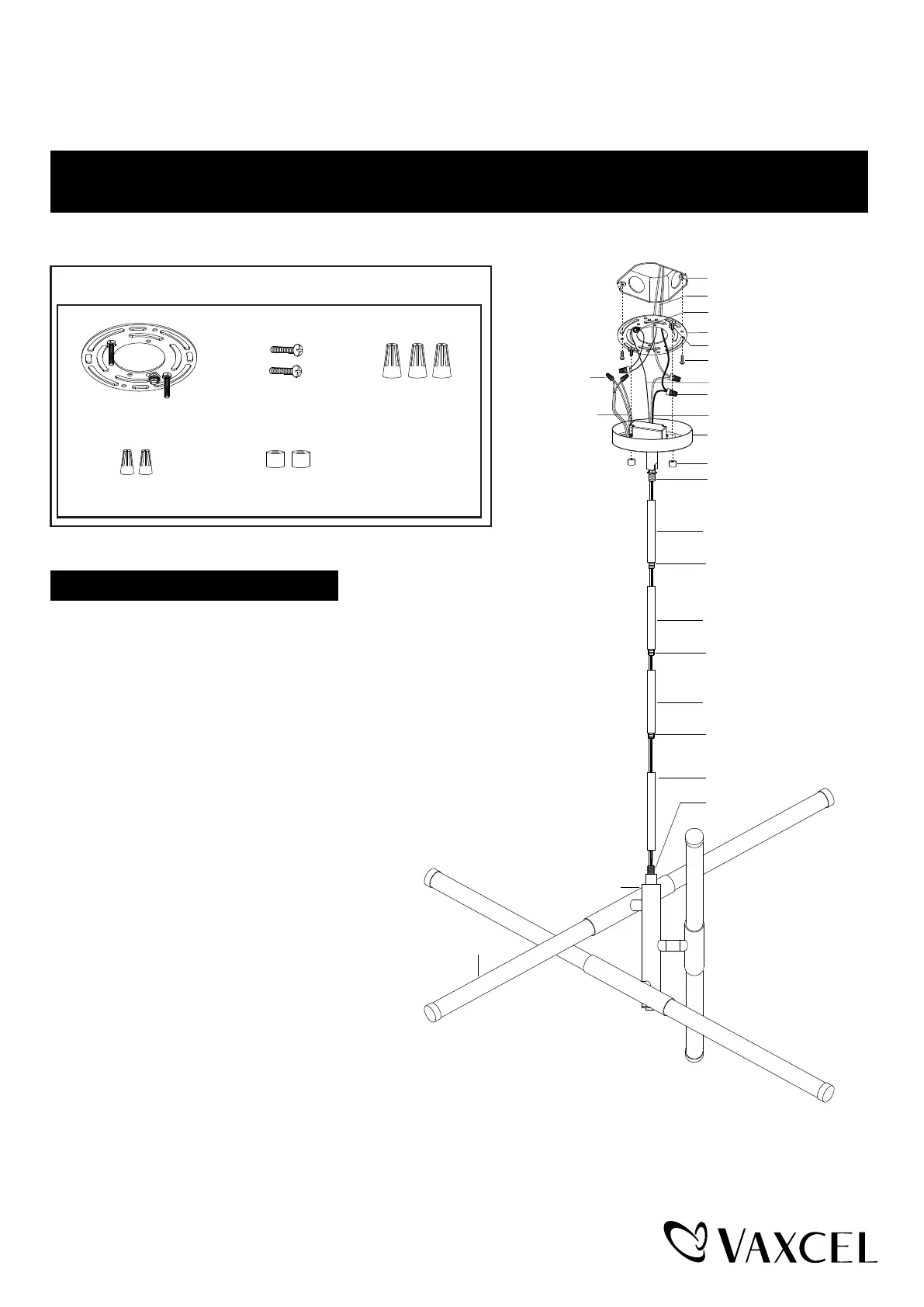

Hardware Package (included):
Wire Connector (C)
Small Wire Connector (D)
Mounting Screw (B)
Mounting plate Unit (A)
Bolt Nut (E)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Driver Wire
Small Wire
Connector (D)
Bolt Nut (E)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Fixture Wire
Outlet Box
Canopy Kit
Page 1 / 2
Set Threaded Pipe
Fixture
LED Tube
Middle Rod
Middle Rod
Threaded Pipe
Threaded Pipe
Upper Rod
Threaded Pipe
Threaded Pipe
Lower Rod
240423
