ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTIONS.

H0268

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

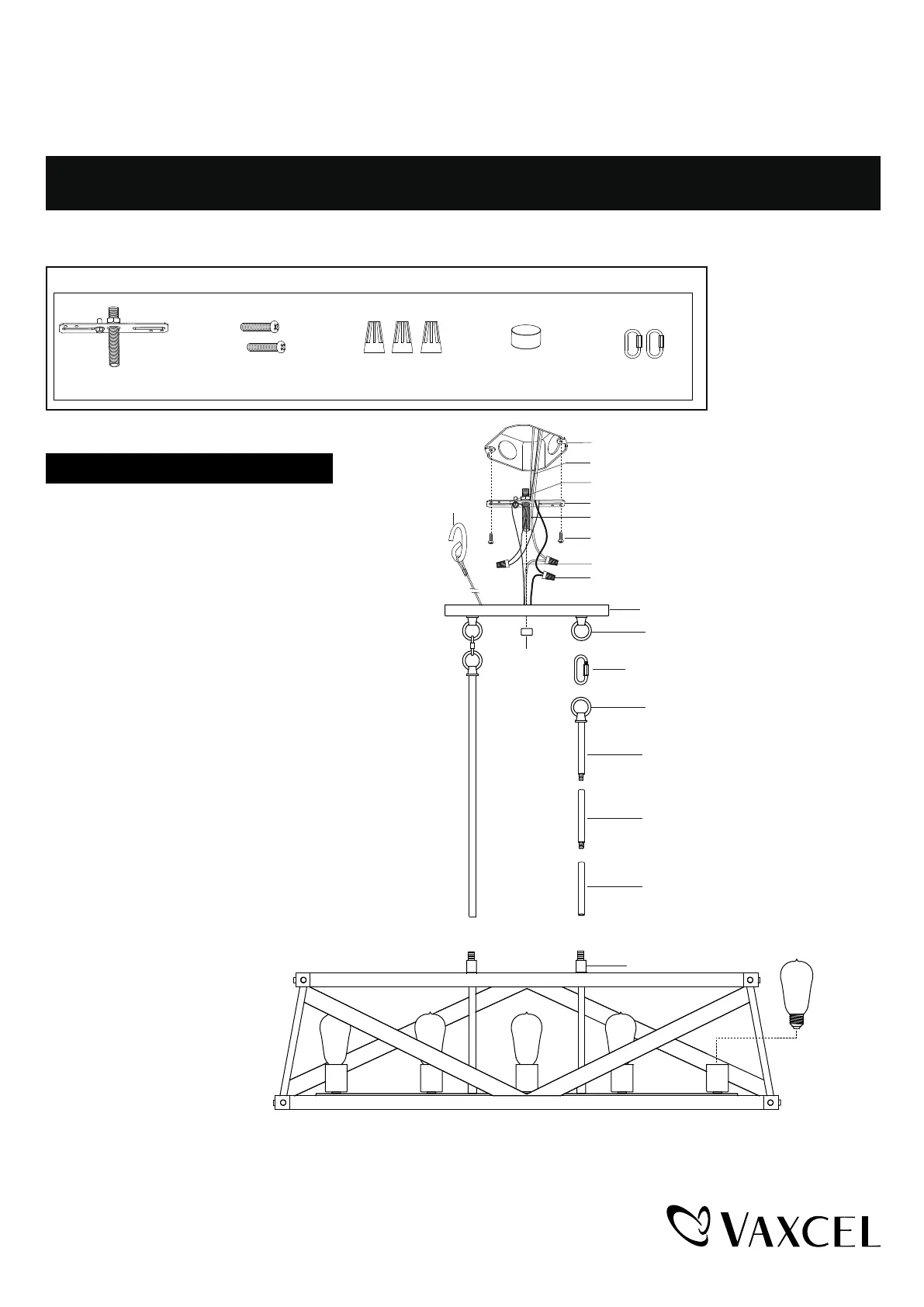

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

Mounting Strap Unit (A)Mounting Screw (B)Finial (D)Wire Connector (C)

Quick Link (E)

1. Attach the mounting strap unit (A) to the

outlet box using two mounting screws (B).

2. Rod Connections:

a. Thread the fixture wire from the fixture through

the lower rod, and then secure the lower rod

onto fixture using the threaded pipe.

b. Thread the fixture wire through the middle rod,

and then secure the middle rod onto the lower

rod using the threaded pipe.

c. Thread the fixture wire through the upper rod,

and then secure the upper rod onto the middle

rod using the threaded pipe.

d. Thread the fixture wire through the loop and

fixture canopy, and then secure the loop onto

the upper rod using the threaded pipe.

Note: Length adjustable from 10-3/4" to 73-1/4".

Use fewer rods if shorter length is desired.

3. Take a quick link (E), open the locking tube, and then

hook it onto the loop of fixture canopy and the loop

of upper rod. Close bak the looking tube of the quick

link (E).

4. Attach the cord clamp onto the

mounting strap unit (A).

5. Pull out the source wires from

the outlet box. Make wire

connections using wire

connectors (C) as follows:

---Connect the smooth-coated

wire (marked) from the

fixture to the black wire

from the power source.

---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.

---Attach the fixture ground wire to the mounting strap unit (A) with the green ground screw, then connect it to

the house ground wire with a wire connector (C).

Carefully put the wires back into the outlet box.

House Ground Wire

Fixture Ground Wire

Wire Connector (C)

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Loop

Loop

Upper Rod

Middle Rod

Lower Rod

Canopy

Threaded Pipe

Outlet Box

Quick Link (E)

Finial (D)

Cord Clamp

Threaded Pipe

Max.60W

Medium Base

Bulb

(not included)

220214
