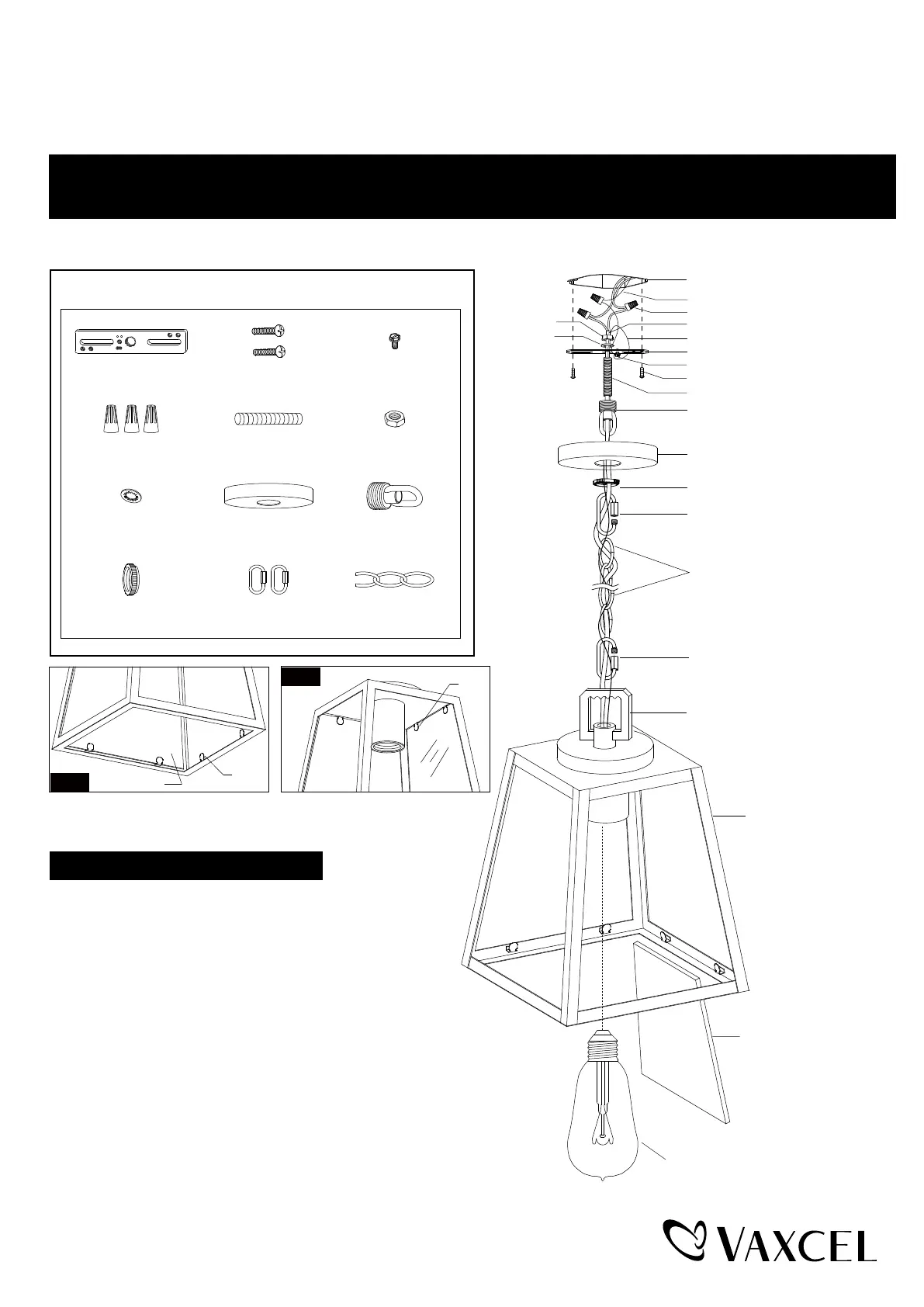

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

1. Attach threaded pipe (E) to the mounting

strap (A), then secure it with a washer (G)

and hex nut (F).

2. Attach the mounting strap (A) to the outlet box by

using two mounting screws (B).

3. Secure the top loop (I) to threaded pipe (E).

4. Take a glass panel and gently slide the narrow

side of the glass panel down into the metal frame

in place, secure it by pressing the clips from both

top and bottom sides. (See Fig.1 & Fig.2) Repeat

with other panels.

Turn off the power at fuse or circuit

box.

Installation Steps

Glass Panel

Fig.1

Clip

Fig.2

Clip

200928

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

P0346

Mounting Strap (A)

Wire Connector (D)

Collar (J)

Washer (G)

Mounting Screw (B)Green Ground

Screw (C)

Hex Nut (F)

Canopy (H) Top Loop (I)

Threaded Pipe (E)

Loop Lock (K)

Chain (L)

Hardware Package(inculded):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Outlet Box

Housing Ground Wire

Wire Connector (D)

Fixture Wire

Fixture Ground Wire

Mounting Strap (A)

Green Ground Screw (C)

Mounting Screw (B)

Threaded Pipe (E)

Hex Nut (F)

Washer (G)

Top Loop (I)

Main Fixture

Canopy (H)

Loop

Loop Lock (K)

Loop Lock (K)

Collar (J)

Chain (L)

Medium Base Bulb Max.40W

(not included)

Glass Panel (M)
