ASSEMBLY AND INSTALLATION

INSTRUCTIONS

W0381

T

Turn on the power at fuse or circuit box.

W

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2.READ

AND SAVE THESE INSTRUCTIONS.

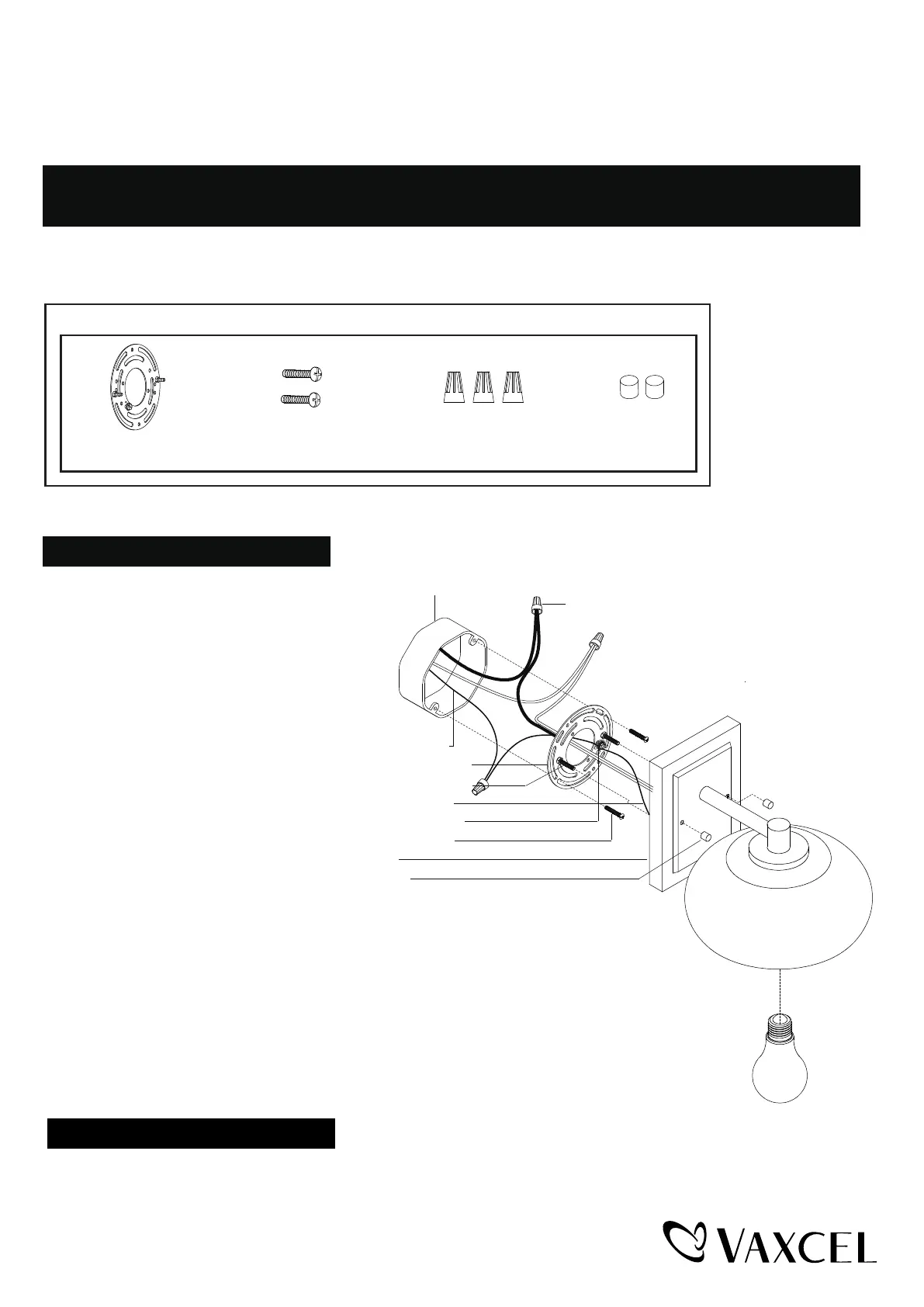

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)Bolt Nut (D)Mounting Plate Unit (A)

Backplate

Bolt Nut (D)

Fixture Ground Wire

Outlet Box

Wire Connector (C)

House Ground wire

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Fixture Mounting Screw

Max 60W Medium base bulb

(not included)

Turn off the power at fuse or circuit box

Installation Steps

1.Attach mounting plate unit (A) to the

outlet box using two mounting screws (B).

Adjust the length of the preinstalled fixture

mounting screws if necessary.

Note: Make sure that the fixture

mountingscrews are lined up

horizontally to make the fixture level.

2.Connect the smooth wire (marked)

to black wire (power), the ribbed

wire (unmarked) to white wire

(neutral) with the wire

connectors (C) provided.

Connect the copper wire on the

light fixture to the mounting plate

unit (A) by securing it with the

green ground screw, then connect

it to the house ground wire with

wire connectors (C).

Carefully put all the wires into outlet box.

3.

Attach the backplate to the mounting plate unit (A) by aligning and inserting the two

fixture mounting screws from the mounting plate unit (A) into the open holes on the

backplate, then expose fixture mounting screws before screwing the two bolt nuts (D).

4.Install 1 X 60W medium base bulb (not included).

See relamping label at socket area or packaging for maximum wattage allowed.

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
