181206
1. Thread the fixture mounting screws through mounting plate, and then
secure them with two lock nuts. Adjust the length of fixture mounting
screws if necessary.
2. Attach mounting plate to the outlet box using two mounting screws.
3. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod, and then
secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, and then secure the
upper rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 15-1/4" to 69-1/4". Use
fewer rods if shorter length is desired.
4.
Thread the fixture wire through the fixture canopy, and then
secure the rod assembly to the coupling kit of the fixture canopy.
5. Pull out the source wires from the outlet box. Make wire
connections using wire connectors as follows:
---Connect the smooth-coated wire (marked) from the
fixture to the black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the
fixture to the white wire from the power source.
---Attach the fixture grounding wire to the mounting
plate with the green grounding screw, and then
connect it to the house grounding wire with a wire connector.
Carefully put the wires back into the outlet box.
6.Put the glass into the trapezoidal frame, always keep the smooth side
of the glass face out, press the small iron shim in the frame onto the glass and make sure it is tight.
7. Install bulbs (not included). Check relamping label at socket area or packaging for maximum allowed wattage.

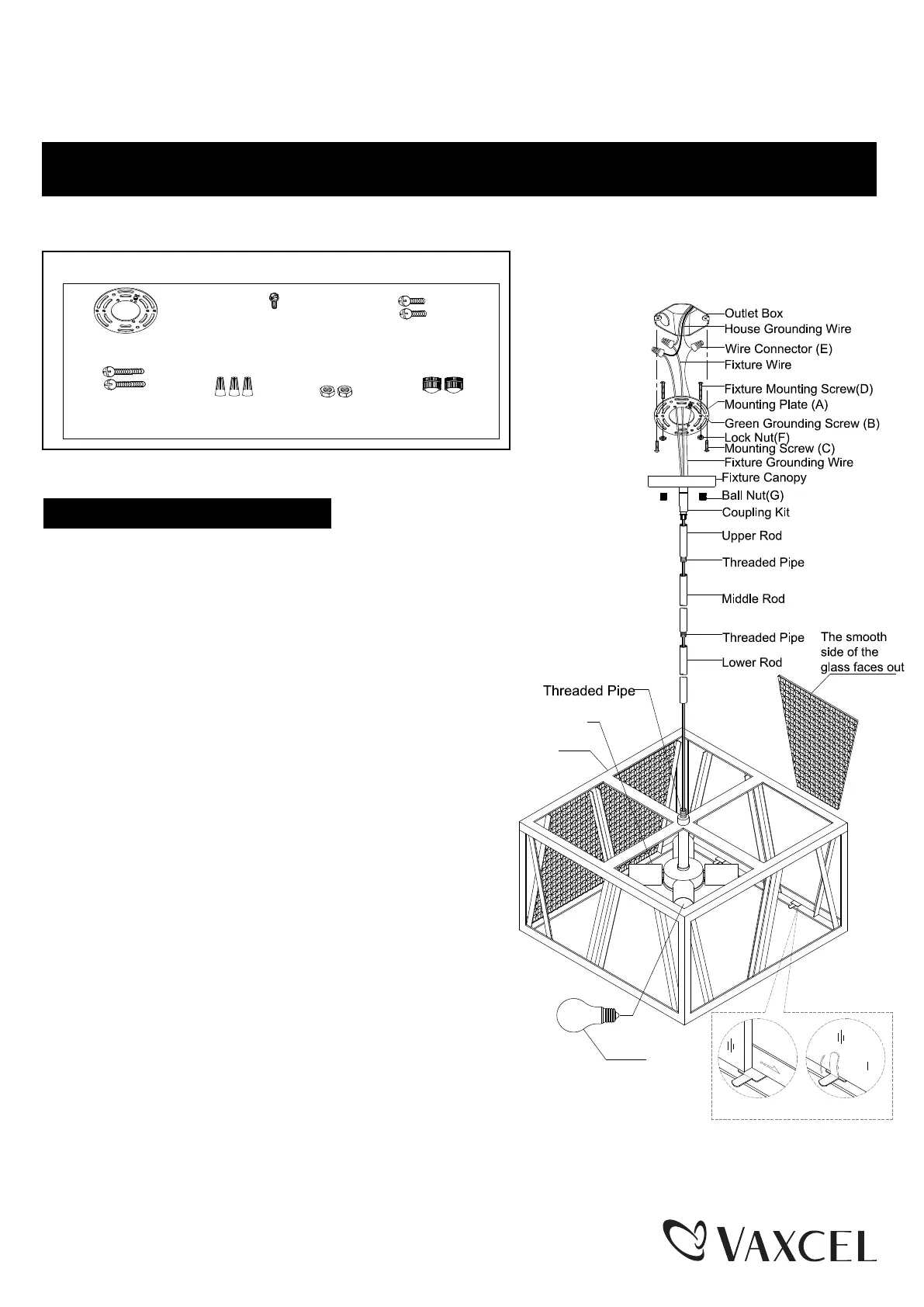

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
P0294
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Mounting Screw (C)
Lock Nut (F)
Wire Connector (E)
Mounting Plate (A)
Fixture Mounting
Screw (D)
Green Grounding
Screw (B)
Ball Nut(G)
Bulb Type A
Max.60W
(not included)
Socket
Fixture
Produktspezifikationen
| Marke: | Vaxcel |
| Kategorie: | Beleuchtung |
| Modell: | Oslo P0294 |
