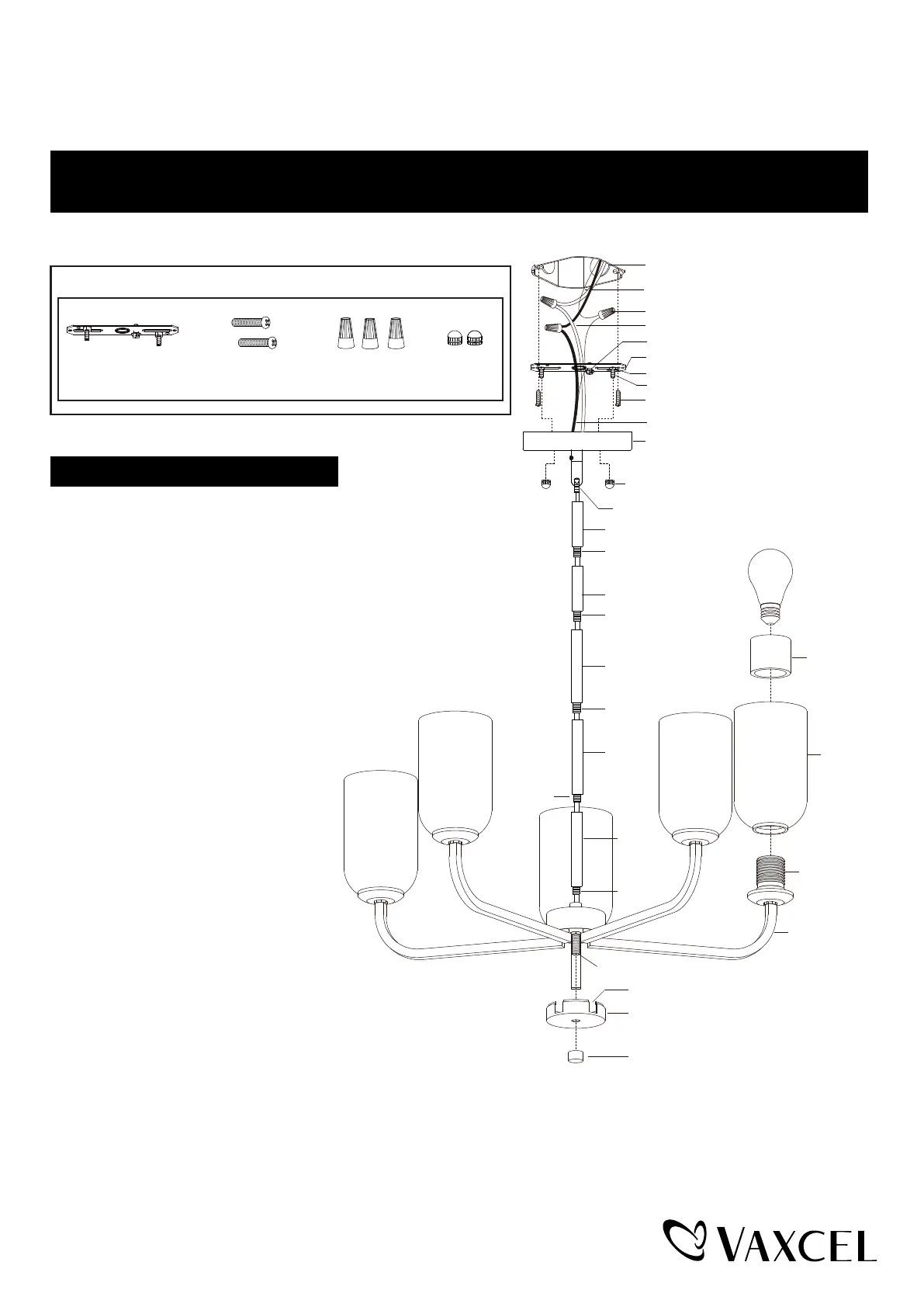

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2.Read and save this instruction.
H0305
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Installation Steps
Page 1 / 2
1
.Attach the mounting strap unit (A) to the outlet box by using
two mounting screws (B).
2.Adjust the arms of the fixture according to the picture on the package.
Important:
a.The arms should be positioned with equal distances between them.
b.The arms should be fixed securely.
3.Slip the decorative cup up through the threaded pipe-1 to fixture
as five bottom arms engage into five slots of decorative cup,
secure it with the bottom finial.
4.Rod Connections:
a.Thread the fixture wires through the
lower rod, then secure the lower rod
onto fixture using the threaded pipe.
b.Thread the fixture wires through the
middle rod and then secure the
middle rod onto the lower rod using
the threaded pipe.
c.Thread the fixture wires through the
upper rod, then secure the upper rod
onto the middle rod using the threaded
pipe.
Note: Length adjustable from 17-1/4"
to 53-1/4". Use fewer rods if shorter
length is desired.
5.Thread the fixture wire through the canopy kit, then secure the
rod assembly to the set threaded pipe of the canopy kit.
6.Pull out the source wires from the outlet box. Make wire
connections using wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the fixture to the
black wire from the power source.
---Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting strap unit (A) with green ground screw, then
depending on local code, connect it to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
240407
Bolt Nut (D)Mounting Screw (B)Wire Connector (C)Mounting Strap Unit (A)
Canopy Kit
Bolt Nut (D)
Upper Rod
Middle Rod
Socket Ring
Lower
Rod
Threaded
Pipe
Threaded Pipe
Threaded Pipe
Threaded
Pipe
Middle Rod
Middle
Rod
Threaded
Pipe
Set Threaded Pipe
Outlet Box
House Ground Wire
Wire Connector (C)
Lock Nut
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Fixture Wire
Fixture Mounting Screw
Fixture Ground Wire
Max. 60W Medium
Base
Bulb
(not included)
Glass
Shade
Socket Ring
Decorative Cup
Slot
Bottom Finial
Arm
Threaded Pipe-1
Produktspezifikationen
| Marke: | Vaxcel |
| Kategorie: | Beleuchtung |
| Modell: | Shelby H0305 |
