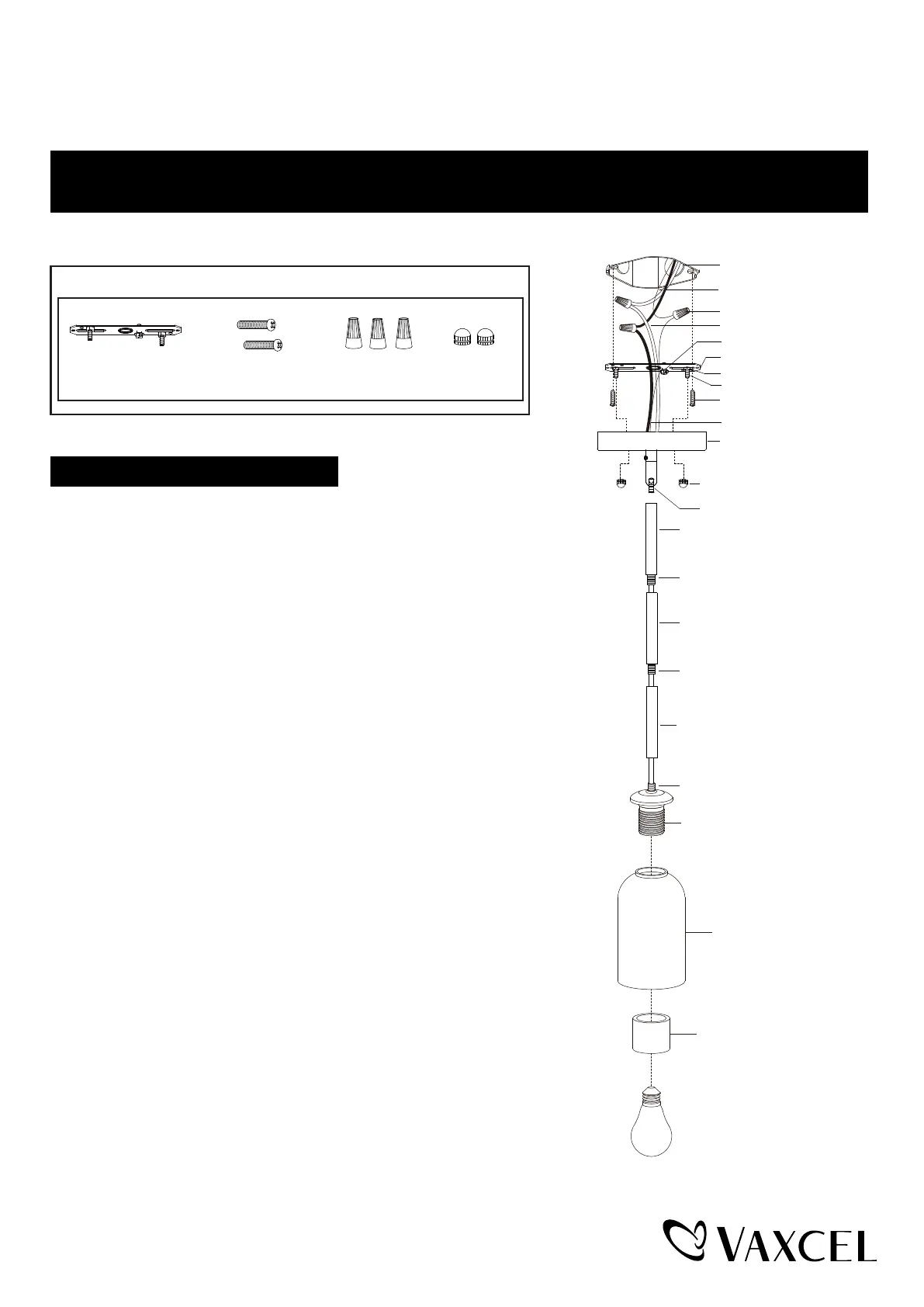

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
P0427
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Installation Steps
Page 1 / 2
1
. Attach the mounting strap unit (A) to the outlet box by using two
mounting screws (B).
2. Rod Connections:
a. Thread the fixture wires through the lower rod, then secure the
lower rod onto fixture using the threaded pipe.
b. Thread the fixture wires through the middle rod and then secure
the middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wires through the upper rod, then secure the
upper rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 18-3/4" to 37-3/4". Use fewer rods
if shorter length is desired.
3. Thread the fixture wires through the canopy kit, then secure the rod
assembly to the set threaded pipe of the canopy kit.
4. Pull out the source wires from the outlet box. Make wire
connections using wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the fixture to
the black wire from the power source.
---Connect the neutral wire (white insulation) from the fixture
to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting strap
unit (A) with the green ground screw, then connect it to the
house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
5. Attach the canopy kit to the mounting strap unit (A) by inserting the
fixture mounting screws, then secure it with two bolt nuts (D).
6. Attach the glass shade to the socket carefully, then secure it with
the socket ring.
7. Install 1 x 60W max. medium base bulb (not included). See
relamping label at socket area or packaging for maximum
wattage allowed.
240328
Bolt Nut (D)
Mounting Screw (B)
Wire Connector (C)Mounting Strap Unit (A)
Canopy Kit
Bolt Nut (D)
Upper Rod
Middle Rod
Socket
Socket Ring
Lower Rod
Threaded Pipe
Threaded Pipe
Set Threaded Pipe
Threaded Pipe
Outlet Box
House Ground Wire
Wire Connector (C)
Lock Nut
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Fixture Wire
Fixture Mounting Screw
Fixture Ground Wire
Max. 60W Medium Base
Bulb
(not included)
Glass Shade
