Vaxcel Shelby W0484 Bedienungsanleitung

Lies die bedienungsanleitung für Vaxcel Shelby W0484 (2 Seiten) kostenlos online; sie gehört zur Kategorie Beleuchtung. Dieses Handbuch wurde von 12 Personen als hilfreich bewertet und erhielt im Schnitt 4.9 Sterne aus 2 Bewertungen. Hast du eine Frage zu Vaxcel Shelby W0484 oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage

Hardware Package (

included

):

Crossbar Unit (A)Mounting Screw (B)Wire Connector (C) Bolt Nut (D)

W

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

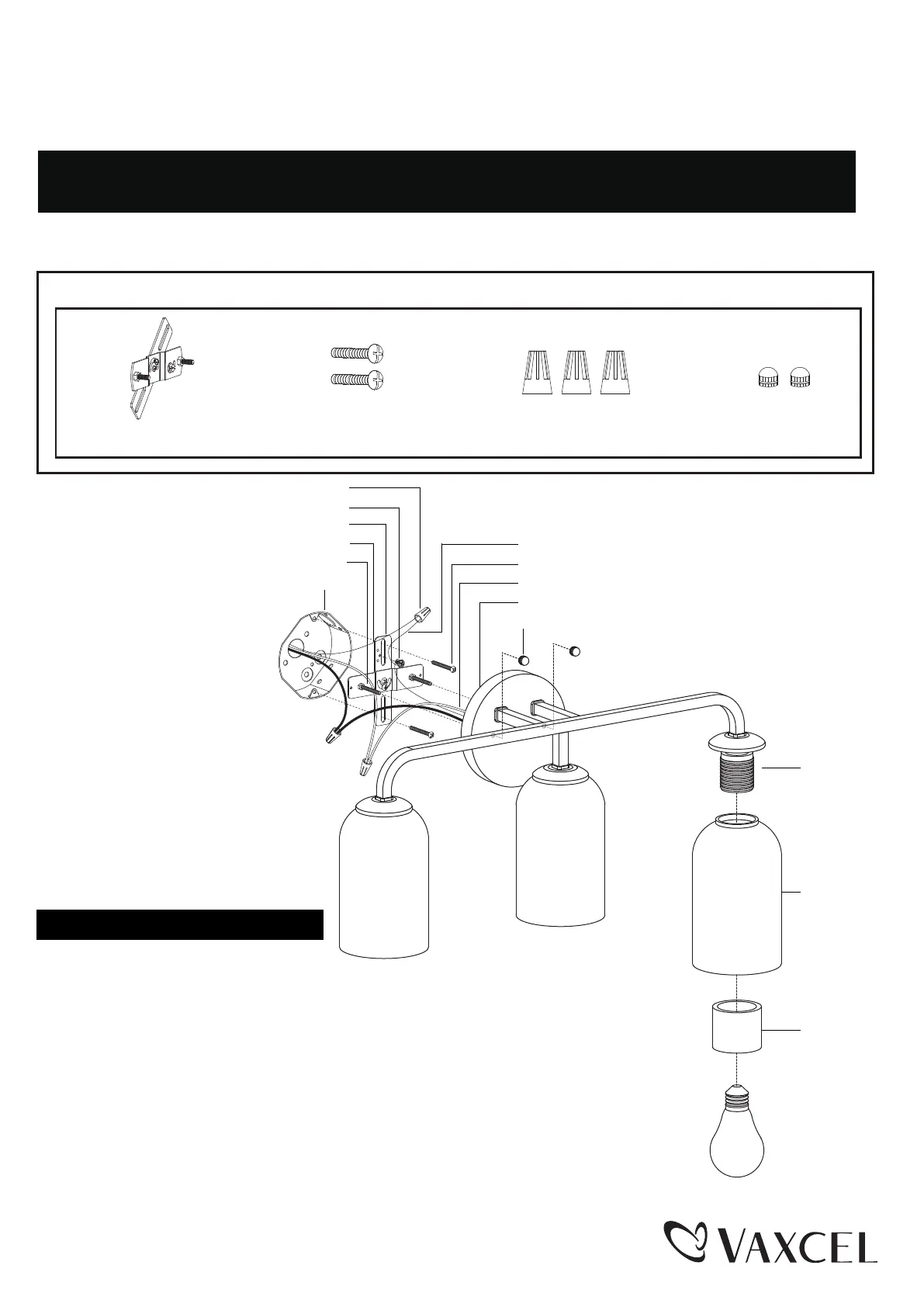

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

W0484

Page 1 / 2

Max. 60W Medium

Base Bulb

(not included)

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Backplate

Bolt Nut (D)

Fixture Mounting Screw

Green Ground Screw

Crossbar Unit (A)

Fixture Wire

Socket

Socket Ring

Glass Shade

Fixture Ground Wire

Turn off the power at fuse or circuit box

Installation Steps

1. Attach the crossbar unit (A) to the outlet box by using two mounting screws (B).

Adjust the length of the preinstalled fixture mounting screws if necessary.

Note: Make sure that the fixture mounting screws are lined up horizontally

to make the fixture level.

2. Pull out the source wires from the outlet box. Make wire connections using

wire connectors (C) as follows:

• Connect the hot wire (black insulation) from the fixture to the black wire from the

power source.

• Connect the neutral wire (white insulation) from the fixture to the white wire from the

power source.

• Attach the fixture ground wire (bare wire) to the crossbar unit (A) with green ground

screw, then depending on local code, connect it to the house ground wire with the

wire connector (C).

Carefully put all of the wires back into the outlet box.

240320
