WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

Page 1 / 2

230406

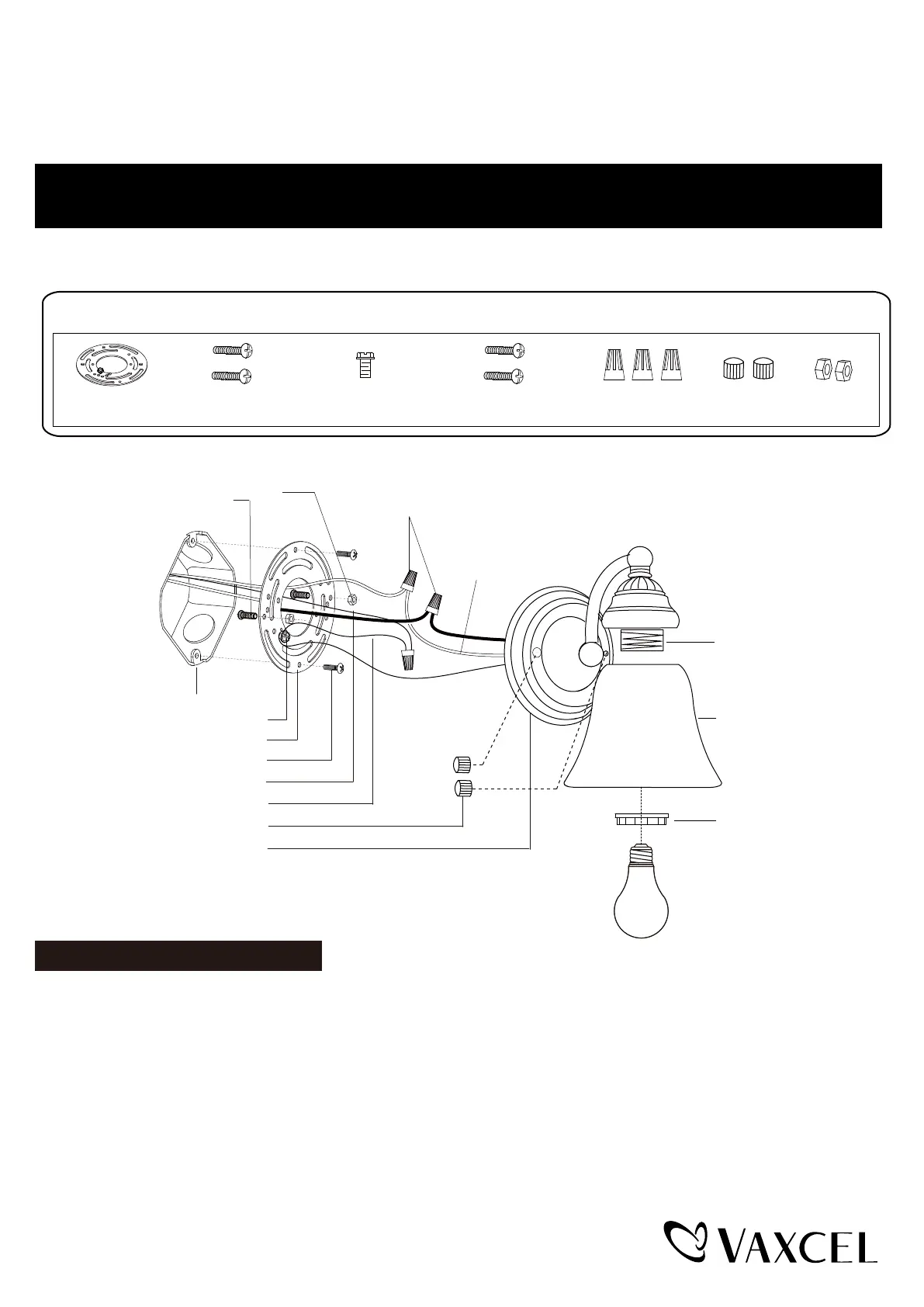

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

VL35122 / VL35123 / VL35124

Bolt Nut (F)

Mounting Screw (B)

Mounting Plate (A)

Green Ground Screw (C)

Wire Connector (E)

House Ground Wire

Fixture Ground Wire

Fixture mounting Screw (D)

Lock Nut (G)

Outlet Box

Fixture Wire

Bolt Nut (F)

Backplate

Max. 100W Medium Base bulb

(not included)

Glass Shade

Glass Holder

Socket Ring

Hardware Package (included):

Mounting Screw (B)Wire Connector (E)Mounting Plate (A)

Lock

Nut (G)Fixture mounting Screw (D)

Green Ground Screw (C)

1. Thread two fixture mounting screws (D) through the mounting plate (A), and secure them with two lock nuts (G).

Adjust the length of the screws if necessary.

Note: Two sizes of screws, 3/4" L and 1" L, are attached in the hardware package, please choose one

to suit your need.

2. Attach the mounting plate (A) to the outlet box by using two mounting screws (B).

3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (E) as follow:

---Connect the hot wire (black insulation) from the fixture to the black wire from the power source.

---Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.

---Attach the fixture ground wire (bare wire) to the mounting plate (A) with the green ground screw (C) ,

and then connect it to the house ground wire with the wire connector (E) .

Carefully put the wires back into the outlet box.

Turn off the power at fuse or circuit box.
