1. Unscrew two ball nuts, remove mounting strap from canopy.

2. Thread the cord through the canopy and Strain Relief. Measure the

desired length of the cord (A) from the canopy to the shade and

Leave additional 9" cord (B) above the canopy(include the canopy).

Then cut off the unnecessary cord.(See Fig.1)

3. Adjust strain relief at 9" position from the top of the cord.

4. Mark the 3" cord (C) from the top of the cord (B). Use a knife to peel

off the insulation of the cord (C) carefully to show the 3 inside wires

out. (See Fig. 1)

Caution : Cutting too deep may cut off three inside wires and

destroy the insulation surface of the three inside wires.

5. Peel off the 3 wires from the top about 3/8" long(D) to expose the copper

for wiring.

6. Attach the mounting strap to outlet box by using two mounting screws.

7. Pull out the source wires from the outlet box. Make wire connections

using wire nuts as follow:

---Connect the hot wire (usually black insulation) from the fixture to the

black wire from the power source.

---Connect the neutral wire (usually white insulation) from the fixture to

the white wire from the power source.

---Attach the fixture grounding wire (usually green insulation or bare wire)

to the mounting strap with the green grounding screw. Then connect it

to the house grounding wire with the wire nut.

Carefully put the wires back into the outlet box.

8. Pull the cord (A) down slightly until the strain relief touches the hex nut .Attach the canopy to the mounting strap by

inserting two screws. then secure it with two ball nuts.

Note: Adjust the strain relief can decrease or increase the length of cord exposing outside.

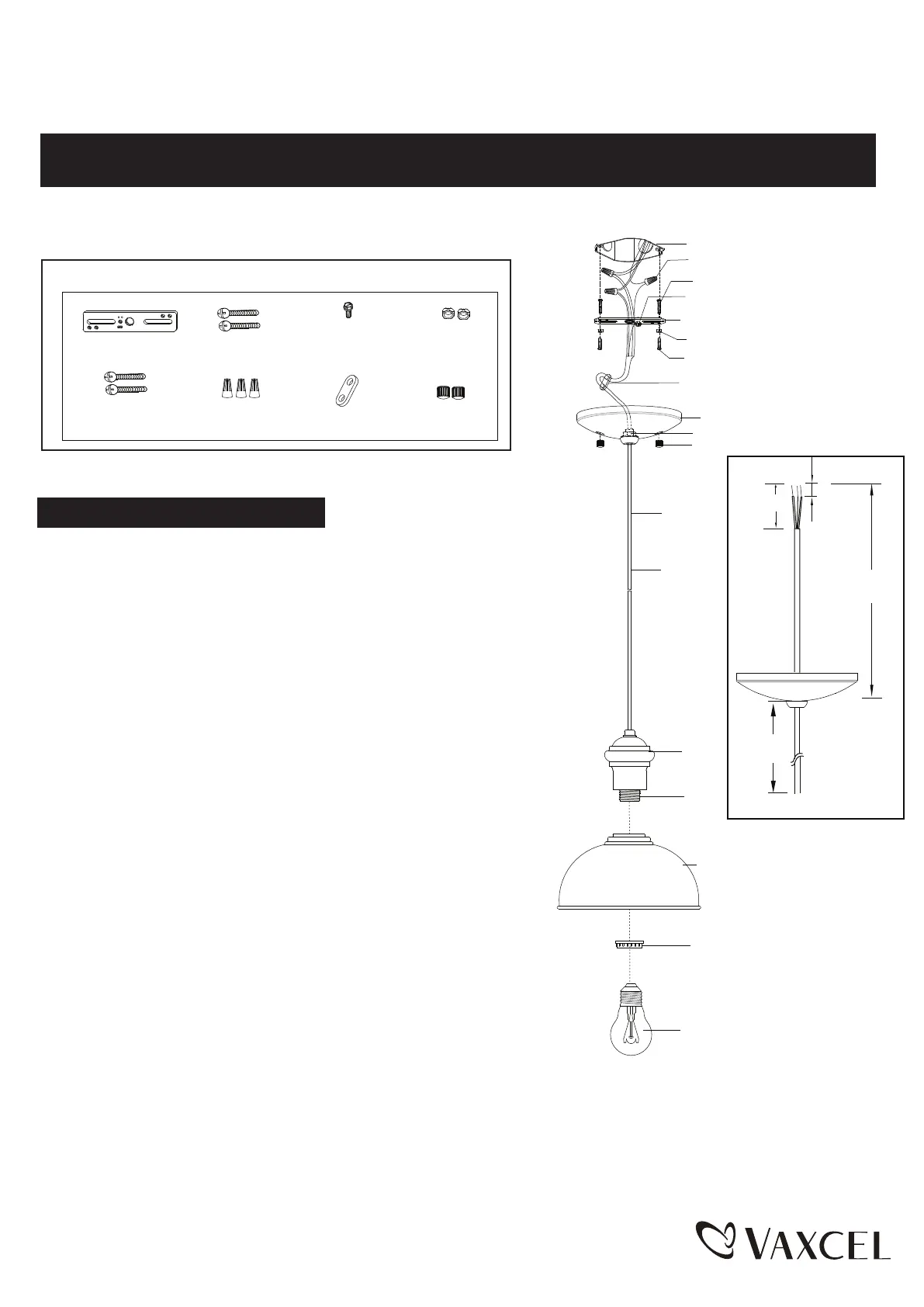

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTION.

T0151 / T0152

141126

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

Mounting Screw (B)

Wire Nut (F)

Strain Relief(G)

Fixture

Shade

Socket

Mounting Strap (A)

Screw (E)

Green Grounding

Screw (C)

Canopy

Ball Nut(H)

Cord(A)

Fixture Wire

Hex Nut

Socket Ring

Lock Nut (D)

Ball Nut (H)

Bulb Type A Max.100W

(not included)

Strain Relief (G)

Mounting Strap (A)

Lock Nut (D)

Mounting Screw (B)

Green Grounding Screw (C)

Wire Nut (F)

Screw(E)

Outlet Box

A

C(3")

D(3/8")

B(9")

FIG.1
