Rev. 10/27/2015 CDL-2000, MANUAL
Copyright 2015 Vestil Manufacturing Co. Page 1 of 7
CDL-2000 BELOW-THE-HOOK D L RUM IFTER
U M M SE AND AINTENANCE ANUAL
Receiving instructions:
After delivery, IMMEDIATELY remove the packaging from the product in a manner that preserves the packaging and
maintains the orientation of the product in the packaging. Then, inspect the product closely to determine whether it
sustained damage during transport. If damage is discovered, immediately record a complete description of the
damage on the bill of lading. If the product is undamaged, discard the packaging.
NOTES:
1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where the product
is used is exclusively the responsibility of the owner/end-user
2) VESTIL is not liable for any injury or property damage that occurs as a consequence of failing to apply either:
a) Instructions in this manual; or b) information provided on labels affixed to the product.
Vestil is also not responsible for any consequential damages sustained as a result of failing to exercise sound
judgment while assembling, installing, using or maintaining this product.
V M CESTIL ANUFACTURING ORP.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail: sales@vestil.com
Table of Contents
Product Specifications…………………………………..……………………………………………………………………… 2
Signal Words…………………………………………………….………………………………………………………………. 3
Safe Use Recommendations……………………………………………………..……………………………………………. 3
FIG. 1: Parts diagram…………………………………………………………………………………………………………….4
Use instructions…………………………………………………………………………………………………………………. 4-5
Inspections & Maintenance……………………………………………………………………………………………………. 5-6
Labeling Diagram……...………………………………………………………………………………………………………… 6
Limited Warranty…...……………………………………………………………………………………………………………. 7
Rev. 10/27/2015 CDL-2000, MANUAL
Copyright 2015 Vestil Manufacturing Co. Page 2 of 7

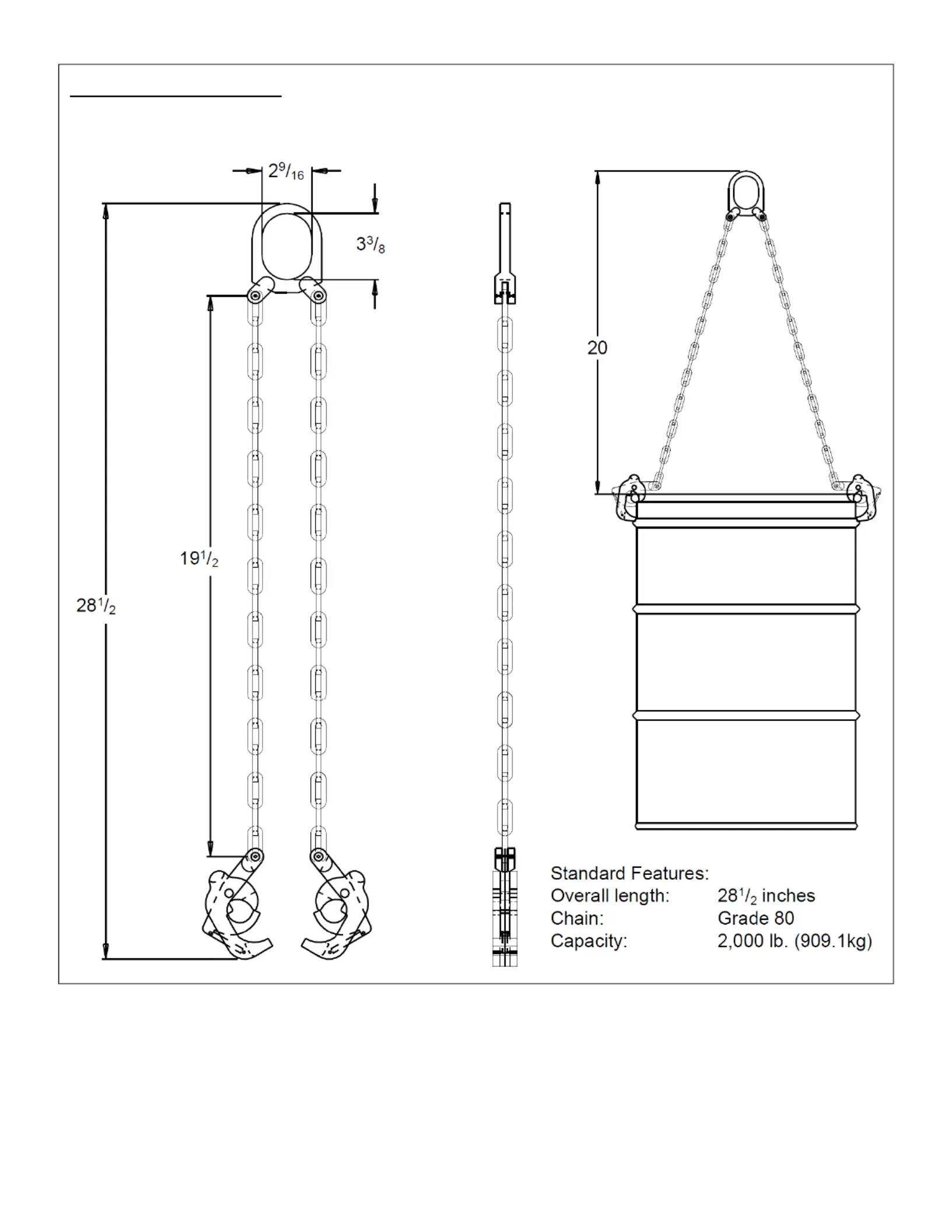

Product specifications:
Dimensions and other product specifications appear in the table below.
Rev. 10/27/2015 CDL-2000, MANUAL
Copyright 2015 Vestil Manufacturing Co. Page 3 of 7
Signal Words:
This manual uses SIGNAL WORDS to indicate the likelihood of personal injuries, as well as the probable seriousness
of those injuries, if the product is misused in the ways described. Other signal words call attention to uses of the
product likely cause property damage. The signal words used appear below along with the meaning of each word:
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or SERIOUS
INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or SERIOUS
INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or MODERATE
injury.
Identifies practices likely to result in product/property damage, such as operation that might
damage the product.
Safety Use Recommendations:
We strive to identify all hazards associated with the use of our products. However, material handling is dangerous and
no manual can address every risk. The most effective means for avoiding accidents and injuries is for the end-user to
exercise common sense and sound judgment whenever using this product.
Improper or careless use might result in serious personal injuries.
Review the safety messages included in the manuals for your crane, trolley, hoist, and any other device used in
conjunction with this drum lifter.
ALWAYS inspect the drum lifter before each use according to the inspection procedures described in the most
recent revision of ASME B30.20. B30.20 also recommends “frequent” and “periodic” inspections.
Properly maintain the device according to the maintenance instructions on pp. 5-6. The instructions supplement
the maintenance recommendations in ASME B30.20.
ALWAYS attach the drum lifter to hoist having a safety hook or to a connection that includes safety mechanisms to
prevent accidental/unintended detachment. DO NOT connect this device to a malfunctioning/damaged safety hook.
Remove all dirt and debris from the drum lid, before attaching the rim clamps to the rim of a drum.
DO NOT remove, alter, or obscure any label. Verify the placement and legibility of all labels as shown in the
“Labeling Diagram” on p. 6. If a label is damaged or unreadable, replace it. DO NOT use the lifter until the
replacement label is installed.
ONLY attach the rim clamps to the top rim of a drum.
DO NOT attempt to lift a drum if the rim is damaged or rusted. The rim grippers might not securely attach to the rim
if it is damaged.
DO NOT lift more than 1 drum at a time.
DO NOT lift a drum lying on its side.
DO NOT sit on or apply any weight or pressure to a suspended drum.
DO NOT attempt to lift a drum that weighs more than the capacity of the lifter. ALWAYS make sure that the net
weight of the drum and its contents does not exceed the rated load of the lifter.
DO NOT lift a load higher than necessary. (See “Use Instructions” on pp. 4-5).
Keep clear of suspended loads and be particularly careful to keep your feet out from underneath the load.
DO NOT walk beneath a raised drum.
DO NOT use the lifter to lift a drum over people or to lift any apparatus that supports people, such as a work
platform. The lifter is designed ONLY to lift 30 and 55 gallon drums made of plastic, fiber, or steel.
DO NOT leave a suspended drum unattended. Always set it down and confirm that the drum is stable. Then,
disengage the load. Disconnect the lifter from the hoist hook or fork truck tine BEFORE leaving the work area.
