DOCK SEALS

MODELS D-150 & D-350

OWNER’S

MANUAL

Revised 0614 23-126-102

A company dedicated to solving ergonomic and material

handling problems since 1955.

Loading Dock Equipment

Contents

Materials List ....................................................1

Receiving Instructions ......................................1

Installation Instructions .....................................1

Parts Drawing

...................................................2

Parts List ...........................................................2

MATERIALS INCLUDED IN BASE KIT

1 Dock Seal Top

2 Dock Seal Sides

5 Angle Brackets

6 Flat Brackets

7 Wall Bolts with Nuts

22 Wood Lag Screws

14 3/8” Nuts

14 Flat Washers

* All buildings and installations are unique. Actual hardware

needed may vary.

RECEIVING INSTRUCTIONS

Every unit is thoroughly tested and inspected prior to ship

ment. However, it is possible that the unit may incur damage

during transit. If damage is noticed when unloading, make

a note of it on the BILL OF LADING. Remove all packing and

strapping material, then inspect the unit again for damage. IF

DAMAGE IS EVIDENT, FILE A CLAIM WITH THE CARRIER

IMMEDIATELY!

INSTALLATION

1. Mount side pieces with vents at bottom.

2. The top piece is identifiable because it does not have

vents on either end.

3. Measure the length of the top foam to determine the out-

side width dimension.

4. Installation of hte sides first is recommended. It is easier

to install all brackets on sides prior to erection.

5. Install top with at least one (1) bolt at each end and one

(1) in the center.

6. For best seal, caulk around perimeter.

Wall mounted brackets (5)

Bolt on leg of the bracket to building

Bolt other leg to side of dock seal using the two lad bolts

provided.

Door jamb brackets (6)

Fasten one side to bracket to door jamb and lag bolt the

other side to the mounting board using the two lad bolts

provided, See Section A-A

D-150 shown.

Distance may vary depending on building structure.

** Dimensions are approximate recommendations.

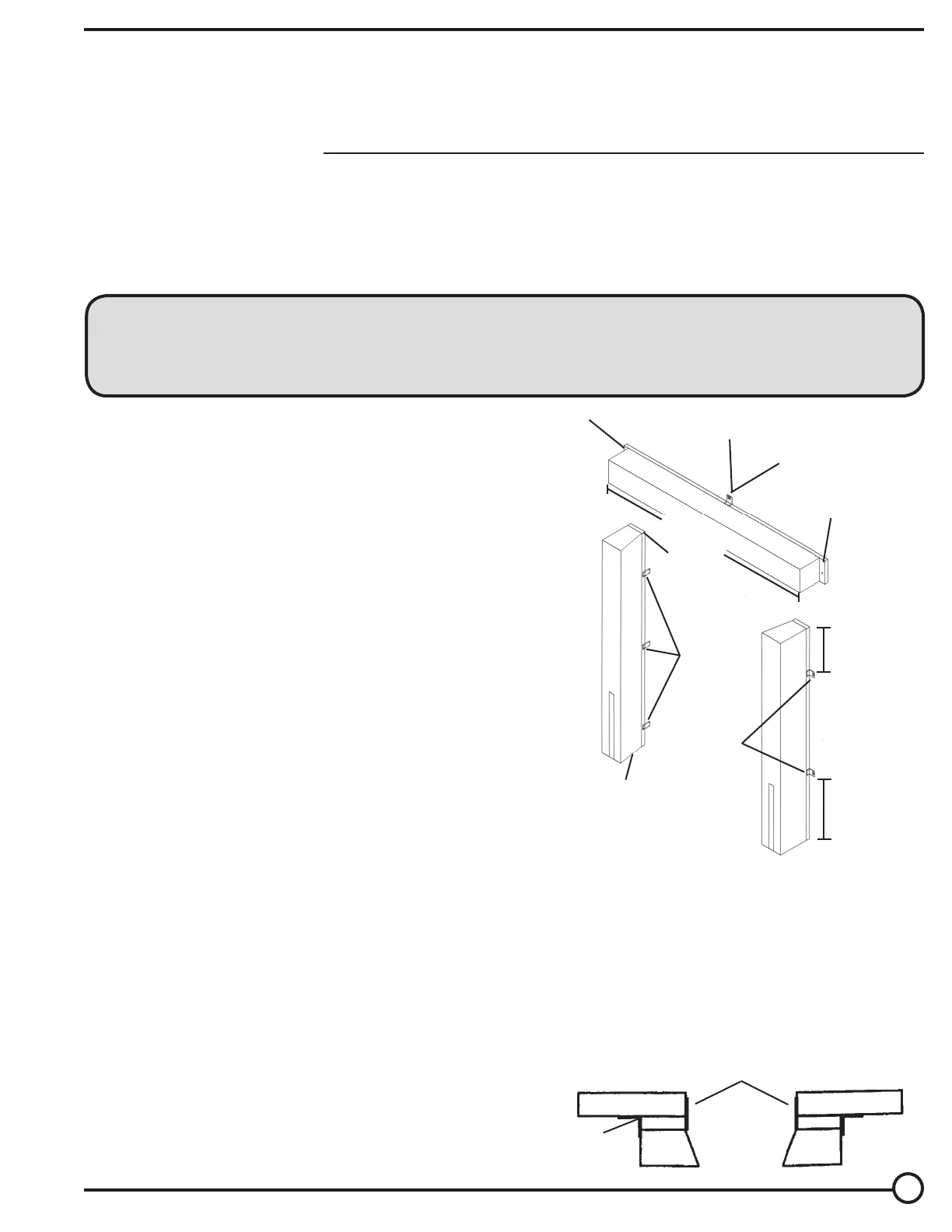

TOP VIEW

Flat Door Jam Brackets

Door Opening

Wall Mounted

Bracket or bolt

through wood edge

Anchor top to wall in

center using bracket.

Caulk to prevent leak.

3” mounting wood

Bolt top to wall

at both ends.

3” top of

bracket to

top of seal

Door Jam

Flat Brackets

Wall Mounted

Brackets

Vents on

Bottom

Top Length

20” **

20” **
