ZE-RVSC62-MK2

ZE-RVSC62-MK2

MOUNTING INSTRUCTIONSREAR VIEW CAMERA

KEY FEATURES

• Compact high resolution rear view camera

• Automatic day and night mode with four night vision IR LED’s

• Built-in microphone

• Normal or mirrored image output

• Aluminum die cast housing

• 2 m length of main wire harness with 15 m extension wire

included

DESCRIPTION:

This ZENEC rear view camera model has been developed for

use with mobile homes and caravans. The use of high quality

parts and materials for best weather resistance and longevity,

as well as the clever construction according to IP69K protection

class allow for a perfect operation in the afore mentioned target

vehicles.

CAUTION

■Use the included connection cable exclusively. Modifying the cable will void your warranty.

■ The camera is water- and dustproof and has been licensed according to the international standard IP69K. However, vehicle clean-

ing using high pressure water and steam jet devices may still lead to damage of IP69K rated camera models by intrusion of water.

■ If the vehicle is treated with a water jet high pressure cleaning device, make sure to keep a distance of at least one meter

between the water nozzle and the camera sensor / housing.

Rear view camera with four IR LED’s

for use with campers, caranvans

and motorhomes

Technical Specifications

Image device: 6.09 mm SONY IMX225LQR CMOS sensor

Lens focal length:f 2.3

TV system: NTSC / 30 fps

View angle: 170° (D) x 135° (H) x 90° (V)

Native sensor resolution: 1305 (H) x 977 (V) pixels

Resolution of video-out: > 420 TV lines

Signal to noise ratio: > 48 dB

Light sensitivity: 0.3 Lux

Video output: 1.0 Vp-p, 75 ohms CVBS

White balance: Auto

Backlight compensation:Auto

Gamma correction:0.45

Gain control: Auto

Sync system: Auto

Power supply: DC 6 - 24 V

Current consumption: 70 mA @12 VDC, ≤ 840 mW

IP protection rating: IP69K

Operating temperature: -30° C ~ +75°C, RH 95% max.

Dimensions (WxHxD):36 x 31 x 40 mm

Weight:60 g

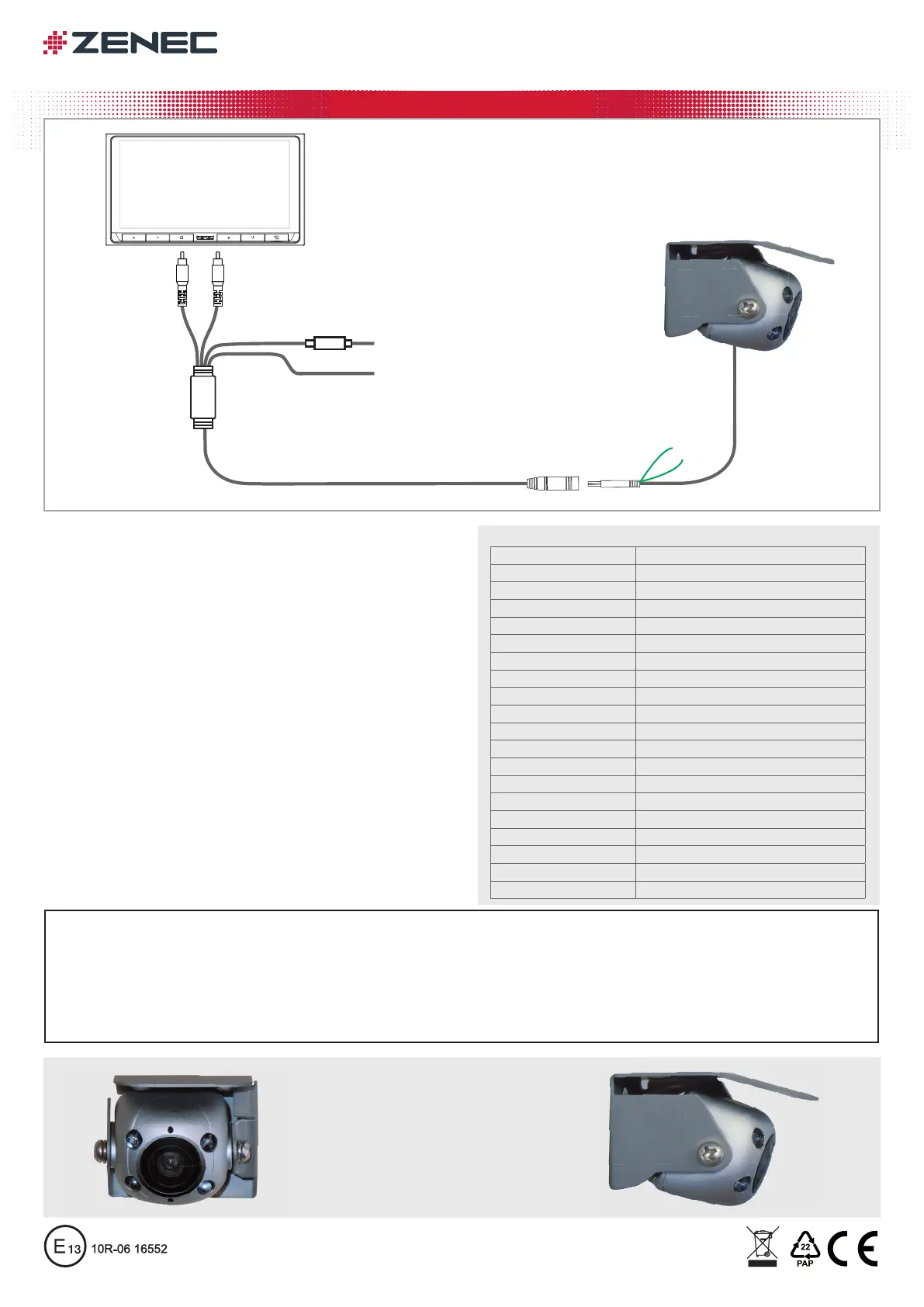

CONNECTION DIAGRAM

2.0 m

Male

Red: DC 6 -24 V

Black: GND

Fuse 0.5 A

15.0 m

Female

4 PIN mini

RCA yellow: Connect to RVC video-in

RCA White: Connect to Mic-in, where applicable

Normal/mirror image:

Green wires apart à normal image (factory default)

Both green wires connected à mirror image

ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland,

EU Legal Representative:

ACR S & V GmbH∙Industriestr. 35∙D-79787 Lauchringen∙ Germany www.zenec.com

Rev. A

MADE IN TAIWAN
