Certified to comply with ANSI A112.18.1

BATH AND SHOWER TRIM KITS

Reliant 3

®

Installation

Instructions

T385.5XX

THREADED INLETS (STOPS)

INLETS

1/2" NPT

5-7/8"

OUTLETS

1/2" NPT

3-3/8"

INLETS 1/2" NPT

OUTLETS

1/2" NPT

3-3/8"

3-3/8"

THREADED INLETS

INLETS

4-1/16"

4-1/16"

INLETS

1/2" NOM.

COPPER

SWEAT

SHR. 1/2" NOM.

COPPER SWEAT

TUB 1/2" NOM.

COPPER SWEAT

2"

SWEAT

INLETS

SHR. 1/2" NOM.

COPPER SWEAT

TUB 1/2" NOM.

COPPER SWEAT

4-1/16"

5-7/8"

SWEAT

INLETS (STOPS)

INLETS

1/2" NOM.

COPPER

SWEAT

M968898 Rev. 1.2 (4/18)

Required Tools

Teflon Tape

Channel Locks

Flat Blade Screwdriver

Plumbers' Putty or Caulking

Phillips Screwdriver

To assure proper positioning in relation to wall, note

roughing-in dimensions.

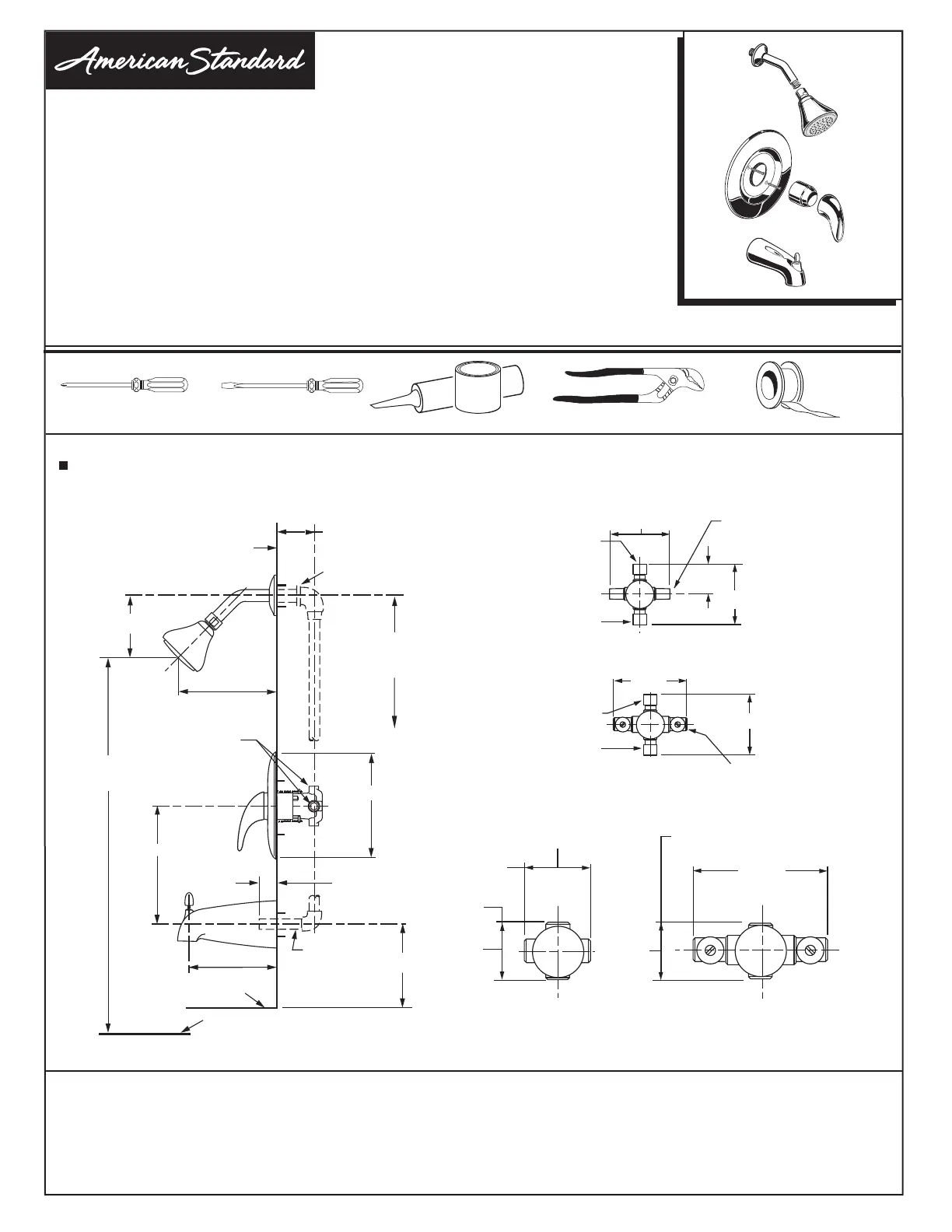

ROUGHING-IN DIMENSIONS

FINISHED WALL

4"

TOP OF TUB RIM

BOTTOM OF TUB

74" FOR HEAD

CLEARANCE

4-1/4" REF.

18" OPTIONAL

5-1/2" REF.

1/2" NPT

1/2" COPPER

7-5/8”

1-1/2" REF.

6" REF.

"SEE ILLUSTRATION "

3/4"" TO 2-3/8"

SHR

TUB

OPTIONAL TO FINISHED

FLOOR USUALLY

BETWEEN 65'' AND 80''

DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.

DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A

CLOTH WITH A COARSE SURFACE.

CARE INSTRUCTIONS:

Thank you for selecting American-Standard...the benchmark

of fine quality for over 100 years.

To ensure that your installation proceeds smoothly--please

read these instructions carefully before you begin.
