AXAMP-CH3
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 12/17/24 INSTAXAMP-CH3
INTERFACE FEATURES
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape
• Wire cutter
• Zip-ties
• Multimeter
TABLE OF CONTENTS
Installation & Installation Options 2 ........................
Adding Amp/Amps to a Factory System 3 .............
Troubleshooting: LED Feedback 4 ...........................
APPLICATIONS
Visit for current application listAxxessInterfaces.com
INTERFACE COMPONENTS
• AXAMP-CH3 Amplifier Integration interface
• AXAMP-CH3 interface harness
• AXAMP-CH3 vehicle T-harness
• Bass knob
Amplifier Integration Interface
Fits Chrysler Select Models 2011-2020
www.MetraOnline.com
MetraOnline.com may be used to assist
with dash assembly instructions. Simply
enter your Year, Make, Model vehicle
into the vehicle fit guide and look for the
Dash Kit Installation Instructions.
• Designed for amplified and non-amplified models
• Provides 6 channels of 5-volt RMS audio
• Non-fading full range output (Channels 5 & 6)
• Includes plug-n-play harnessing
• Simple behind the radio installation
• Dual colored LED Display
• Input Power handling 50 Watts per channel
• Amp turn-on trigger (DC) 250mA
• 2 channel S/PDIF out (Fronts)
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
2
Adding a subwoofer to a factory system:
This feature offers the ability to add a subwoofer to a factory system, whether amplified or non-
amplified (Refer to Page 3)
Adding a full-range amp and subwoofer to a factory system:
This feature offers the ability to add a full-range amp and sub to a factory system, whether
amplified*or non-amplified. (Refer to )Page 3
* For amplified models the amp must be bypassed/unplugged. Use either Axxess AXABH-CH2 or
AXABH-CH4 (sold separately) to bypass the amp for best results.
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Disassemble the dash, unplug all connectors, and then remove the factory radio.*
2. AXAMP-CH3 vehicle T-harness Install the to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. AXAMP-CH3 vehicle T-harness AXAMP-CH3 interface Plug the to the .
4. AXAMP-CH3 interface harness AXAMP-CH3 interface Plug the to the .
5. Connect the amp turn-on wire.
6. Adjust your aftermarket amplifier to a desired listening level.
* For dash disassembly instructions, refer to . Enter the year, make, metraonline.com
and model of the vehicle in the and find instructions under Metra Vehicle Fit Guide
Radio Install kits.
INSTALLATION OPTIONS INSTALLATION
3
REV. 12/17/24 INSTAXAMP-CH3

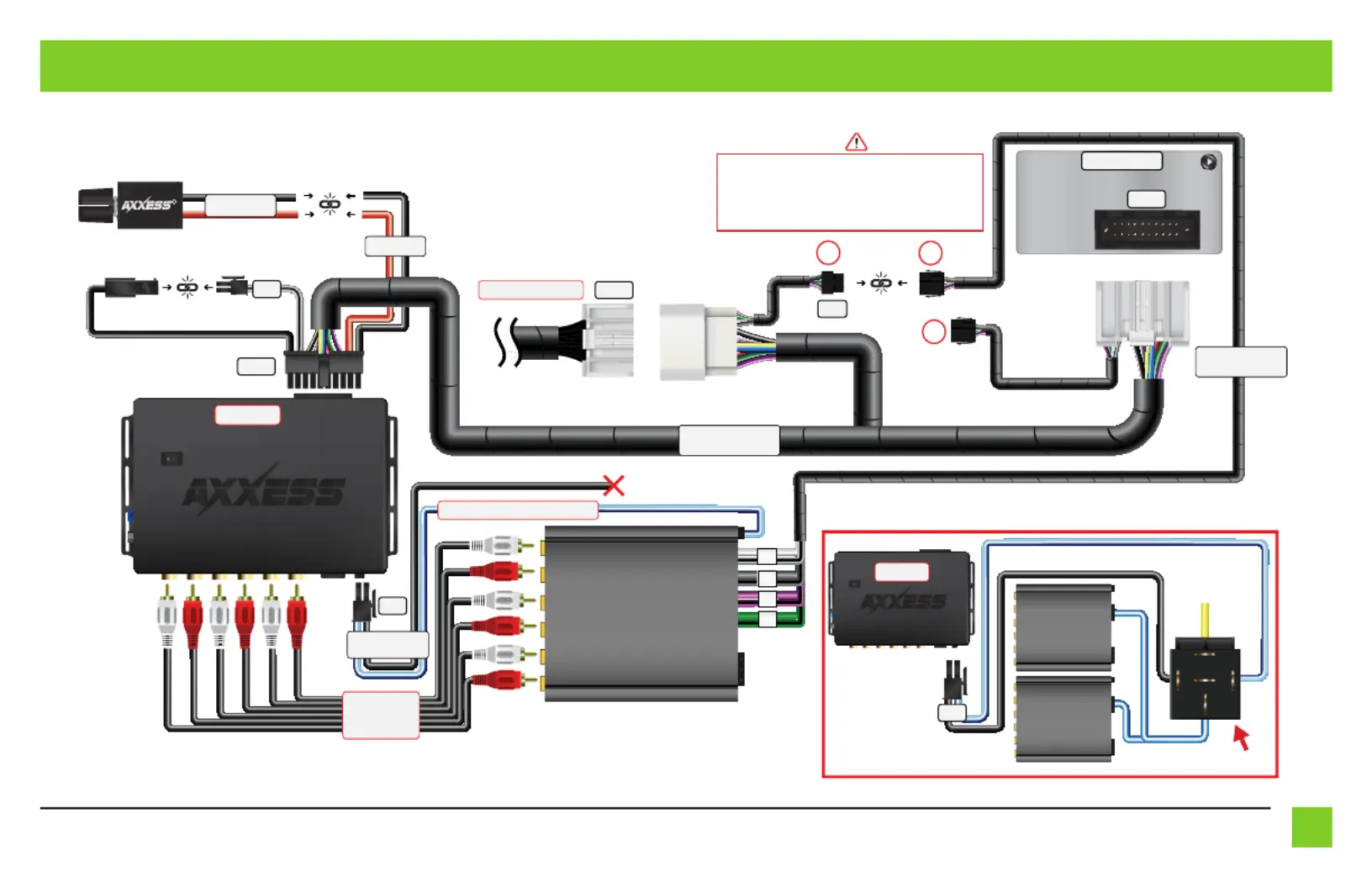

ADDING AMPLIFIER/AMPLIFIERS TO A FACTORY SYSTEM
A
2-Pin
Connect if 2 Pin Amplified
LD-BASSKNOB
LD-BASSKNOB
20-Pin
LED
FRONT
REAR
SUB
2 PIN
20 PIN
TOSS
LINK
CHIME VOL
UPDATE
PORT
Interface
R
LD-PAW-CH3
LED
FRONT
REAR
SUB
2 PIN
20 PIN
TOSS
LINK
CHIME VOL
UPDATE
PORT
Interface
2-Pin
30
86
85
87
To 12v
Constant
2-Pin
RCA Jacks
(sold separately)
Not Used
If connecting multiple amps, Metra recommends incorporating
an ( ). Metra SPDT Relay part #: SPDT Relay not included E-123
SPDT Relay
If system is connect to non-amplified, A . B
Otherwise, refer to for www.Metraonline.com
available amplifier bypass harness and disreguard
. connecters A, Band C from LD-PAW-*** harness
8-Pin
Blue/White - Amp Turn-On Wire
FL
FR
RR
RL
LD-PAW-EXT
1 of 2
LD-PAW-EXT
2 of 2
B
C
Factory Radio
*BACK*
22-Pin
Factory Radio Harness
22-Pin
