L
N
L
N

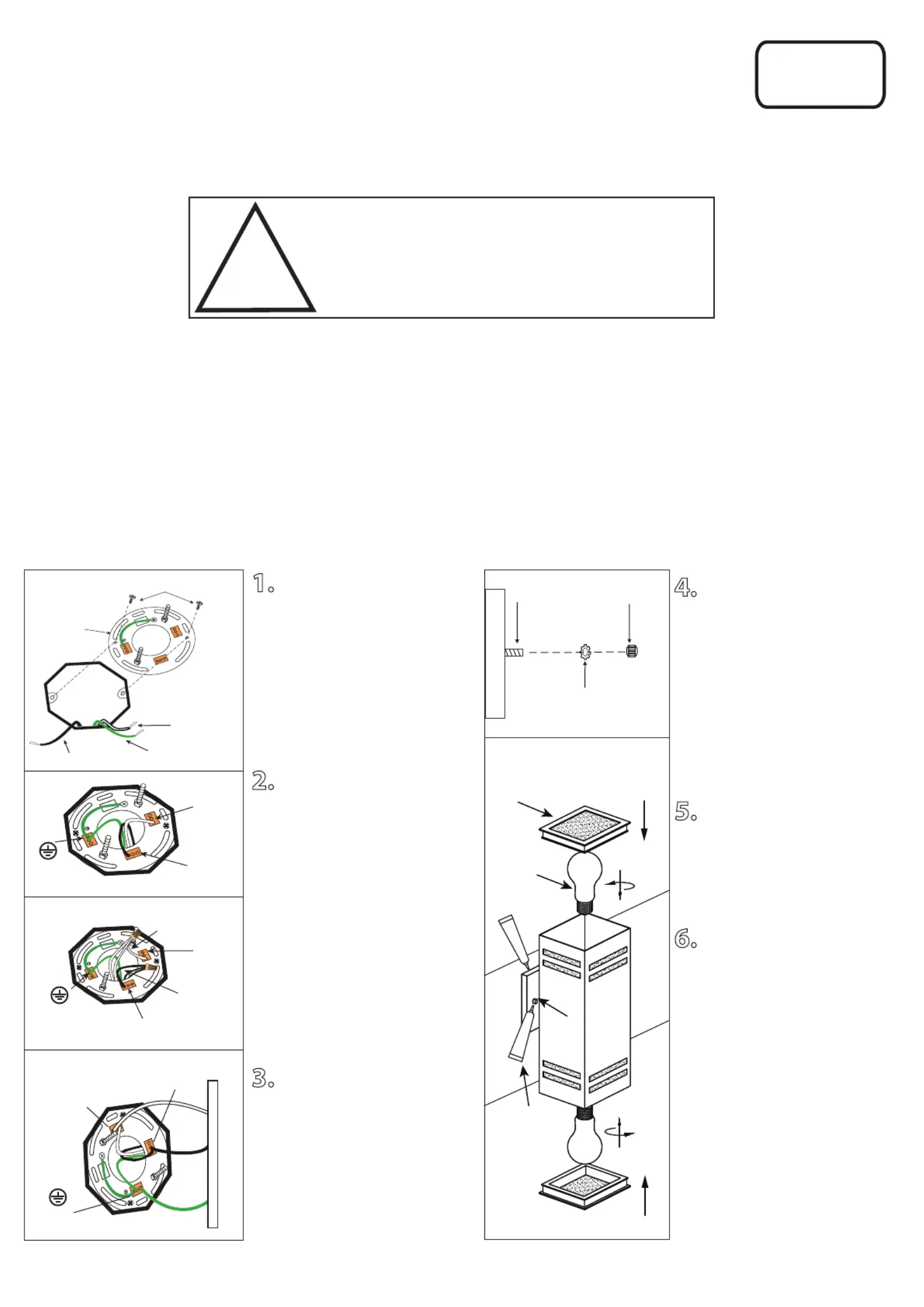

INSTALLATION:
IOL308
IOL309
09/16
SAFETY PRECAUTIONS:
EASY CONNECT®
INSTALLATION INSTRUCTIONS
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
NOTE: Product may not look exactly as shown in figures.
Fixture
Option 1
Option 2
Black (Live)
White
(Neutral)
Green (Ground)
Easy Connect
mounting
bracket
(L)
Black
(Live)
(L)
Black (Live)
(L)
Black (Live)
(N)
White
(Neutral)
(N)
White
(Neutral)
(N)
White
(Neutral)
Green
(Ground)
Green
(Ground)
Green
(Ground)
Jumper Wire
Jumper Wire
Electrical
box screws
1. Attach easy connect
mounting bracket to electrical
box with electrical box screws
(not included).
2. Option 1: Connect (push)
electrical wires from electric box
(house wiring) into correct
inserts.
Option 2: For multiple black
(live) & white (neutral) wires
joined in the electrical box
(house wiring), attach a single
“black” and “white” Jumper Wire
before connecting. Strip 7mm
from a 6” Jumper Wires (AWG
12-24) supplied. Then connect
(push) wires into correct inserts.
3. Connect (push) electrical
wires from fixture into correct
inserts.
Star
Washer
Stud
Cap
Nut
Cap
Nut
Fixture
4. Tuck electrical wires into
electrical box and position
fixture over studs on mounting
bracket assembly. Secure
fixture in place with star
washers and cap nuts.
5. Install proper bulb type
and wattage (not included).
Push covers onto the fixture.
6. After Installation, seal
around the top and side
perimeter between the fixture
and the wall surface with
weather resistant caulking. The
bottom should be left
un-caulked to prevent moisture
build-up. Apply a small amount
of weather resistant caulking
around the side perimeter
between the cap nut and
mounting plate.
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
3. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY
A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH
A CLEAN, SOFT CLOTH.
L
N
L
N
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
ITel: (613) 342-5424, Fax: (800) 263-4598
Cover
Bulb
Wheather
Resistant
Caulking
(not included)
Produktspezifikationen
| Marke: | Canarm |
| Kategorie: | Beleuchtung |
| Modell: | Tay IOL308BK |
