NOTE: Product may not look exactly as shown in figures.

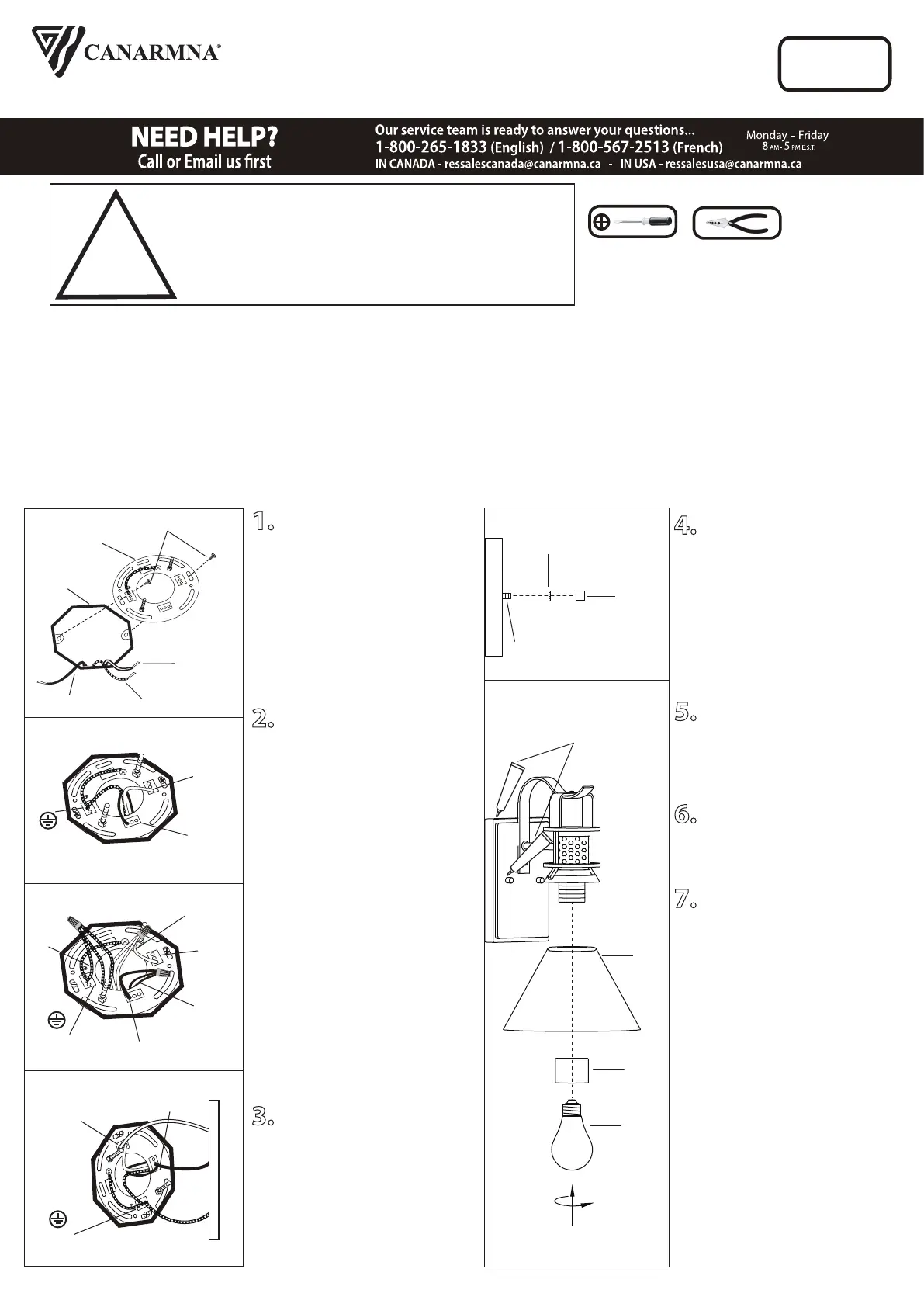

1. Attach Easy Connect™
mounting bracket to electrical
box with electrical box screws
(not included).
2. Option 1: Connect (push)
electrical wires from electric box
(house wiring) into correct
inserts.
Option 2: For multiple green
(ground), black (live) and
white (neutral) wires joined in
the electrical box (house wiring),
attach a single “green”, “black”
and “white” jumper wire before
connecting. Strip 7mm from the
6” jumper wires supplied. Then
connect (push) wires into the
correct inserts.
3. Connect (push) electrical
wires from fixture into correct
inserts.
4. Tuck electrical wires into
electrical box and position
fixture over studs on mounting
bracket assembly. Secure
fixture in place with star
washers and cap nuts.
5.
Remove spinner nut from
socket. Position the glass on
lamp and secure with spinner
nut.
6. Install specified bulb type
and wattage (not included).
7. After installation, seal
around the top and side
perimeter between the fixture
and the wall surface with
weather resistant caulking. The
bottom should be left
un-caulked to prevent moisture
build-up. Apply a small amount
of weather resistant caulking
around the side perimeter
between the cap nut and
mounting plate.
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
3. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY
A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH
A CLEAN, SOFT CLOTH.
Tel: (613) 342-5424, Fax: (800) 263-4598
L
N
L
N
Fixture
Option 1
Option 2
Black (Live)
White
(Neutral)
Green (Ground)
(L)
Black
(Live)
(L)
Black (Live)
(L)
Black (Live)
(N)
White
(Neutral)
(N)
White
(Neutral)
(N)
White
(Neutral)
Green
(Ground)
Green
(Ground)
Green
(Ground)
Jumper Wire
Jumper
Wire
Jumper Wire
Electrical
box screws
Electrical
Box
L
N
L
N
EASY CONNECT
INSTALLATION INSTRUCTIONS
TM
Easy Connect
mounting
bracket
TM
Stud
Cap
Nut
Star
Washer
Bulb
Fixture
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
INSTALLATION:
SAFETY PRECAUTIONS:
Weather Resistant
Caulking
(not included)
Spinner
Nut
Glass
Cap
Nut
