98957C (Rev. B - 2/13)
(L)VRCTL(R)8FR*1D (L)VRCTLFRDD*C
10
Uses HFC-134A refrigerant
VRCTLFR Series Barrier-Free Water Coolers
T M
NOTE: Non-refrigerated units do not include all electrical and
refrigeration components shown above. Other components and
rough-in are the same as shown.
INSTALLATION, CARE & USE MANUAL
20
38, 39
56
42
1, 4
16
6, 7, 22, 41
See Fig. 6
See Fig. 3
25
25
45
54
43
19
11
32
37
45
45
9, 12, 13
21
49
45
37
8
67 (TL)
68 (TLR)
33
21
45
23, 30, 65, 66
42
16
16
23, 30
2, 3, 5
1, 4
51
53
50
50
57
58
59
21
63, 64
55
69 (TL)
70 (TLR)
Page 2
98957C (Rev. B - 2/13)
(L)VRCTL(R)8FR*1D (L)VRCTLFRDD*C
F
D
F
E
E
2 7/16"
63mm
10"
254mm
5"
127mm
1 1/2"
38mm
A
37 1/2"
952mm
6 1/2"
166mm
ORIFICE
HEIGHT
ALTURA DEL
ORIFICIO
HAUTEUR DE
L'ORIFICE
ORIFICE
HEIGHT
ALTURA DEL
ORIFICIO
HAUTEUR DE
L'ORIFICE
C
L
C
L
1 3/8"
35mm 1 3/8"
35mm
5 3/4"
146mm 5 3/4"
146mm
1 3/8"
35mm 1 3/8"
35mm
5 3/4"
146mm 5 3/4"
146mm
18 1/16"
459mm
FINISHED FLOOR
PISO ACABADO
PLANCHER FINI
5/16" (8mm) DIA. (10 HOLES)
8mm (10 AGUJEROUS)
8mm (10 TROUS)
20 1/8"
511mm
4 1/2"
114mm
6 1/4"
159mm
18 3/4"
476mm 25 1/8"
638mm
B
3 1/2"
89mm
C
RIM HEIGHT
ALTURA DEL
ORIFICIO
HAUTEUR DE
L 'ORIFICE
18 5/8"
474mm
12 5/16"
312mm
4 3/4"
121mm
27"
686mm
31 7/8"
810mm
32 15/16"
837mm
39 1/2"
1003mm
2 5/8"
67mm
8"
203mm
13 7/8"
351mm
20 3/8"
518mm
HANGER BRACKET
FIJADOR DE SUSPENSION
SUPPORT DE SUSPENSION
*
6 3/4"
173mm

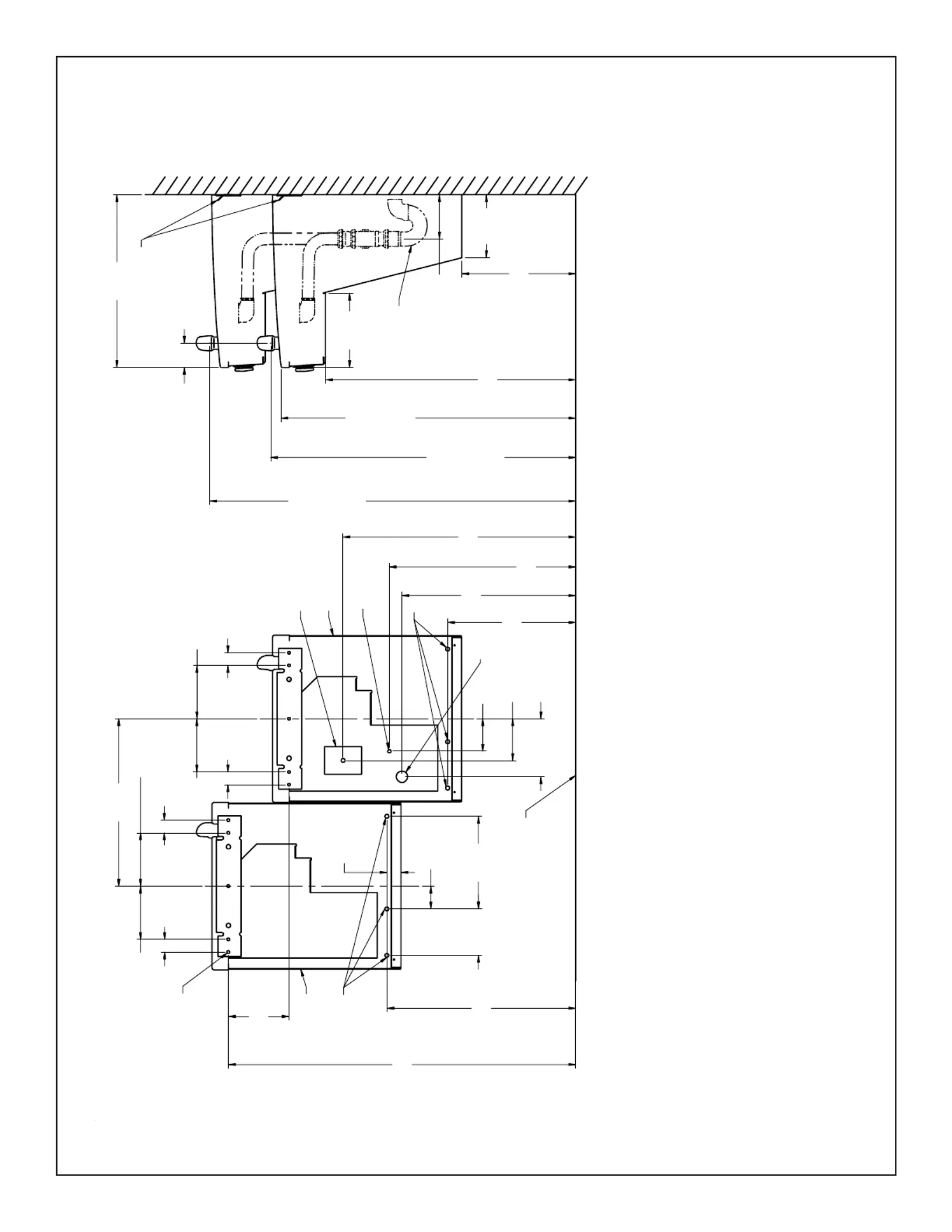

LEGEND/LEYENDA/LÉGENDE
A = RECOMMENDED WATER SUPPLY LOCATION 3/8 O.D. UNPLATED COPPER TUBE CONNECT STUB WITH SHUT OFF (BY OTHERS) 3 IN. (76mm) MAXIMUM OUT FROM WALL
B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/2” O.D. DRAIN STUB 2 IN. OUT FROM WALL
C = 1-1/2 TRAP NOT FURNISHED
D = ELECTRICAL SUPPLY (3) WIRE RECESSED BOX
E = INSURE PROPER VENTILATION BY MAINTAINING 6" (152 mm) (MIN.) CLEARANCE FROM CABINET LOUVERS TO WALL.
F = 7/16 BOLT HOLES FOR FASTENING UNIT TO WALL
FIG. 2
REDUCE HEIGHT BY 3” FOR INSTALLATION OF CHILDRENS ADA COOLER
*
ADA REQUIREMENT
Page 3
98957C (Rev. B - 2/13)
(L)VRCTL(R)8FR*1D (L)VRCTLFRDD*C
Stainless Steel
PANEL COLOR
COLOR TABLE
Item No. 37
Part No.
Item No. 32
Part No.
Item No. 34
Part No.
Item No. 35
Part No.
Item No. 36
Part No.
28525C 28519C
28516C
28522C 22955C
Refrig. Unit
Stainless Steel
PANEL COLOR
COLOR TABLE
Item No. 37
Part No.
Item No. 33
Part No.
Item No. 34
Part No.
Item No. 35
Part No.
Item No. 36
Part No.
28528C 28519C
28516C
28522C 22955C
Left Unit
IMPORTANT
ALL SERVICE TO BE PERFORMED BY
AN AUTHORIZED SERVICE PERSON
HANGER BRACKETS & TRAP
INSTALLATION
1) Remove hanger bracket fastened to back of cooler by removing one (1)
screw.
2) Mount the hanger bracket and trap as shown in Figure 2.
NOTE: Hanger Bracket MUST be supported securely. Add fixture support
carrier if wall will not provide adequate support.
IMPORTANT:
y6 1/4 in. (159mm) dimension from wall to centerline of trap must be
maintained for proper fit.
yAnchor hanger securely to wall using all five (5) 1/4 in. dia. mounting
holes.
3) Install straight valve for 3/8" O.D. tube.
INSTALLATION OF COOLER
4) Hang the cooler on the hanger bracket. Be certain the hanger bracket is
engaged properly in the slots on the cooler back as shown in Figure 2.
5) Loosen the two (2) screws holding the lower front panel at the bottom of
cooler base and two (2) screws at the top (Use torx bits sold separately).
Remove the front panel and set aside.
6) Connect water inlet line--See Note 4 of General Instructions.
7) Remove the slip nut and gasket from the trap and install them on the cooler
waste line making sure that the end of the waste line fits into the trap.
Assemble the slip nut and gasket to the trap and tighten securely. Recom-
mend fastening cooler to wall using 7/16 bolt holes. (see fig.2, "F")
START UP
Also See General Instructions
8 ) Stream height is factory set at 45-50 PSI. If supply pressure varies
greatly from this, adjust screw using the access hole in the pushbutton
(insert screwdriver). CW adjustment will raise stream and CCW adjust-
ment will lower stream. For best adjustment, stream should hit basin
approximately 6-1/2” (165mm) from bubbler.
Fig. 3
15
1
4
1

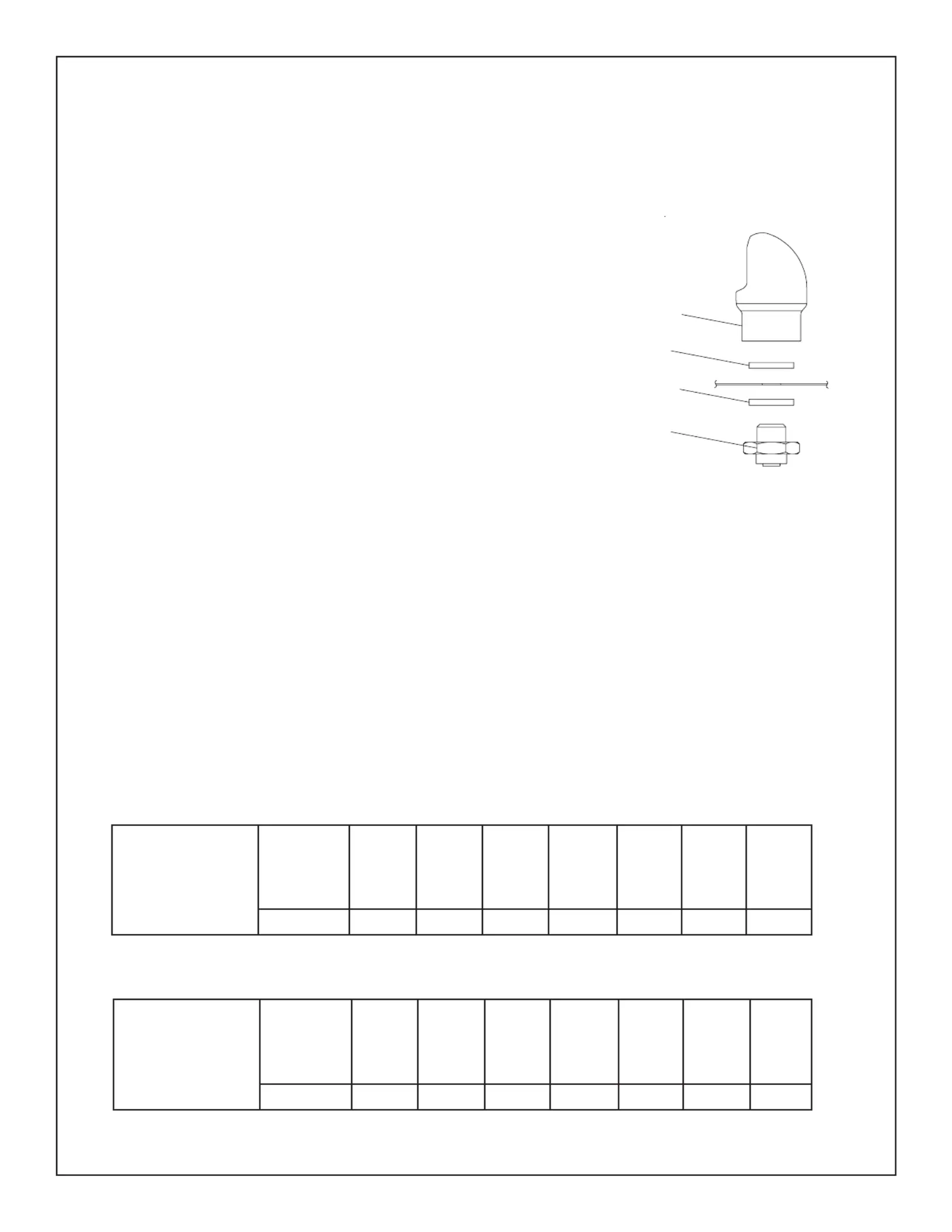

VANDAL RESISTANT
BUBBLER DETAIL
Item No. 69
Part No.
28536C
Item No. 70
Part No.
28562C
Item No. 67
Part No.
28539C
Item No. 68
Part No.
28559C
