Seite 1/4

Thank you for purchasing this Super-speed -port USB3.0 hub. 10

It provides an ideal solution to expand USB3.0 ports from 10

one single 3.0 host port. It provides a wide range self power USB

source (+7~24VDC from 2-pin Terminal Blocks) to provide

enough power on US .0 buses. B3

Features:

✓ Compliant with USB Specification Revision 3 .0

✓ Rigid and Wall-mountable Metal Case

✓ Supports DIN RAIL Mounting Kit

✓ Provides Downstream USB3.0 Facing Ports 10

✓ Supports 5Gbps (Super-speed), 480Mbps (High-speed), 12Mbps

Full-speed) and 1.5Mbps (Low-speed) Speed

✓ Supports Surge and 15KV ESD Protection for Each Port

✓ Multi Transaction Translators (TT)

✓ Support BC v1.2: SDP, CDP and DCP modes

✓ Supports Fast-Charging Feature up to 2.4A

✓ Supports USB Screw-Lock Cable Mechanism

EX-1110HMVS

10 Port USB3.0 - Metal Hub with

Surge Protection and DIN RAIL Mounting Kit

1. Introduction

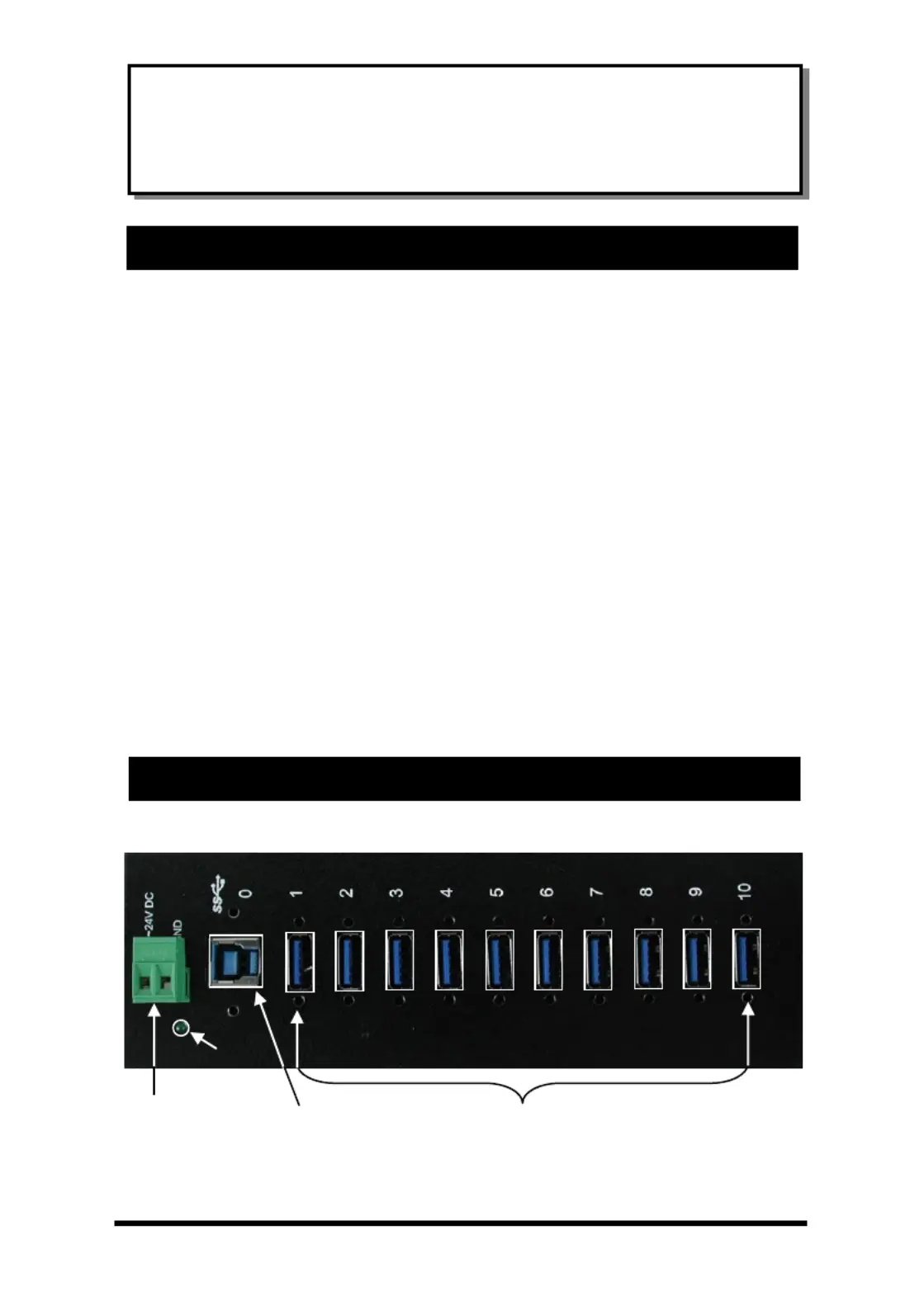

2. Connector Layout

USB3.0 Upstream

Port Connector

10 USB3.0 Downstream Port

Connectors

DC Power Input

Connector

Power LED

10-Port USB3.0 Metal Hub with Surge Protection and DIN RAIL Mounting Kit



USB3.0 Upstream Port Connector: Type-B connector from

upstream USB3.0 port. It is connected from host or another

USB3.0 hub. Supports both normal and screw-lock type USB

cables.



USB3.0 Downstream Port Connectors: There are Type-A 10

connectors for USB3.0, USB2.0 or USB1.1 devices. They

support both normal and screw-lock type USB cables.



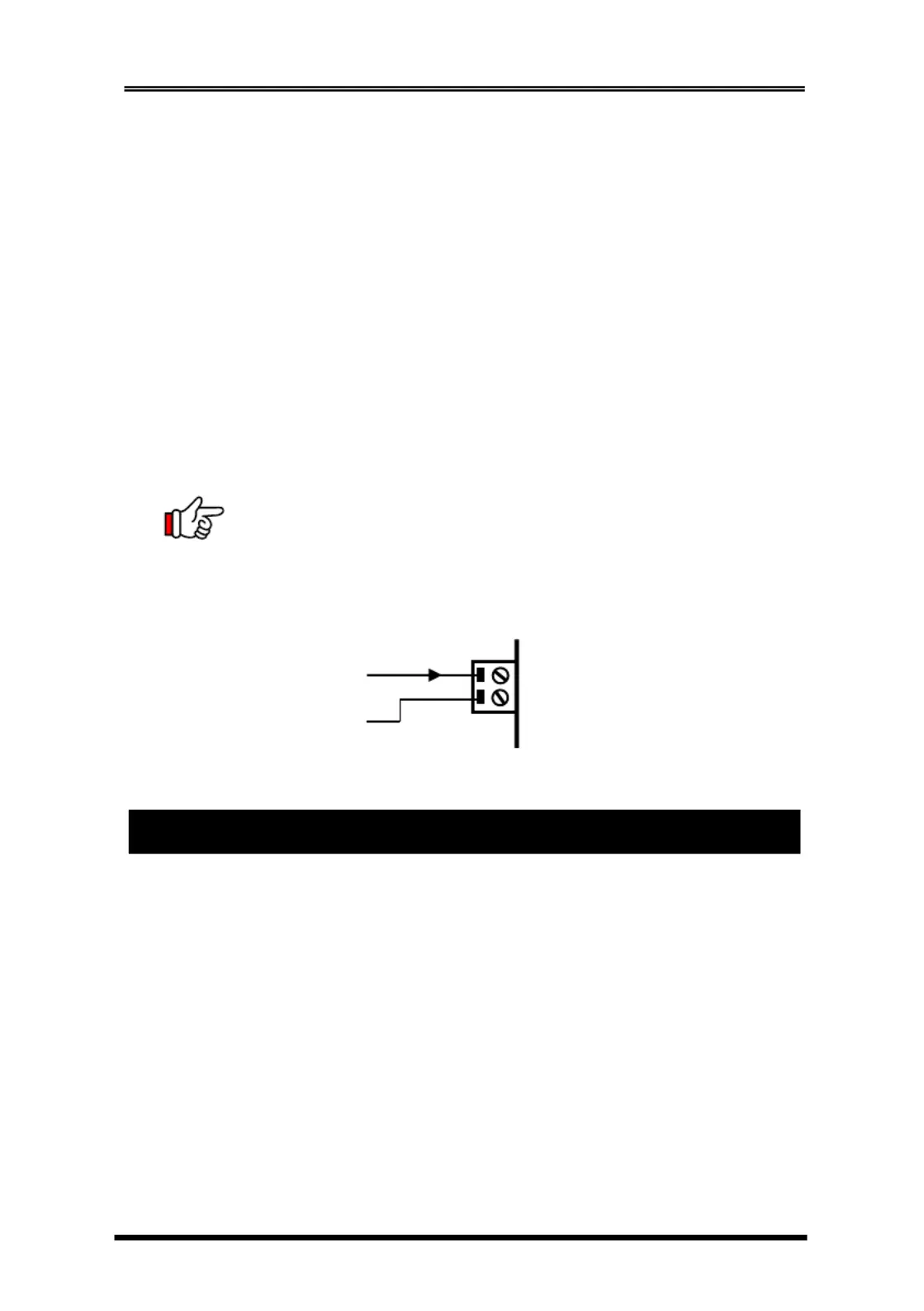

Self Power Input Connector: This 2-pin (one pin for positive

voltage and the other GND) terminal block pin is

connector used to connect strong wer to self-power is po

the hub, the voltage n be in the range from +7V to ca

24VDC.

WARNING!!

Please make sure the polarity of the input power should be

correctly match with the terminal block pins to function ed

properly.

1. Use static electricity discharge precautions.

Remove possible static discharge potential from any

objects that the hub may come in contact with before

installation. This can be accomplished by touching a bare

metal chassis rail after you have turned off the power.

2. Apply power (range from +7V to 24V) to the 2-pin DC

Terminal Block Connector. The hub was self-powered by

this connector. Since each downstream port can draw up

to 2.4A in Apple Fast-Charging mode, the input power’s

watt should meet the minimum requirement of the total

downstream ports.

3. Hardware Installation

+7~24V

GND

10-Port USB3.0 Metal Hub with Surge Protection and DIN RAIL Mounting Kit

3. Connecting USB Host cable: The host cable could be

either a standard A- -B USB3.0 cable or an optional to

A- -B USB3.0 screw-lock cable. Please connect the to

type-A end connector of the cable to your host PC’s

USB3.0 port, then inse the type-B end connector to this rt

hub. Since the USB hub is plug- -play, you don t have and ’

to turn off your host computer when installing the hub.

4. Connect the USB devices to the downstream ports of this

hub.

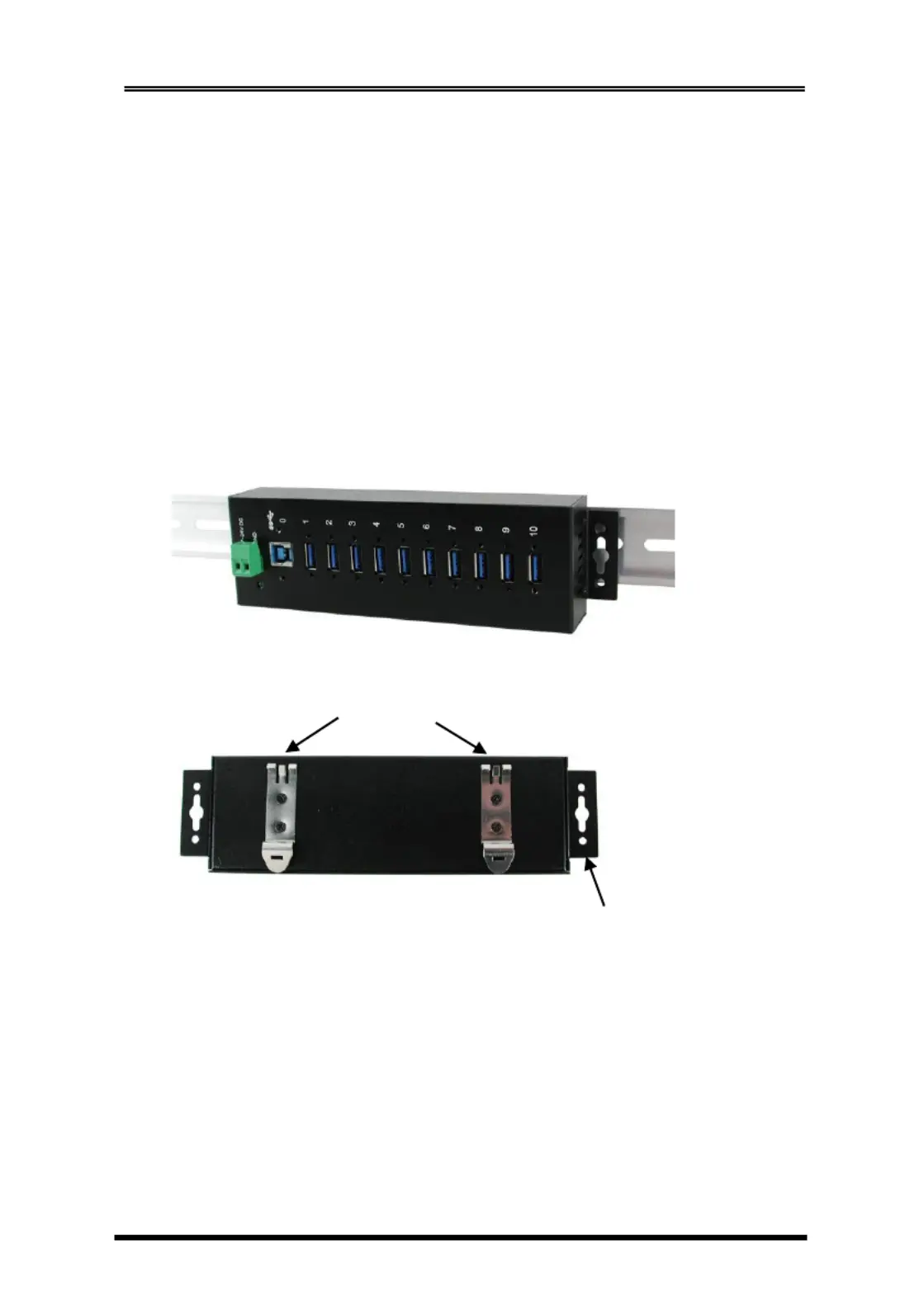

5. Mount your hub on the wall or DIN RAIL if required.

DIN RAIL Clips

Wall mounting holes

Produktspezifikationen

Marke:	EXSYS
Kategorie:	USB-Hub
Modell:	EX-1110HMVS
Breite:	197.7 mm
Tiefe:	55.5 mm
Gewicht:	700 g
Mitgelieferte Kabel:	USB
Produktfarbe:	Schwarz
Höhe:	31 mm
Energiequelle:	USB
Betriebstemperatur:	0 - 55 °C
Relative Luftfeuchtigkeit in Betrieb:	5 - 95 %
Betriebsanleitung:	Ja
Temperaturbereich bei Lagerung:	-20 - 85 °C
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A:	10
Eingangsspannung:	7 - 24 V
Unterstützte Linux-Betriebssysteme:	Ja
Hostschnittstelle:	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Datenübertragungsrate:	5000 Mbit/s
USB:	Ja
Anzahl Anschlüsse:	10
Druckanstiegsschutz:	Ja
Hub-Schnittstellen:	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Terminalblock-Anschluss:	Ja
