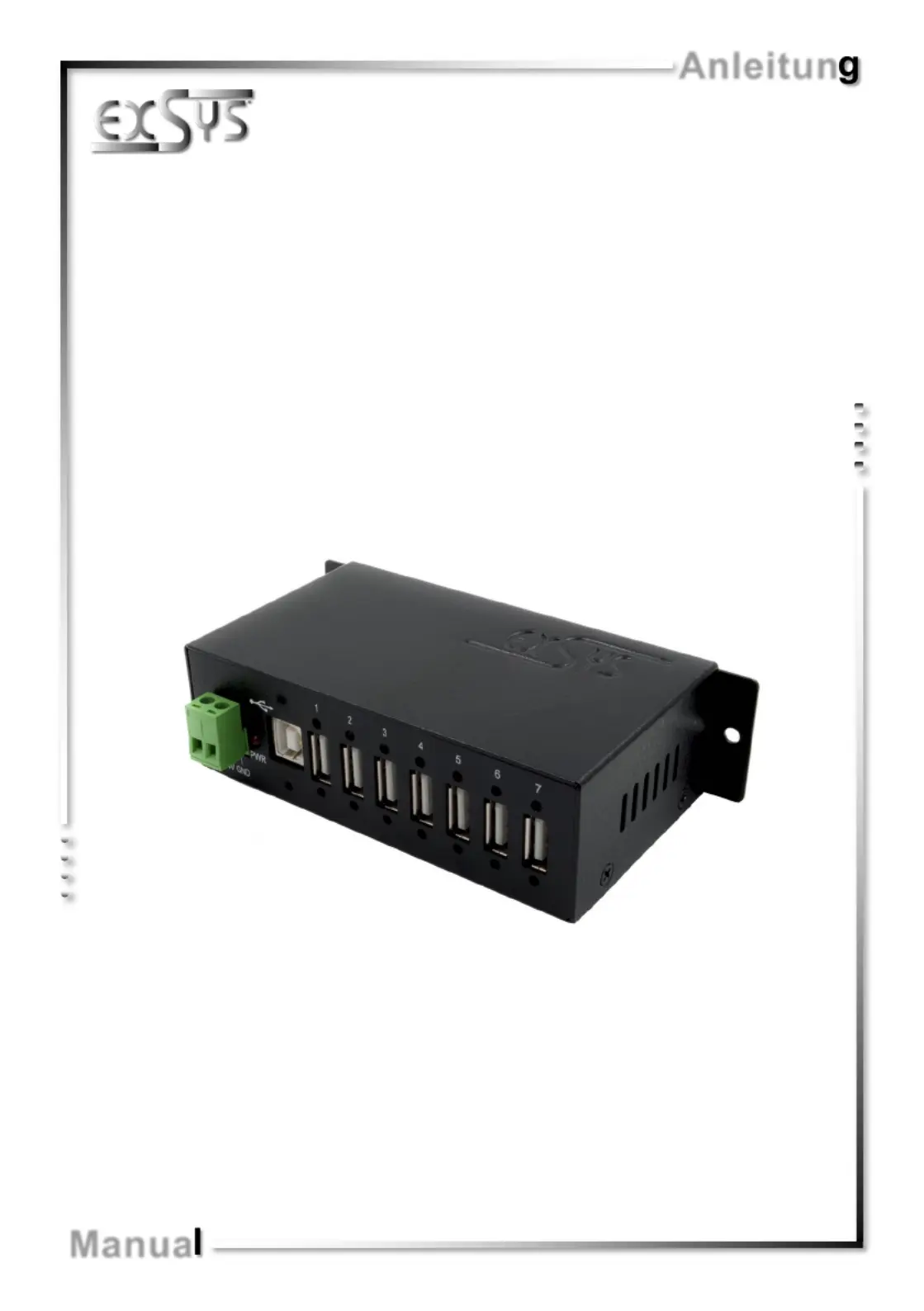

7 Port USB 2.0 Metal HUB (DIN Rail) -

with 15KV ESD Surge Protection

EX-1177HMVS

7 Port USB 2.0 Metall HUB (DIN Rail)-

mit 15KV ESD Überspannungsschutz

Manua

Anleitun

Vers. 1.2 / 08.02.24

Schweiz:

EXSYS Vertriebs GmbH

Dübendorfstrasse 17

8602 Wangen

www.exsys.ch

Deutschland:

EXSYS Vertriebs GmbH

Industriestraße 8

61449 Steinbach

www.exsys.de

- EX 1177HMVS

1. Beschreibung···································································································· 3

2. Lieferumfang····································································································· 3

3. Aufbau, Anschlüsse & Jumper Einstellungen ························································· 4 5-

3.1 Aufbau························································································································ 4

3.2 Anschlüsse················································································································4 5-

3.3 Jumper Einstellungen ···································································································· 5

4. Hardware Installation ··························································································· 6

5. Treiber Installation ······························································································ 6

6. Reinigung ········································································································· 6

7. Technische Daten ······························································································· 7

8. Technische Zeichnung ························································································· 7

1. Description ······································································································· 8

2. Extent of Delivery ······························································································· 8

3. Layout, Connections & Jumper Settings ····························································· 9-10

3.1 Layout ························································································································ 9

3.2 Connections ············································································································ 9-10

3.3 Jumper Settings ·········································································································· 10

4. Hardware Installation ·························································································· 11

5. Driver Installation ······························································································· 11

6. Cleaning 11

7. Technical Information ························································································· 12

8. Technical Drawing ····························································································· 12

Inhaltsverzeichnis

Index

EX- 1177HMVS Deutsch

Der EX 1177HMVS ist ein USB 2.0 Metall HUB für bis zu 7 Endgeräte. Der Hub ist mit 7 Ports für -

Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse

von 1.1 bis 3.1. Jeder Anschluss an der EX 1177HMVS ist zusätzlich verschraubbar. Durch die -

Stromversorgung über den Terminal Block, werden an jedem Port die vollen 500mA zur Verfügung

gestellt. Der USB 2.0 Bus unterstützt optimal die Leistung des schnellen Terminus Chipsatz. Der EX-

1177HMVS gewährleistet so eine sichere Datenübertragung und exzellente Performance von bis zu

480Mbit/s. Er unterstützt den Self Power und Bus Power Modus. Zusätzlich ist die EX 1177HMVS -

mit einem 15KV ESD Überspannungsschutz ausgestattet. Der EX 1177HMVS unterstützt die Norm -

IP30. Im Lieferumfang ist das DIN-Rail Kit für die Installation auf eine Trägerschiene enthalten. Das

DIN Rail Kit wird mit vier Schrauben auf der Rückseite festgeschraubt. -

Merkmale:

• Kompatibel zu USB 1.1, 2.0, 3.0 & 3.1

• Bis zu 480Mbit/s

• Es werden alle Betriebssysteme unterstützt

• Alle Anschlüsse sind verschraubbar

• 15KV ESD Überspannungsschutz

• Zertifiziert für

Bevor Sie den 1177HMVS an Ihren PC anschließen, überprüfen Sie bitte zuerst den Inhalt der EX-

Lieferung:

• EX-1177HMVS

• USB 2.0 Kabel (verschraubbar)

• DIN Rail Kit-

• Anleitung

1. Beschreibung

2. Lieferumfang

Produktspezifikationen

Marke:	EXSYS
Kategorie:	USB-Hub
Modell:	EX-1177HMVS
Gewicht:	250 g
Produktfarbe:	Schwarz
Mac-Kompatibilität:	Ja
Schnittstelle:	USB 2.0
Kompatible Betriebssysteme:	98SE/ME/2000/XP(32&64)/Vista(32&64)/Win7(32&64)\nWIN CE/Server(2000, 2003 & 2008), Linux, MAC
Abmessungen (BxTxH):	26.3 x 73 x 114.5 mm
Datenübertragungsrate:	480 Mbit/s
Anzahl Anschlüsse:	7
Chipsatz:	NEC uPD720113
