Seite 1/12

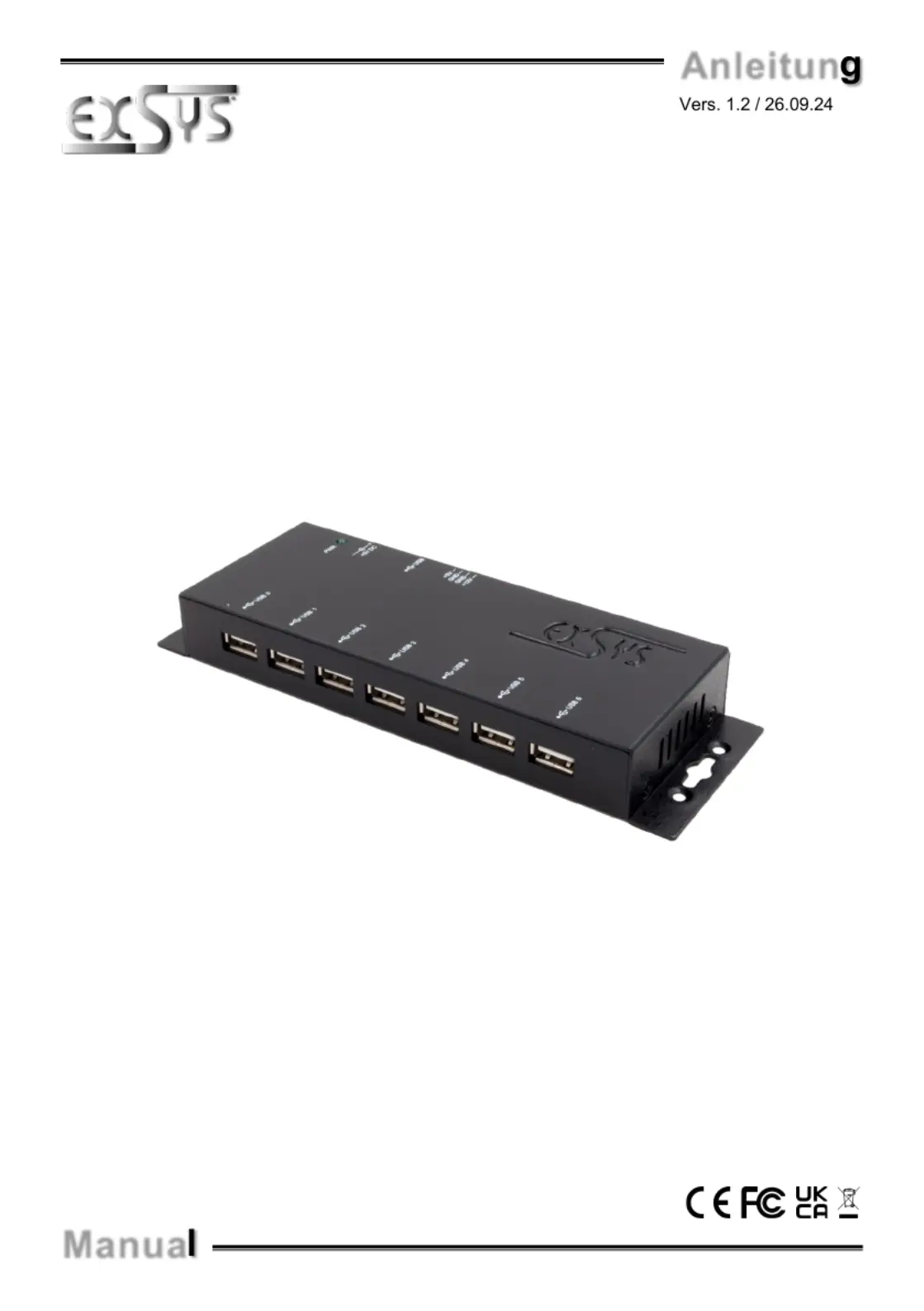

7 Port USB 2.0 Metal HUB
EX-1177 2-
7 Port USB 2.0 Metall HUB-
Anleitun
Manua
Schweiz:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Deutschland:
EXSYS Vertriebs GmbH
Industriestraße 8
61449 Steinbach
www.exsys.de
Italia:
EXSYS Italia Srl
Via Belvedere, 45/B
I 22100 Como -
www.exsys.it
2
- - EX 1177 2
© Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved
1. Beschreibung···································································································· 3
2. Lieferumfang····································································································· 3
3. Aufbau & Anschlüsse ························································································ 4-5
3.1 Aufbau························································································································ 4
3.2 Anschlüsse················································································································4 5-
3.3 Jumper Einstellungen···································································································· 5
4. Hardware Installation ·························································································· 6
5. Treiber Installation ······························································································ 6
6. Reinigung········································································································· 6
7. Technische Daten ······························································································ 7
8. Technische Zeichnung ························································································ 7
1. Description ······································································································ 10
2. Extent of Delivery ······························································································ 10
3. Layout & Connections ··················································································· 11 12-
3.1 Layout ·······················································································································11
3.2 Connections ·········································································································· 11 12-
3.2 Jumper Settings ··········································································································12
4. Hardware Installation ························································································· 13
5. Driver Installation ······························································································ 13
6. Cleaning··········································································································13
7. Technical Information························································································· 14
8. Technical Drawing ····························································································· 14
Inhaltsverzeichnis
Index
3
EX-1177- 2 Deutsch
© Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved
Der EX 2 ist das Original aller 7 Ports Metall Hubs. Er erweitert einen USB 2.0 Port des -1177- -
Desktop Rechners oder Notebooks auf sieben weitere USB 2.0 Ports und unterstützt alle USB
Anschlüsse von 1.1 bis zu 3.2. Durch das im Lieferumfang enthaltene 5V/4A Netzteil werden an
jedem Port garantiert 500mA zur Verfügung gestellt. Der EX 2 garantiert eine sichere -1177-
Datenübertragung mit einer Geschwindigkeit von bis zu 480Mbit/s. Er ist sehr kompakt und mit
einem robusten Metallgehäuse ausgestattet. Damit ist er auch ideal für den industriellen Einsatz
geeignet. Dank seines intelligenten Designs kann der EX 2 an der Wand, unter einem Tisch -1177-
oder mit dem optional erhältlichen DIN Rail Kit EX 6099 in einem Schrank angebracht werden. - - 19“-
Der EX 2 ist qualitativ auf höchstem Niveau und wird in Taiwan hergestellt.-1177-
Merkmale:
• Kompatibel zu USB 1.1, 2.0, 3.0, 3.1 & 3.2
• Bis zu 480Mbit/s
• Es werden alle Betriebssysteme unterstützt
• Unterstützt Multi-TT (Transaction Translater)
Bevor Sie den EX- -1177 2 an Ihren PC anschließen, überprüfen Sie bitte zuerst den Inhalt der
Lieferung:
• EX-1177- 2
• Netzteil (5V/4A)
• USB 2.0 Kabel
• Anleitung
1. Beschreibung
2. Lieferumfang
