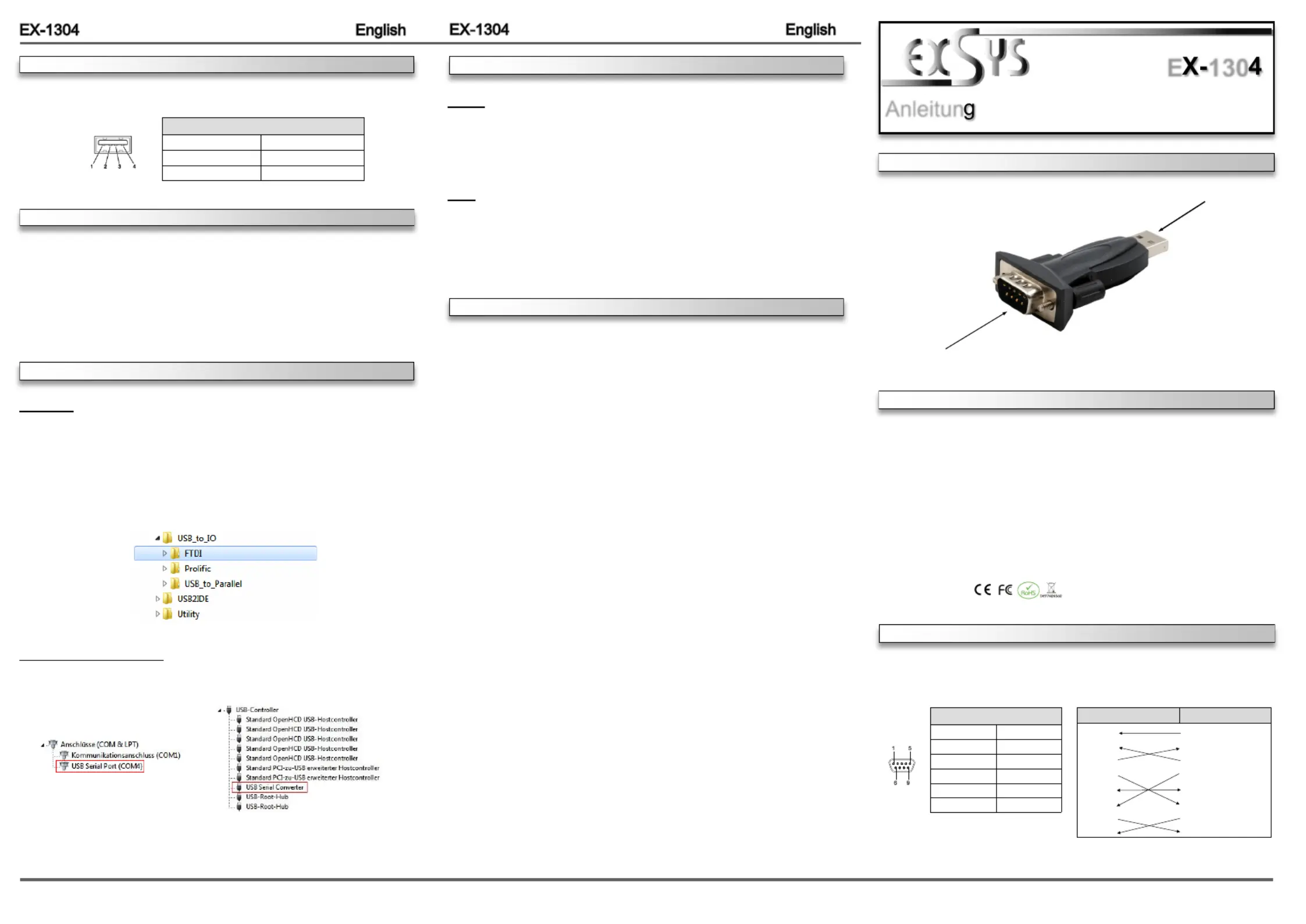

USB A–Stecker

Die EX1304 ist ein Modul zur Umsetzung von USB auf eine RS232 Schnittstelle mit FIFO --

16C550 Port für den Anschluss von High Speed Seriellen RS232 Peripherie Geräten (z.B. -

Modem, Plotter usw.). Das USB Modul ist Hot Plug & Play fähig. Für die Einstellungen der I/O

Adressen und Interrupts sind keine Jumper und Einstellungen notwendig, da die Einstellungen

automatisch vom System BIOS und bei der Installation des Betriebssystems vorgenommen

werden.

Kompatibilität:USB 1.1 & 2.0

Betriebssysteme:Windows 9.x / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx /

Linux / MAC

Anschlüsse:1x 9 Pin DSUB Stecker, 1x USB AStecker--

Lieferumfang:EX-1304

Zertifikate:

S1: 9 Pin Stecker Seriell RS-232

Seriell 9 Pin DSUB Stecker-

PinSignalPinSignal

16DSRDCD

2RXD7RTS

3TXD8CTS

4DTR9 RI

5GND

DB 9M

Verdrahtung RS- 232

DB9 (EX232 (Endgerät)-1304)RS-

11DCD DCD

2RXD2RXD

3TXD3TXD

4DTR4DTR

5GND5GND

6DSR6DSR

7RTS7RTS

8CTS8CTS

Please note the following installation instructions. As there are major differences between PCs, we

can only provide you with general instructions for installing the EX-1304. If you are unsure, please

refer to the operating instructions for your computer system.

1.- Connect the EX1304 to a USB A socket on your PC.

2.Connect the cable with the 9pin socket to the EX--1304.

3.Now you can start your PC and continue with the driver installation.

LINUX

There are drivers available for Linux. The drivers are located in the folder

“\“ USB_to_IO\FTDI\Linux x86_64on the driver CD. They are supported by the most versions

of Linux. Because each individual distribution and kernel version of Linux is different, sadly we

cant provide a installation instruction. Please refer to the installation manual for standard I/O

ports from your Linux version !

MAC

There are drivers available for MAC. The drivers are located in the folder

“\“ USB_to_IO\FTDI\MAC OSX or Mac_OS_9_8on the driver CD. They are supported by the

most versions of MAC OS. Because each individual version of MAC OS is different, sadly we

cant provide a installation instruction. Please refer to the installation manual for standard I/O

ports from your MAC OS version !

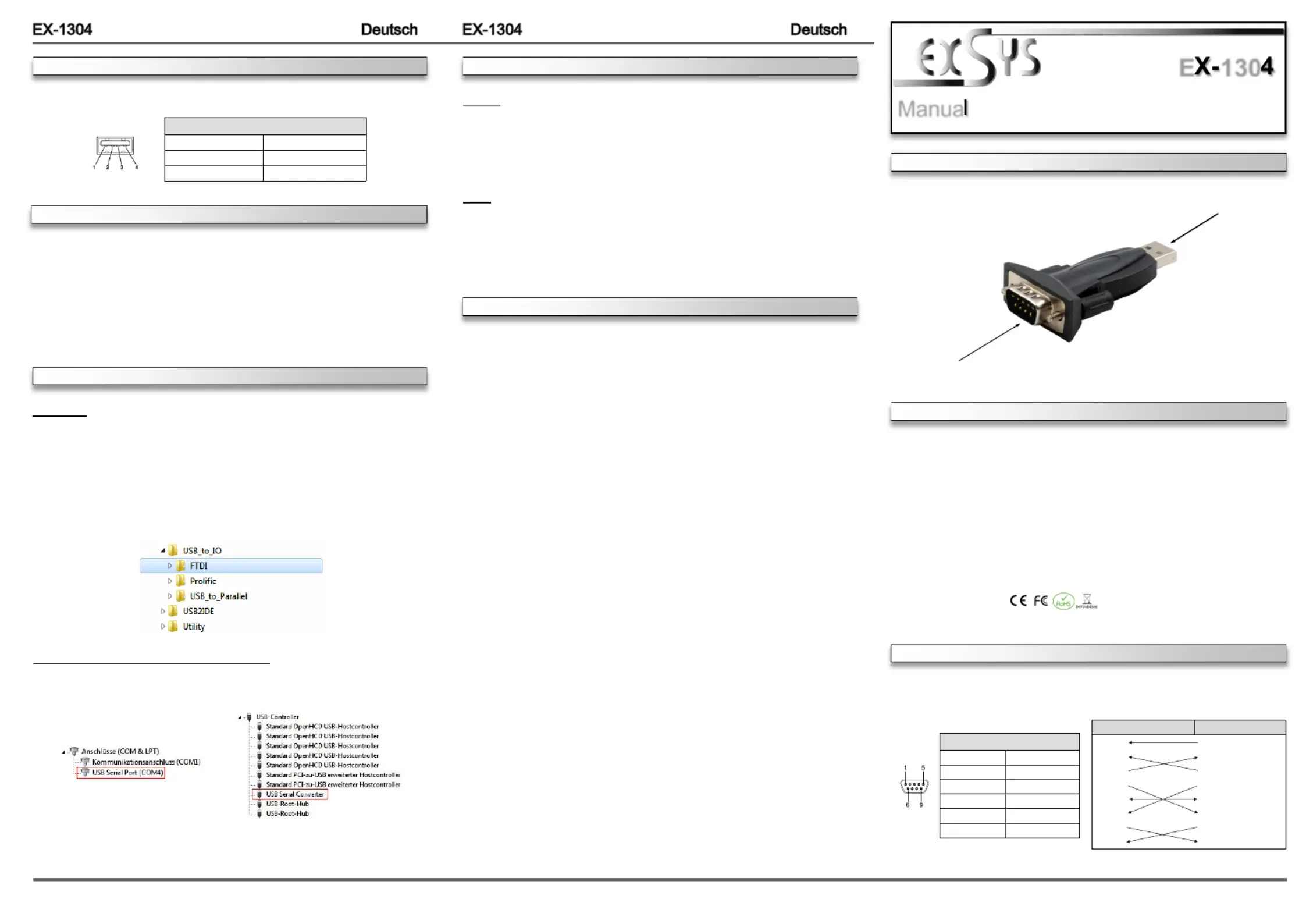

AUFBAU

Anleitun

Vers. 1.2 / 15.01.24

E130

BESCHREIBUNG & TECHNISCHE DATEN

ANSCHLÜSSE

RS- 232 Anschlussbelegung:

CONNECTORS

USB AConnector-

USB AConnector-

PinSignalPinSignal

1VCC3DATA+

2DATA4GND-

HARDWAREINSTALLATION

DRIVER INSTALLATION

Windows

Once the hardware installation is complete, the operating system automatically recognizes the

adapter and installs it! If the drivers are not installed automatically, you can download them from

our website www.exsys.de or www.exsys.ch. Enter our article number EX1304 under "Search". -

There you will find the drivers and manual. Open the folder "USB_to_IO/FTDI". Now select the

folder of your operating system and install the drivers (see illustration). Follow the installation

instructions and complete the installation. Important! Restart your PC after the installation.

CHECK INSTALLED DRIVER

Open the . Now you should see at >Device manager<„Ports (COM & LPT)“ and „USB-

Controller “the following new entry:

If you see this or a similar information the device is installed correctly.

DRIVER INSTALLATION

CLEANING

For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In

the area of the connectors please make sure that no fibres from the cloth remain in the connect-

ors. Attention! Never use a moist or wet cloth for cleaning!
