Seite 1/4
1
EX- 1448MM
USB 3.2 Gen1 (USB 3.0) to
Fiber Optical Converter
1. Introduction
Thank you for purchasing this USB 3.2 Gen1 (before USB 3.0) to Fiber Optic Converter. It is de-
signed to extend USB signals over optical fiber. It provides the most versatile connection possible
between any USB 3.2 Gen1 equipment's using fiber optic cable. The optical fiber isolates the data
signals from ground potential, ground loops and provides EMI/RFI protection. There support OM3
above Multimode with 2LC optical connector. The multi mode converter is used to extend USB -
transmission distance up to 300 meter.
Features:
Compliant with USB Specification 3.2 Gen 1
Compliant with MSA SFP+ Specification SFF-8431
Extends 1 x USB C and USB A Connectors- -
Multi mode optical transceiver, 300m maximum distance-
Optional Single-mode optical transceiver, 10km maximum distance
Compact metal cases, DIN Rail and multi oriental wall mounting bracket
Supports 15KV ESD Level 4 Protection for Each Port
Power Input: 5V DC with 5.5/2.1mm Barrel Plug

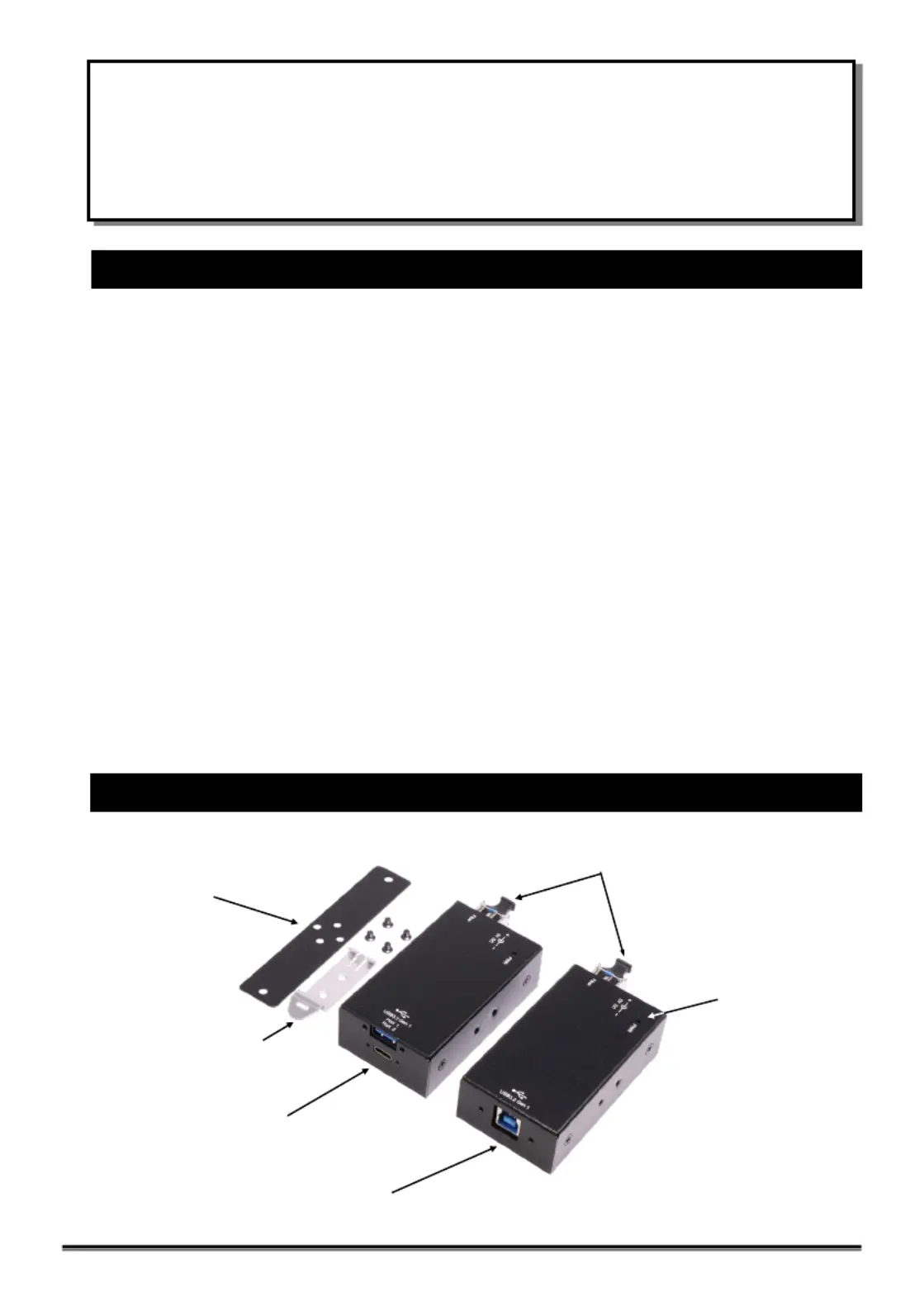

2. Layout
RX Receiver Module with
USB A– and C connectors -
TX Transmitter Module
with USB B connector
SFP+ Fiber Optical Transceivers
Power LED
Din- Rail Clip
Multi Orientation-
mounting bracket
2
USB 3.2 Gen1 ( before USB 3.0) to Fiber Optic Converter

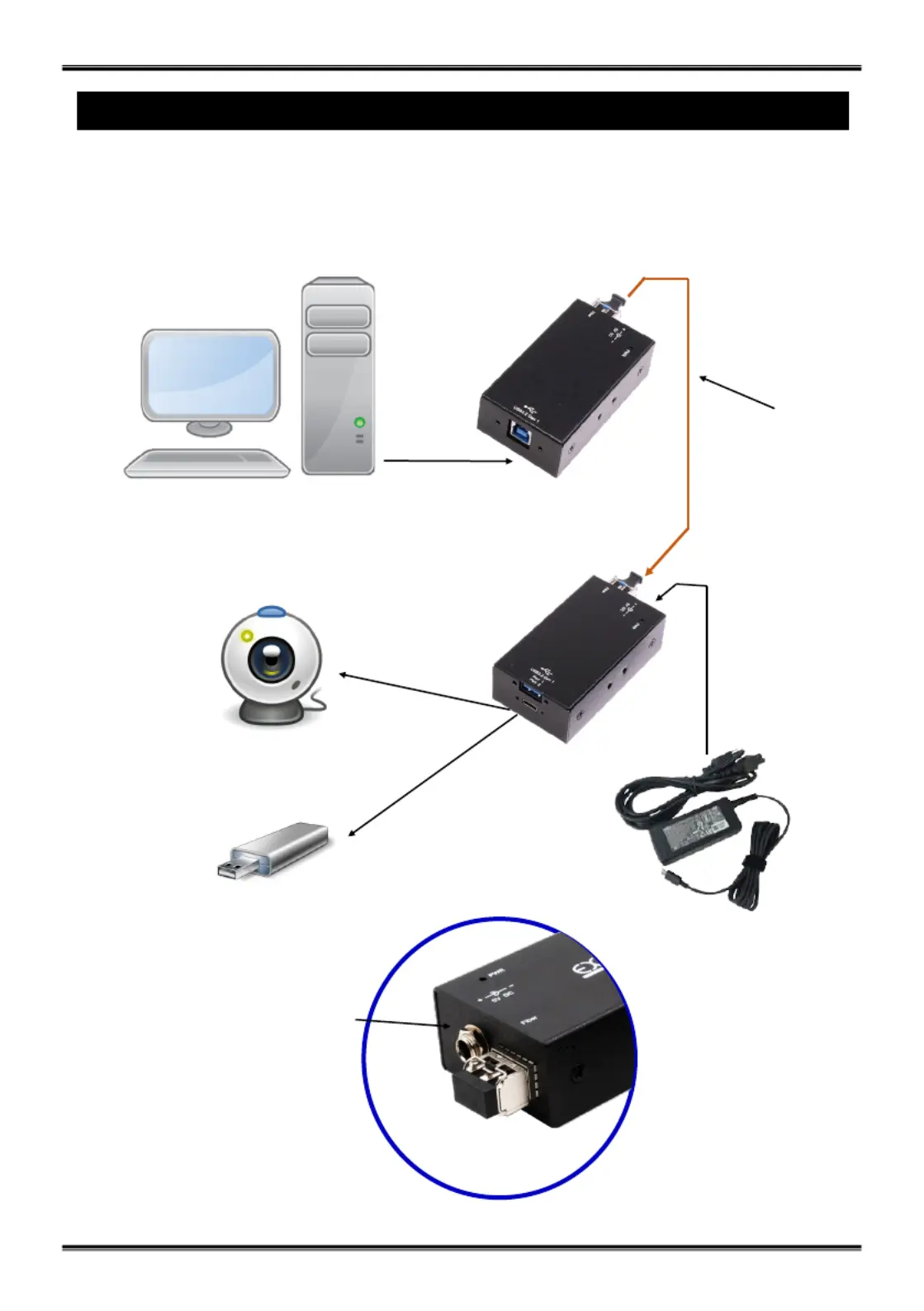

3. Hardware Installation
1. The Extender Kit consists of a local Transmitter unit and a remote Receiver unit. Please con-
nect the Transmitter unit to your host PC and plugged the USB devices on the remote unit.
Connect both units with a Fiber optic cable.
Transmitter unit
Receiver unit
Fiber optic cable
up to 300 meter
Host (Desktop or Server)
USB 3.2 Gen1
USB 3.2 Gen1 Devices
Attention! Don t support USB 2.0’
Optical Link status
LED (lights is OK)
3
USB 3.2 Gen1 ( before USB 3.0) to Fiber Optic Converter
2. Transmitter unit is powered by the USB cable from the host PC, so it doesn t need any ’
external power supply. However, the Receiver unit needs a 5V DC power adapter to
operate and power its downstream devices.
3. After installed, please verify the Link status LED next to each Fiber transceiver socket
lights steadily, it indicates that the fiber cable is correctly installed and ready to
communicate.

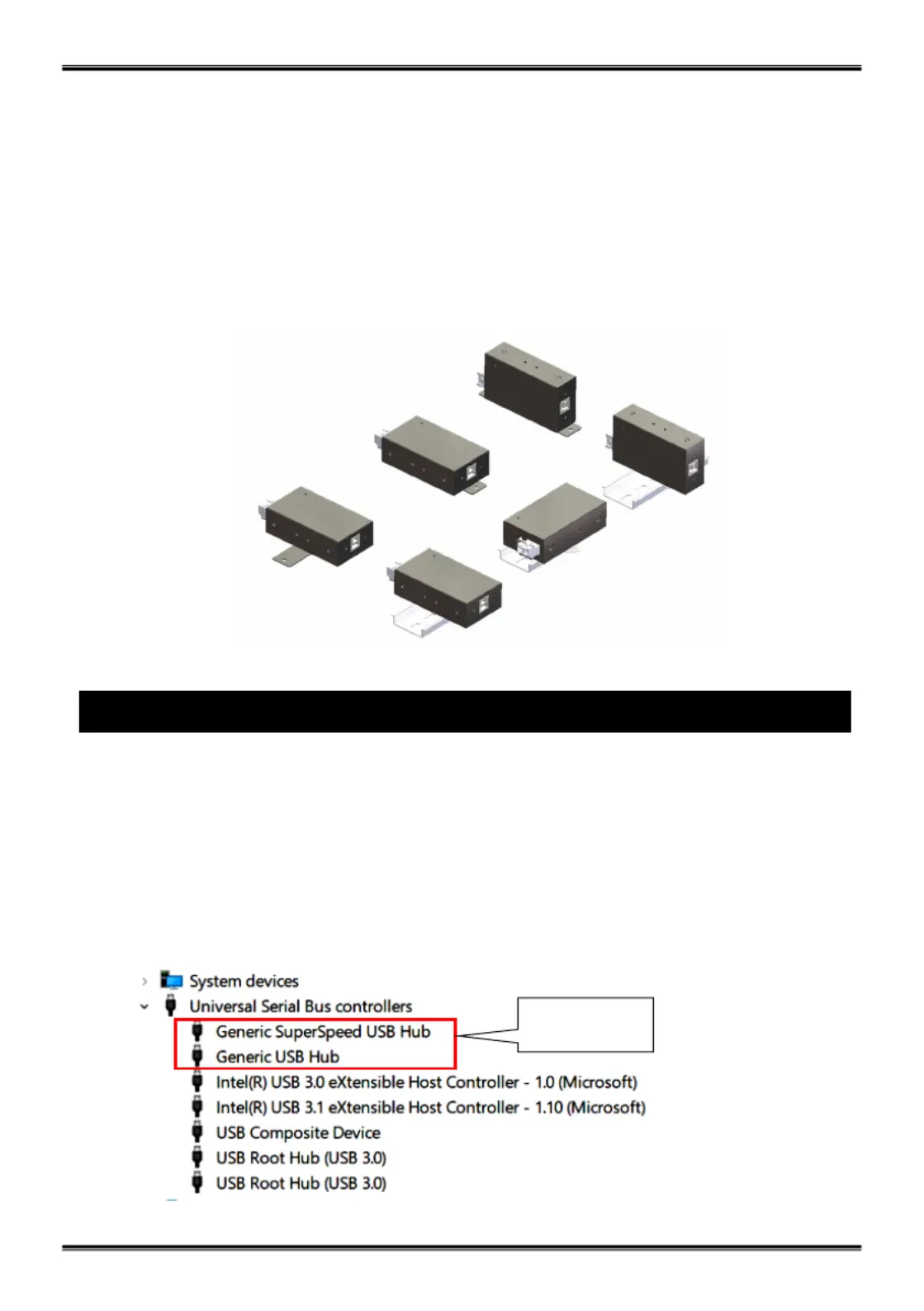

4. -Mount your hub on the wall (with the Multi Orientation Bracket) or DIN Rail (with the DIN
Rail Clip) if required. Please see the following picture for different options:
4. Checking the HUB installation
To check the USB3.2 Gen 1 hub installation in Windows device manager, please follow the
following steps:
1. Click Start è Control Panel è System è Device Manager button
2. Double click Universal Serial Bus Controller
3. Double click , the message will show that this device is Generic USB Hub
working properly.
Here is your
USB 3.2 Gen1
