Translation of the original instructions

1Further applicable documents

All available documents for the product www.festo.com/pk.è

2Safety

2.1General safety informations

–Observe labelling on the product.

–Prior to mounting, installation and maintenance work: Switch off power supply

and secure it from being switched back on.

–Store the product in a cool, dry, UV-protected and corrosion-protected environ-

ment. Ensure that storage times are kept to a minimum.

–Comply with the handling specifications for electrostatically sensitive devices.

–Observe tightening torques. Unless otherwise specified, the tolerance is

±20%.

2.2Intended use

Fig. 1

The EFSD electric stopper cylinder is intended for use in stopping the transported

material.

This product can generate high frequency interference, which may make it neces-

sary to implement interference suppression measures in residential areas.

2.3Training of specialised personnel

Installation, commissioning, maintenance and disassembly should only be con-

ducted by qualified personnel.

The qualified personnel must be familiar with installation of electrical control sys-

tems.

3Further information

–Accessories www.festo.com/catalogue.è

–Spare parts www.festo.com/spareparts.è

4Service

Contact your regional Festo contact person if you have technical questions

èwww.festo.com.

4.1Function

The electric stopper cylinder isolates/stops transported material in transfer sys-

tems. Cushioning over a stop is done through an air cushion. Retraction of the

stop (release of transported material) and the position inquiry are done electric-

ally.

There are 3 positions:

Fig. 2

–Position 1:

Stopper cylinder closed in initial position (closed):

Stop is extended and located in the initial position. The stopper cylinder is

ready to stop a transported material.

–Position 2:

Stopper cylinder closed in stop position (closed):

The stopper cylinder travels to the stop and moves the stop from the initial pos-

ition into the stop position. This causes the transported material to be braked

and then stopped through internal dampening.

–Position 3:

Stopper cylinder opened (open):

Stop retracts and releases the transported material.

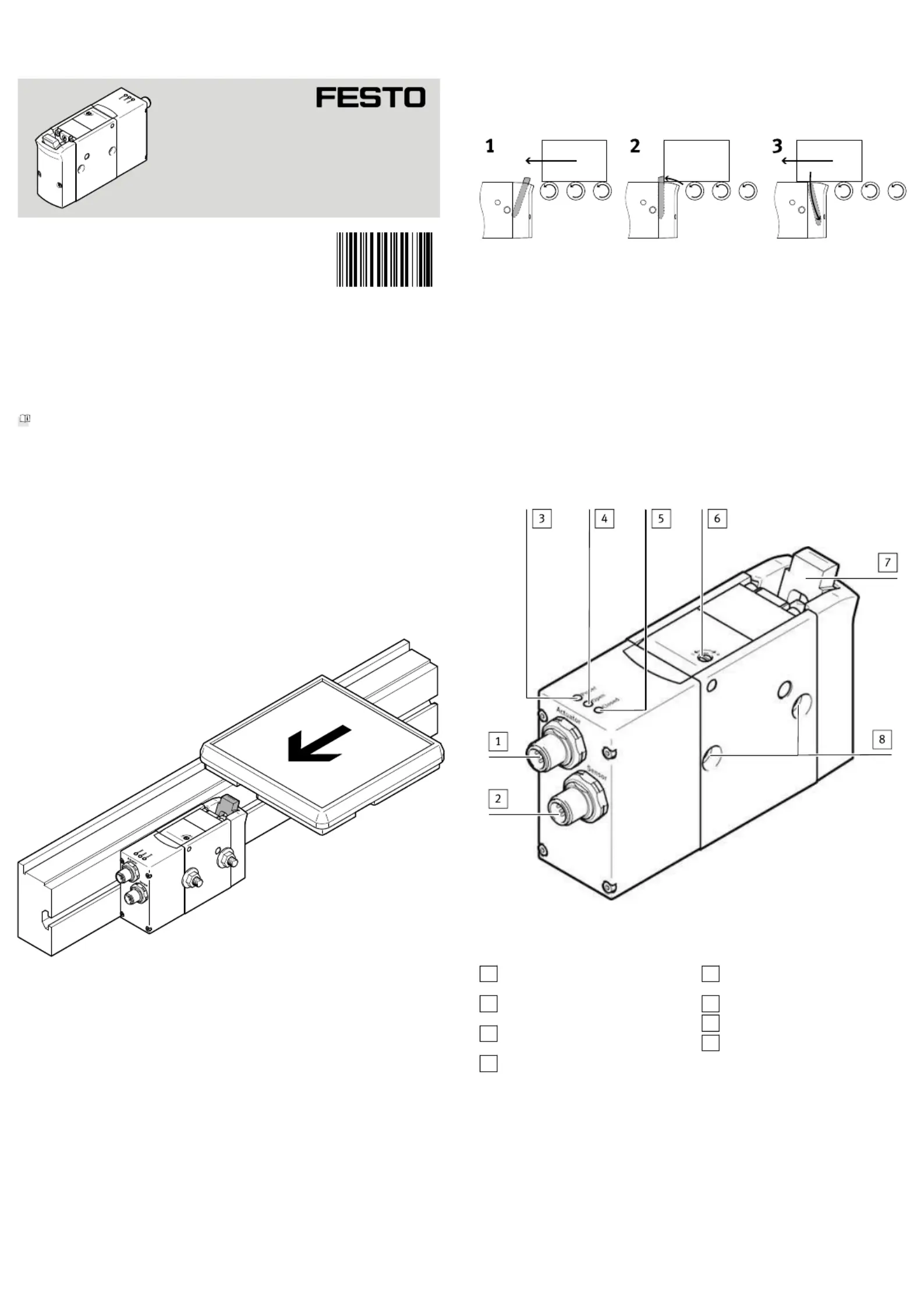

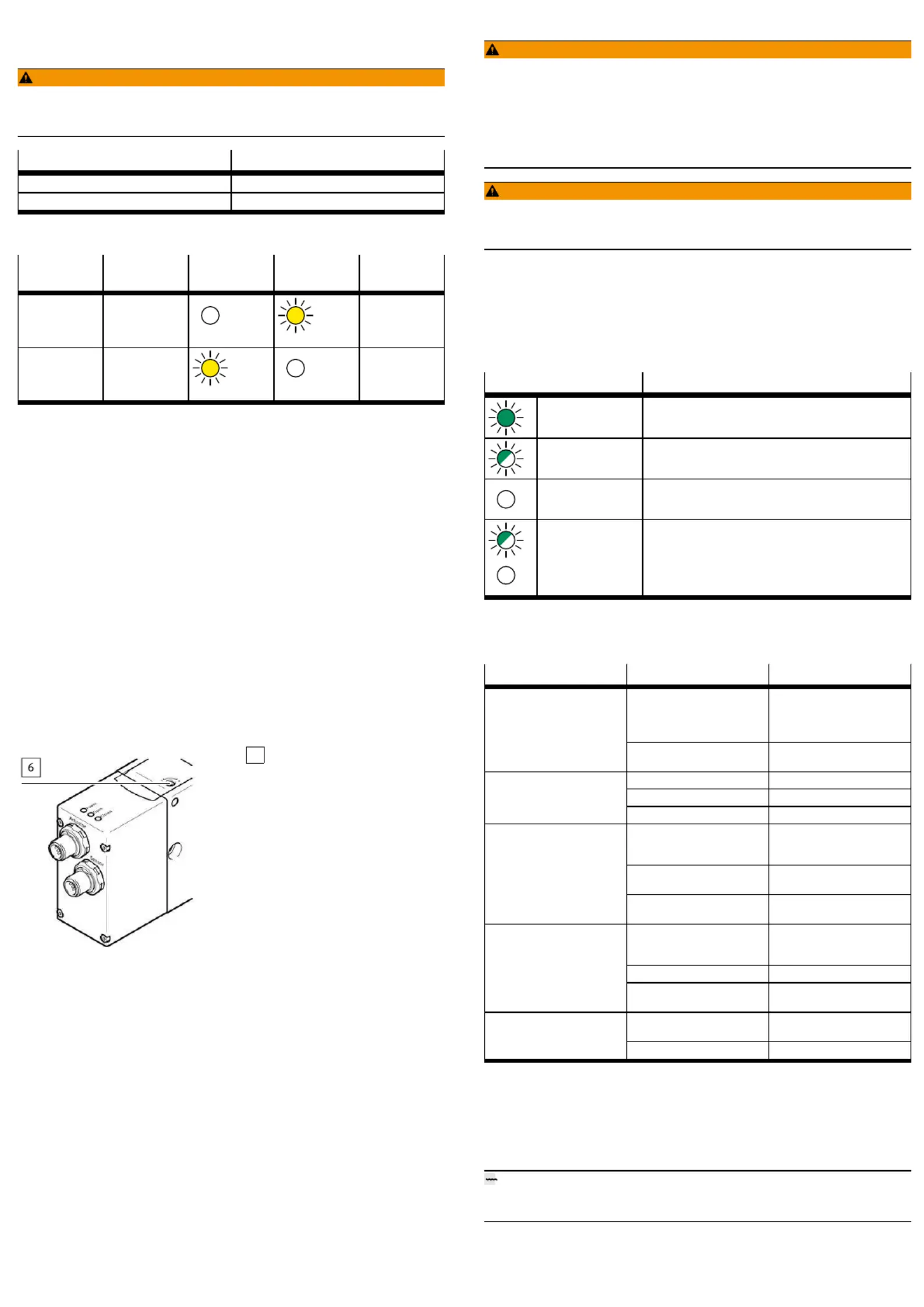

4.2Configuration

1

Electrical connection (actuator),

M12 plug (5-pin)

2

Electrical connection (sensor), M12

plug (5-pin)

3

LED display (power): operating

status

4

LED display (open): stop retracted

5

LED display (closed): stop exten-

ded

6

Cushioning setting

7

Stop

8

Mounting interface

Fig. 3

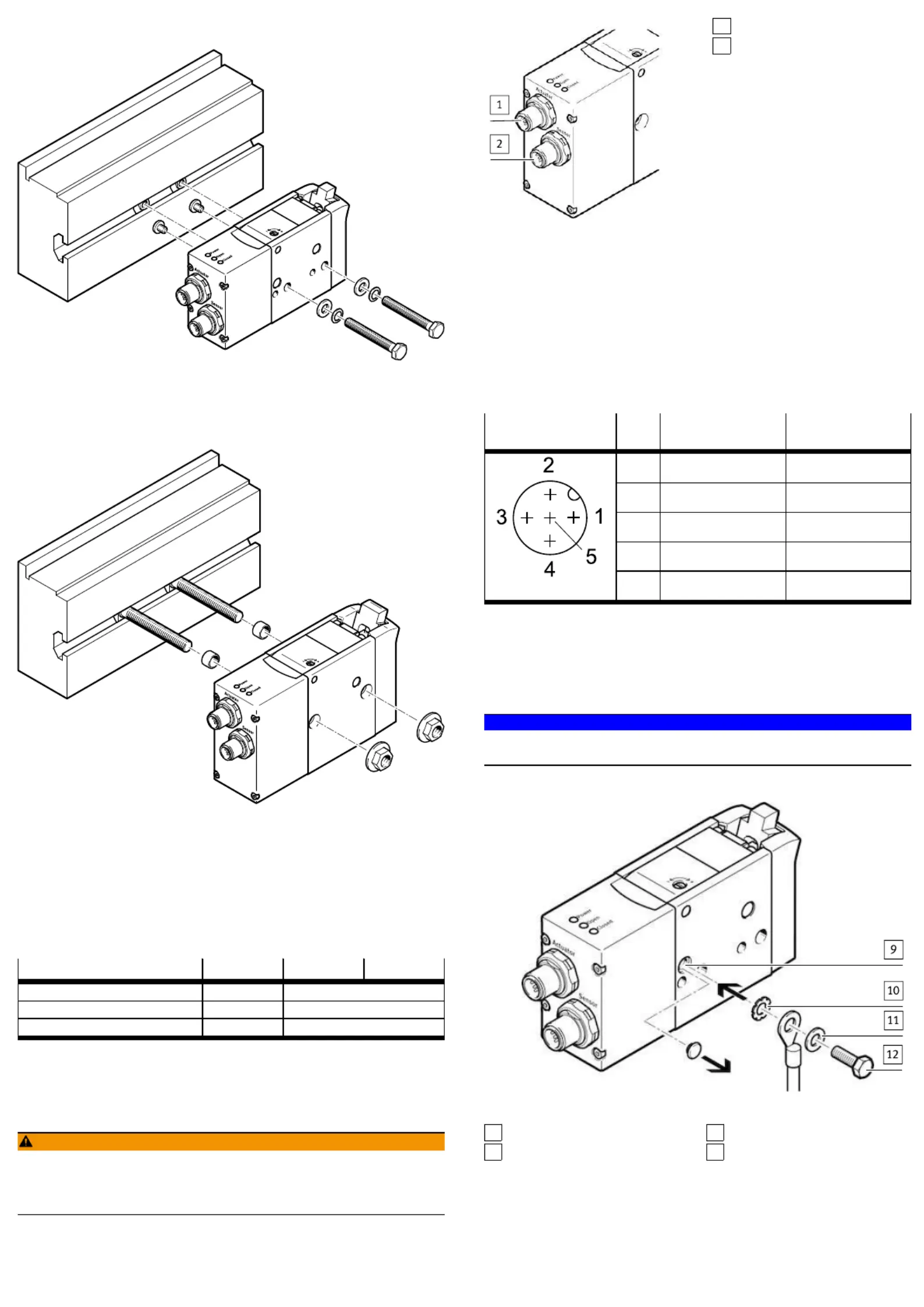

5Installation

Requirements

–Do not modify the screws and threaded pins. Exception: Immediate demand for

modification in this instruction manual.

–Install product without tension or distortion. Evenness of the mounting surface

must be maintained within 0.1mm.

8061883

Stopper cylinder

EFSD

8061883

2017-06

[8061885]

Instructions - Operation

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com
