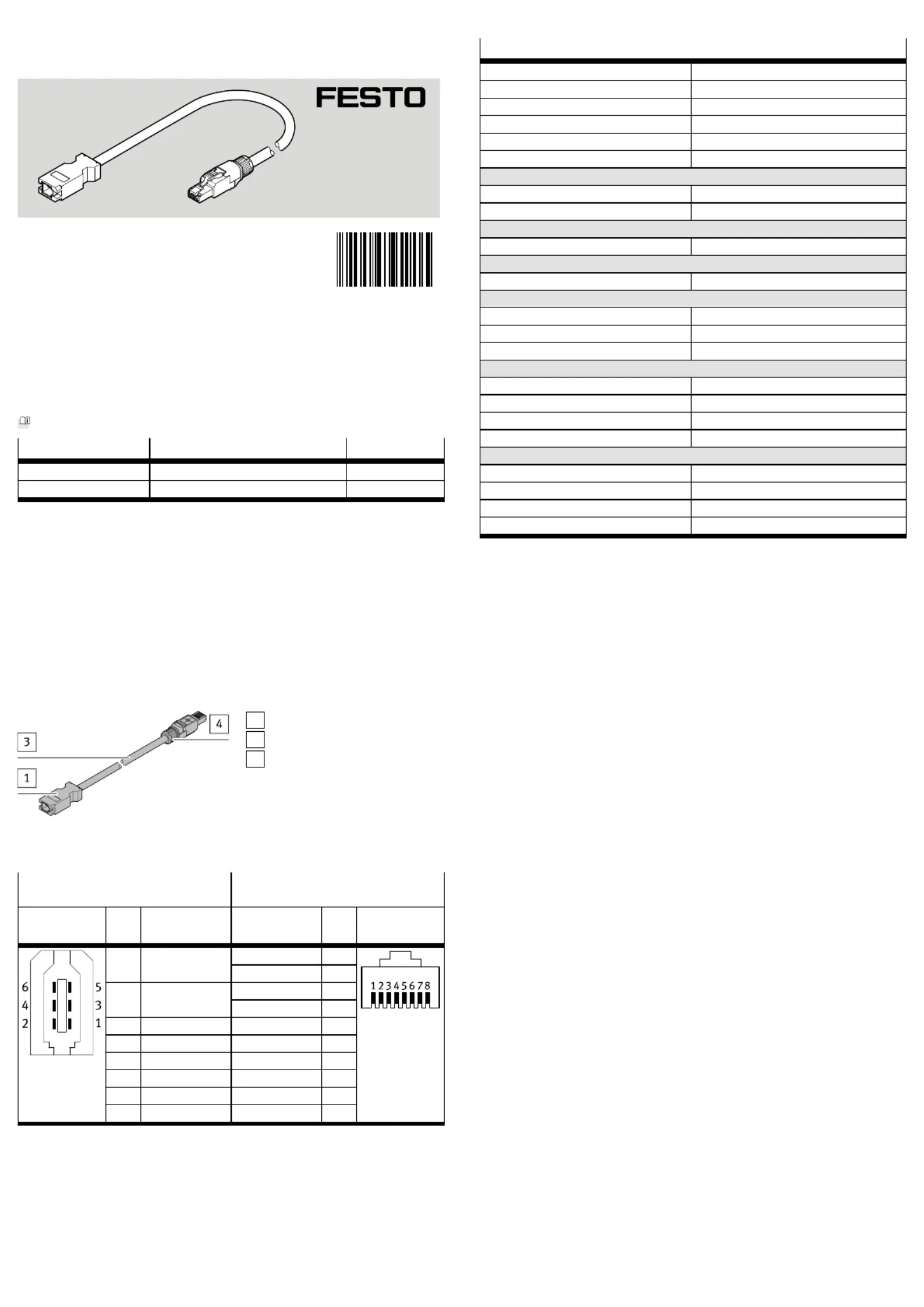

Translation of the original instructions

1Applicable documents

All available documents for the product www.festo.com/pk.è

DocumentProductContents

InstructionsServo motor EMMB-ASOperating

InstructionsServo drive CMMT-ASOperating

Tab. 1

2Safety

2.1Safety instructions

–Only assemble the product on components that are in a condition to be safely

operated.

2.2Intended use

Connection of a servo motorEMMB-AS (without multi-turnencoder) with a servo

drive CMMT-AS.

3Configuration

3.1Product design

1

Socket

3

Cable

4

Plug connector RJ45

Fig. 1

3.2Contact assignment

Electrical connection1

Field device side

Electrical connection2

Controller side

1SocketPinAllocation/

Signal

Allocation/

Signal

Pin Plug con-4

nector

Sense+31+5V

VCC7

Sense62GNDz

GND8

3Not assigned––

4Not assigned––

5SDDATA4

6/SD/DATA5

––Not assigned1

––Not assigned2

Tab. 2 Contact assignment

4Mounting

4.1Mounting of electrical connection 1

1.Align socket to match plug.1

2.Connect socket to the plug.1

4.2Mounting of electrical connection 2

1.Align the plug to match the socket.4

2.Insert the plug into the socket.4

5Technical data

NEFM-REG6-K-...-R3G8

Cable characteristicStandard

Cable composition[mm²]4x2x0.081 + 1x2x0.205

ShieldingShielded

Cable diameterD[mm]6.8

Current rating at 40°C[A]1.6

Surge resistance[kV]2

Operating voltage range

ACU

B

[V]0…30

DCU

B

[V]0…30

Bending radius

Fixed cable installationR[mm]

³68

Ambient temperature

Fixed cable installation[°C]–40…+80

Material

Cable sheathPVC

Insulating sheathPVC [SR-PVC]

Note on materialsContains paint-wetting impairment substances

1)

Electrical connection1

FunctionField device side

Connection typeSocket

Connection technologyPlug pattern RE

Degree of protectionIP20 In assembled state

Electrical connection2

FunctionController side

Connection typePlug connector

Connection technologyRJ45

Degree of protectionIP20 In assembled state

1) PWIS = paint-wetting impairment substances

Tab. 3 Technical data

8114854

NEFM-REG6-K-...-R3G8

Adapter

8114854

2019-08

[8114856]

Instructions| Assembly

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com
