IMPORTANT:
•ALL INSTALLATION WORK SHOULD BE DONE BY ACCREDITED PROFESSIONAL.
•SHUT OFF POWER SUPPLY AT FUSE OR CIRCUIT BREAKER!
•USE ONLY THE SPECIFIED BULBS. DO NOT EXCEED THE MAXIMUM WATTAGE!
CONNECTING THE
WIRES
Have an assistant support the xture’s weight while completing
the wiring. Cut away excess wire. Attach the xture’s wires to
the power supply wires from the junction box. Connect black
to smooth/black/transparent (L) wire; white to ribbed/white/
transparent (N) wire; ground to ground (green or copper). Twist
the ends of the wire pairs together, and then twist on a wire
connector. Make sure all twists are in the same direction. If there
is no ground wire (green or copper) from the junction box, locate
ground screw on mounting strap (A) and wrap the xture’s
ground wire around the green ground screw. Use a screwdriver
to secure ground screw onto the mounting bracket/mounting
strap. Tuck all wires neatly into the junction box.
For Customer Service, contact
the place of purchase.
Assembly Instructions: 3167-LP (Colson)
CLEANING TIPS
Treat the xture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn o the light and wipe down the
xture with a clean lint-free cotton or microber cloth. Never spray cleaner directly onto the xture.
PREPARING FOR INSTALLATION
Carefully remove all of the contents from the carton. See the important notes above. Shut o the power at the circuit breaker and completely
remove the old xture from the ceiling, including the old mounting strap.
From the parts bag remove the mounting strap assembly. Mounting strap (A) contains threaded holes. Two of mounting screws (C) should be
attached to mounting strap (A). You may need to tighten the nuts that hold these screws in place. Place mounting strap (A) over the junction box
so that mounting screws (C) are vertical, and in alignment with the hole locations on the xture’s canopy (D). Secure mounting strap (A) to the
junction box with mounting screws (B) and a screwdriver. Tighten the screws securely.
FINISHING THE INSTALLATION
Push canopy (D) up to the ceiling and tightly thread nuts (E) onto the exposed threads of mounting screws (C).
Slide candle sleeves (J) over sockets (K). Install the bulbs (I - not included) into sockets (K) in accordance with the xture’s specications. Do not
exceed the maximum wattage
Your installation is now complete. Turn on the power and test the xture.

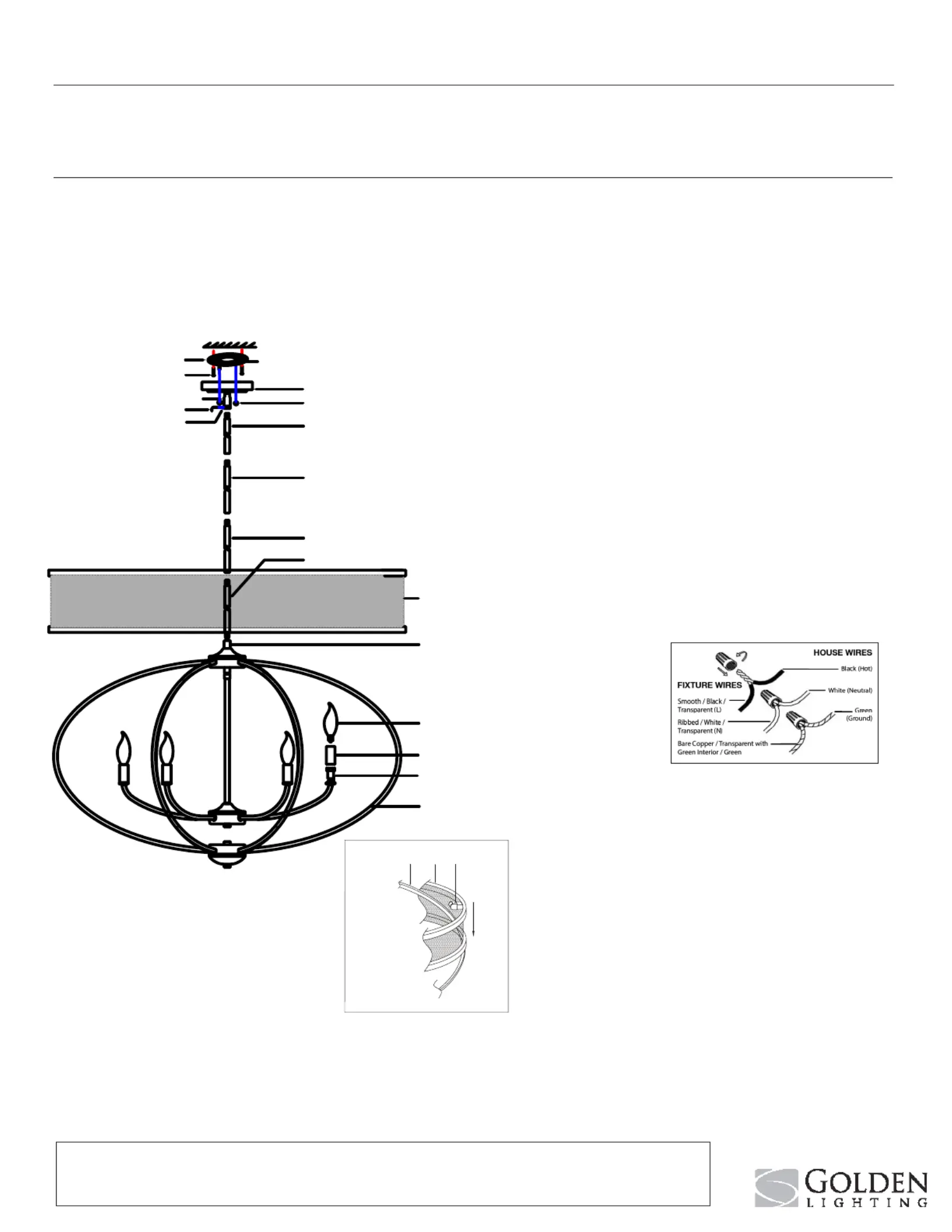

ASSEMBLING THE FIXTURE
Shade (H) may be included with the xture. If the shade is included, please
check to see which side (top or bottom has the acrylic clip (N) attached.
Place shade (H) over the spherical arms (M) of the xture.
For adjusting the height of xture, this xture contains:
Three 12” rods (G) and one 6” rod (F). Each rod can be connected to another
by twisting the thread end of one into the opposite end of another. Each
rod may also be used to alone to connect the xture body to the swivel
(I2) on canopy (D). By measuring, decide the desired overall height of your
xture and determine how many rods are needed to achieve the desired
height. Push the xture’s wires through each rod. Thread the bottom rod
onto post (I) of the xture’s body. Pull the wires until taut and then connect
the rods together as described above. If the Rod (F) can not be threaded
into swivel (I2), please use the Hexagon wrench (I3) to loosen screw (I4).
F
G1
G2
H
G3
C
I
J
K
L
M
A
B
D
E
I2
I3
I4
H
M
N
Fig 2
