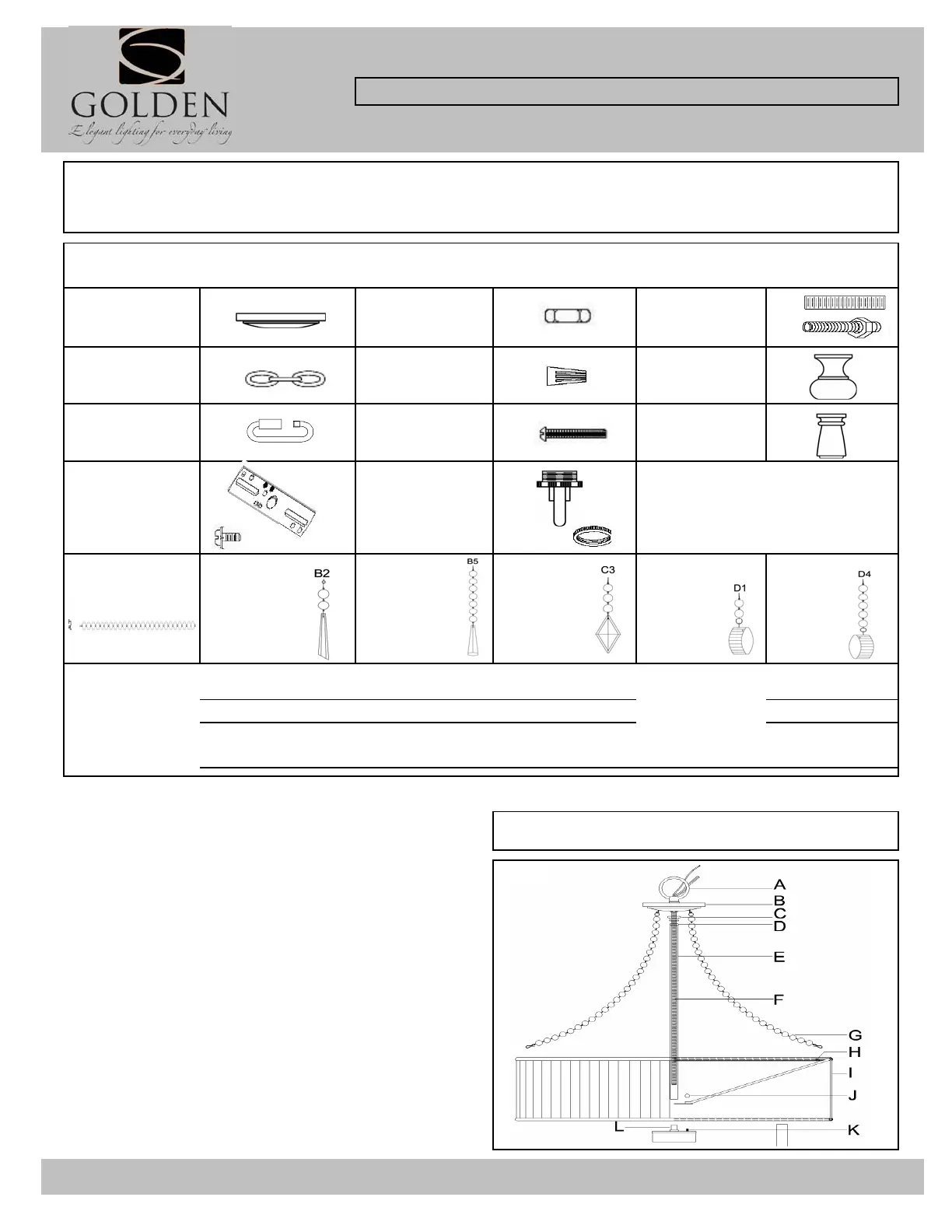

PARTS & ASSEMBLY SHEET

This fixture assembled PO:__________ Date: ________

Fixture Name: Echelon 8981-5 BRI / GRM

Notice: Please review the parts listing and check for all parts before assembling the fixture. If any parts are

missing or damaged, please note on this sheet and contact the place of purchase to arrange for

replacement parts.

PARTS LIST

Company Name:_______________________Co. Account #:_____________

to be filled out by retailer

Crystal drops are not included in

parts bag. They are already

installed on the fixture.

For Customer Service, contact the place of purchase to arrange for replacement parts.

FIXTURE ASSEMBLY INSTRUCTIONS

NOTE: THE SHADE ASSEMBLY CAN BE DAMAGED BY

ROUGH HANDLING. USE CARE WHEN ASSEMBLING.

1. Feed the fixture wires through the long Threaded rod (F)

and pull the wires until taut.

2. Slide the tube (E), tube lid (D), cup (C), long Threaded

rod (F), Top cap (B), Top loop (A) down to housing of

fixture.

3. Screw Threaded rod (F) all the way into the coupler (L) at

housing of fixture. Screw Top loop (A) into Top cap (B).

8981-5 BRI / GRM

Read and review installation instruction sheet before

assembling the fixture.

Fig 1

Fig 1
