Gossen Metrawatt
Energiekostensenker
METRALINE ENERGY U289 Direct
Lies die bedienungsanleitung für Gossen Metrawatt METRALINE ENERGY U289 Direct (2 Seiten) kostenlos online; sie gehört zur Kategorie Energiekostensenker. Dieses Handbuch wurde von 4 Personen als hilfreich bewertet und erhielt im Schnitt 4.5 Sterne aus 2.5 Bewertungen. Hast du eine Frage zu Gossen Metrawatt METRALINE ENERGY U289 Direct oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage
Seite 1/2
RISK OF ELECTRIC SHOCK, BURNS OR EXPLOSION
This device must be installed and maintained ONLY by qualified
and duly authorized personnel.
During its installation, be sure there is no voltage applied
.
◾
UP button: to scroll pages and change parameters

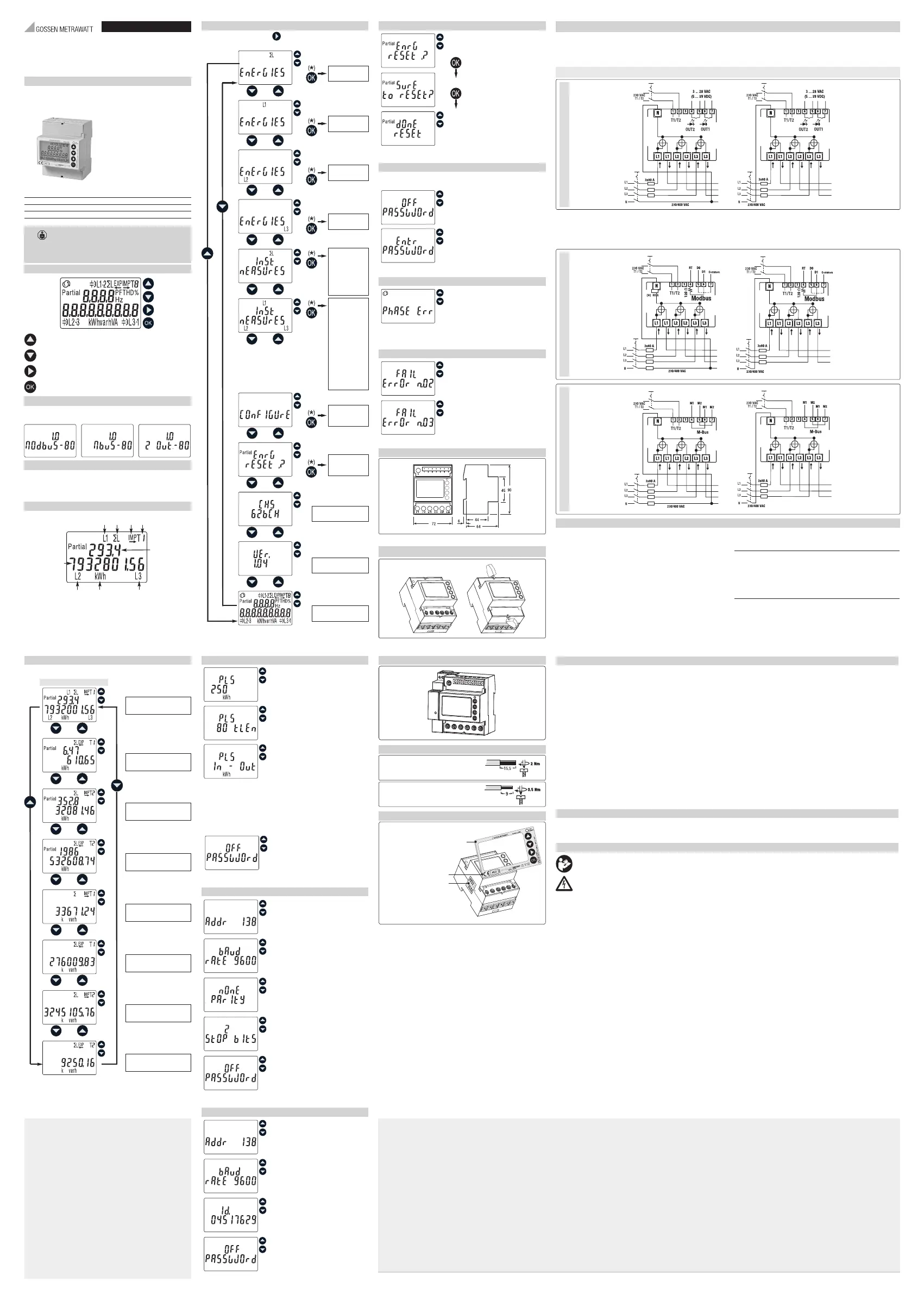

Frontal of the Energy Meters
◾
DOWN button: to scroll pages and change parameters
◾
MENU/ESC button: to change menu and stop modification procedure
of a parameter
◾
OK button: to confirm the modification of a parameter
Device Switch-on
•
When the device is switched on, the firmware version and the model appear on the
display for one second. (Preliminary Page)
•
If no button is pushed for 40 seconds, the display goes back to the Main Page and the
backlight is switched off.
•
The first button pushing does not change the page but is used
to switch the backlight on.
Display Back light
Main Energy Page
1: Appears if V (L-N) >=92 VAC
2: Three-phase energy
3: “IMPorted” / “EXPorted”
flowing power direction
4: working tariff
5: Three-phase Active Energy register
6: Corresponding Partial Energy
register
7: Energy Unit
①
② ③ ④
①
⑦ ①
⑤
⑥
Three-phase Digital
Energy Meter
Direct connection 80 A
Operating Instructions
The Energy Meter provides all relevant measures for the evaluation of an
electrical network: I, U, PF, F, THD%, Powers (displayed for each phase and
3 phase) and Imported/Exported Active/Reactive Energies.
•
All models have the 0.25-5(80) A
current range, with 2 tariffs and with IR
lateral communication available.
The built-in communication depends of the model
:
Model Communication
U289D 2 S0 Impulsausgänge MID-zertifiziert
U289E
Built in RS-485 Modbus RTU MID certified
U289F
Built in M-Bus (1 unit Load) MID certified
(
*
) For swiss market only active energy on display
METRALINE I ENERGY
Selection Menu
Three Phase
Energies List
By Pushing from
Any page of Main Menu
Firmware checksum
Firmware version
Display test
Three Phase
Instantaneous
measures
active power,
reactive power,
apparent power,
frequency,
neutral current
Phase 1
Energies List
Phase 2
Energies List
Phase 3
Energies List
Phase L1, L2 & L3
Instantaneous
measures
active power L1,
active power L2,
active power L3,
reactive power L1,
reactive power L2,
reactive power L3,
apparent powers,
line voltages,
system voltages,
phase current,
power factors,
voltage THDs,
currents THDs
Parameters List
(Read and/or
Modify)
Partial Energies
Reset Procedure
(*) access can be protected by Password (see Password chapter)
• When this page is on the display, it is
possible to reset the Partial Energies
(Main Energies are not resettable).
Partial Energies Reset Procedure
• By pushing the OK button again, the Partial
Energies are reset.
• By Pushing push MENU/ESC button or no
button is pressed for 40 seconds, the
procedure is stopped, and the display
goes back to “Enrg Reset?” page.
Password
In Configure Menu it is possible to protect the access to sub-menues of
Selection Menu by a password.
Password can be enabled (ON password) or
disabled (OFF password), the default
value is OFF
Once requested, to enter the password user
must push both UP button and DOWN button
at the same time for 4 seconds
• In case the cabling sequence is wrong, this
message appears. In this condition, the
Energy Meter continues to measure and to
increase the Energy Registers, but its
calculation is not correct.
• By pushing OK button for 5 seconds, this
message disappears until next restart
• In case the display shows these messages,
the device has got a malfunction and
must be replaced
Phase Sequence Error
Unrecoverable Internal Errors
Dimension
Sealable terminal covers
Wiring diagram
• The Energy Meter has OVERVOLTAGE CATEGORY III (according to IEC 62052-31 that refers to IEC-60664-1 Ed. 2.0:2007), hence its direct connection to the Public Electricity
Grid is not allowed. The Energy Meter is intended for INDOOR installation only (according to EN 50470-1 and IEC 62052-31).
The Energy Meter must be installed on a DIN-rail and inside a cabinet with a protection degree (IP rating) equal to (or better than) IP51
(N) Neutral wire must be connected to the meter
U289D
* Note
S0 outputs options
S0 outputs, by default, are proportional to Imported (pin 6-7)
and Exported (pin 4-5) Active Energy.
The following other options are selectable by means of HMI interface.
•
S0 output 1 (pin 6-7) proportional to Active Imported Energy
•
S0 output 2 (pin 4-5) proportional to Reactive Imported Energy
or
•
S0 output 1 (pin 6-7) proportional to Active Imported Energy under Tariff T1
•
S0 output 2 (pin 4-5) proportional to Active Imported Energy under Tariff T2
U289EU289F
S0
6-7: Opto-isolated S01 pulses output
4-5: Opto-isolated S02 pulses output
Modbus
4: Modbus Network. Short this pin with pin 5 to
apply 120 Ohm termination.
5: Modbus network. D0
6: Modbus network. D1
7: Modbus network. Common
M-Bus
4-6: M-Bus network terminals.
5-7: M-Bus network repeated terminals. These terminals are internally
connected to terminals 4-6.
1-2: Tariff input, internally opto-isolated (4kV).
Applying 230 VAC (±20%), the running tariff toggles to T2,
and T2 Energy Counter Registers are incremented
L1↑: Input connection for phase 1.
L1↓: Output connection for phase 1.
L2↑: Input connection for phase 2.
L2↓: Output connection for phase 2.
L3↑: Input connection for phase 3.
L3↓: Output connection for phase 3.
N: Neutral connection.
Terminal Description
ENGLISH
3-447-132-15
IIST324-01 - 1/9.22
Main Menu
Active Imported Energy tariff
T1 with partial register
Three Phase Energies List
Main Page
Active Exported Energy tariff
T1 with partial register
Active Imported Energy tariff
T2 with partial register
Active Exported Energy tariff
T2 with partial register
Reactive Imported
Energy tariff T1
Reactive Exported
Energy tariff T1
Reactive Imported
Energy tariff T2
Reactive Exported
Energy tariff T2
◾
Note: Main Page and consequently page sequence could be different, according
to the flowing power and working tariff
Parameters in S0 model
Pulses per kWh
• In direct connected models, the following
values are available:
1, 2, 5, 10, 20, 50, 100 or 200.
• The default value is 200
Pulse time length
• Duration of ON pulse for S0 outputs:
30 to 100 ms.
• The default is 100 ms
S0 ouputs configuration mode
◾
In - Out
• S01 proportional to Imported Active Power
• S02 proportional to Exported Active Power
◾
Act-React
• S01 proportional to Imported Active Power
• S02 proportional to Imported Reactive Power
◾
TAR1-TAR2
• S01 proportional to Imported Active Power
under T1
• S02 proportional to Imported Active Power
under T2
• Password Enabled/Disabled
Parameters in models with Modbus on-board
• Modbus Address.
Selectable in the range 1 ... 247.
• The default address is 1.
• Modbus Baud Rate.
Available Baud Rates are:
1200, 2400, 4800, 9600, 19200 and 38400.
• The default baud rate is 19200.
• Modbus Parity.
Available Parity are None, Even and Odd.
• The default Parity is None.
• Modbus Number of Stop Bits (1 or 2).
• The default number of Stop Bits is 1
• Password Enabled/Disabled
Parameters in models with M-Bus on-board
• M-Bus Primary Address.
Selectable in the range 1... 250.
• The default value is 0, but, once modified to
a value 1... 250, it is no longer possible to
go back to 0.
• M-Bus Baud Rate.
Available Baud Rates are:
300, 600, 1200, 2400, 4800 and 9600.
• The default baud rate is 2400.
• Unique M-Bus Secondary Address,
not modifiable
• Password Enabled/Disabled
Connectable IR Communication Modules
Main terminals -
Screw driver PZ2
Cable stripping length and max terminal screw torque
Tariff and communication terminals
Screw driver blade 0.8x3.5 mm
A
B
A
MID certified
A) Device code and
certification data indications
B) Safety-sealing between
upper and lower housing part
Please read this important information!
Intended Use / Use for Intended Purpose
The instrument is a digital multifunctional energy meter certified in accordance with MID. Integrated 4-quadrant measurement permits measurement of
energy import and export.
Thanks to MID certification, acquired data (display) can also be used for the purpose of billing energy costs to third parties.
Via integrated communication interfaces, the values are also forwarded to superordinate management systems. Protection against tampering is provided through
adequate measures (tamper-proof cover).
Safety of the operator, as well as that of the instrument, is only assured when it’s used for its intended purpose
Use for Other than Intended Purpose
Using the instrument for any purposes other than those described in the product documentation is contrary to use for intended purpose.
Liability and Guarantee
Gossen Metrawatt GmbH assumes no liability for property damage, personal injury or consequential damage resulting from improper or incorrect use of the
product, in particular due to failure to observe the product documentation. Furthermore, all guarantee claims are rendered null and void in such cases.
Nor does Gossen Metrawatt GmbH accept any liability for data loss.
3 instrument (U289D) - (U289E) - (U289F)
1 operating instructions
Read and follow these instructions carefully and completely in order to ensure safe and proper use. Keep for future reference.
DANGER
Electric shock due to live components!
Life endangering due to electric arcs!
Touching voltage conducting components is life endangering!
– The installation and any work performed on the instrument may only be carried out by a qualified electrician.
– Observe and comply with all safety regulations which are applicable for your work environment.
– Wear suitable and appropriate personal protective equipment (PPE) whenever working with the instrument.
– During installation, the installation environment must be voltage-free. For that, observe the five safety rules in accordance with DIN VDE 0105-100.
ATTENTION
Faulty installation & incorrect operation
Faulty installation/incorrect operation can damage your instrument/system.
Risk of malfunctions and disruptions
– Comply with the specified technical data and conditions
– Do not install the instrument in potentially explosive atmospheres.
– Do not install the instrument in locations where it may be exposed to direct sunlight.
– Install and operate the instrument only if it and all connection cables and leads are in good working order and damage-free. Inspect the instrument at
regular intervals.
– If the instrument doesn’t function flawlessly, permanently remove it from operation and secure it against inadvertent use.
Applications
Scope of Delivery
Safety Instructions
Technical Data
ENGLISH
Data in compliance with CLC/TR 50579 , EN 62059-32-1, EN 50470-1, EN 50470-3
Direct connection Direct connection
Pulse output built-in communication
S0 Modbus / M-Bus
General characteristics
• Housing DIN 43880 DIN 4 modules 4 modules
• Mounting EN 60715 35 mm DIN rail DIN rail
• Depth mm 70 70
• Weight g 412 412
Operating features
• Connectivity to three-phase network n° wires 4 4
• Storage of energy values and configuration internal FLASH memory - yes yes
• Display tariffs identifier for active energy n° 2 T1 and T2 T1 and T2
Approval (according to EN 50470-1, EN 50470-3)
• Reference Voltage Un Line to Neutral VAC 230 230
• Reference Voltage Un Line to Line VAC 400 400
• Reference Current (Iref) A 5 5
• Minimum Current (Imin) A 0.25 0.25
• Maximum Current (Imax) A 80 80
• Starting Current (Ist) A 0.015 0.015
• Reference Frequency (fn) A 50 50
• Number of phases (number of wires) - 3 (4) 3 (4)
• Certified Measures kWh kWh, kWh kWh, kWh
• Accuracy Active Energies (accor. to EN 50470-3) and Active Powers class B B
Supply Voltage and Power Consumption
• Operating Supply Voltage range VAC 92 ... 276 / 160 ... 480 92 ... 276 / 160 ... 480
• Maximum Power Dissipation (Voltage circuit) VA (W) <2 (0.6) < (0.6)
• Maximum VA burden (Current circuit) @ Imax VA <0.7 <0.7
• Voltage Input Waveform - AC AC
Overload capability
• Voltage continuous; phase/phase VAC 480 480
1 second: phase/phase VAC 800 800
continuous; phase/N VAC 276 276
1 second: phase/N VAC 300 300
• Current continuous A 80 80
Temporary (10 ms) A 2400 2400
Measuring Features
• Voltage range phase/phase VAC 160 ... 480 160 ... 480
phase/N VAC 92 ... 276 92 ... 276
• Current range (secondary winding) A 0.015 ... 80 0.015 ... 80
• Frequency range Hz 45 ... 65 45 ... 65
• Measured Quantities - kWh kWh
Display features
• Display type LCD - 9 (2 Decimal) 9 (2 Decimal)
Energy digits dimension mm 6 x 3 6 x 3
• Active Energy 7 digits + 2 decimal digits min. ... max. kWh 0.01 ... 9999999.99 0.01 ... 9999999.99
• Running Tariff 1 digit - T1 or T2 T1 or T2
• Display refresh period s 1 1
Safety
• Protective class class II II
• AC voltage test (EN 50470-3, 7.2) kV 4 4
• Degree of pollution - 2 2
• Operational voltage VAC 300 300
• Impulse voltage test 1.2/50 μs-kV 6 6
• Housing material flame resistance UL 94 class V0 V0
• Safety-sealing between upper and lower housing part - yes yes
Pulse Outputs (S0 signals) acc. to IEC 62053-3
• Pulse Output 1 adjustable - kWh (T1) , kWh , kWh kWh (T1) , kWh , kWh
• Pulse Output 2 adjustable - kWh (T2) , kWh , kvarh kWh (T2) , kWh , kvarh
• Pulse Rate adjustable p/kWh 1 ... N (
*
) -
(
*
) N - dep. on CT-ratio and
Pulse on Time)
• Pulse ON-time adjustable ms 30 ... 100 -
• Operating Voltage Min - Max VAC (VDC) 3 ... 28 VAC (5 ... 39 VDC) -
• Pulse ON maximum current mA 90 -
• Pulse OFF leakage current μA 1 -
• Isolation class - SELV circuit -
Embedded communication Modbus
• Physical interface RS485 - 3 Wire - - D1, D0, Common (GND)
• Internal termination resistor - - 120 Ω
• Baud rate adjustable - - 1200-2400-4800-9600
19200-38400
• Parity adjustable - - Odd, Even, None
• Stop Bit adjustable - - 1. 2
• Address adjustable - - 1-247
• Isolation class - - SELV circuit
Embedded communication M-Bus
• Baud rate adjustable - - 300-600-1200-2400
4800-9600
• Unit load - - 1
• Isolation class - - SELV circuit
Optical metrological LED
• Front mounted red LED (meter constant) proportional to active imp/exp Energy p/kWh 1000 1000
IR Connectable Communication Modules
• For communication moduls connection (LAN-TCP/IP / M-Bus / Modbus RTU / KNX) - yes yes
Connection terminals
• Screwdriver for mains terminals head with Z +/- POZIDRIV PZ2 PZ2
• Screwdriver for tariff and comm. terminals slotted head mm 0.8 x 3.5 0.8 x 3.5
• Terminal capacity main current paths solid wire min. (max) mm
2
0 (33) 0 (33)
stranded wire with sleeve min. (max) mm
2
0 (33) 0 (33)
• Terminal capacity for tariff and comm. solid wire min. (max) mm
2
0 (4) 0 (4)
stranded wire with sleeve min. (max) mm
2
0 (2.5) 0 (2.5)
Environmental conditions (storage)
• Temperature range °C -25 ... +70 -25 ... +70
Environmental conditions (operating)
• Temperature range °C -25 ... +55 -25 ... +55
• Mechanical environment - M1 M1
• Electromegnetic environment - E2 E2
• Installation Indoor - yes yes
• Altitude (max.) meters <2000 <2000
• Humidity yearly average, not condensing - <5% <75%
on 30 days per year (not condensing) - <95% <95%
• IP rating - IP51(*)/IP40 IP51(*)/IP40
(*) The metering equipment must be installed inside a cabinet with IP rating IP51 or better.
European conformity marking
Double insulation (protection category II)
CE and metrology mark with indication of year (M22) and registration number of the notified body for module D, country-specific calibration validity period
– DIN 43880
– EN 50470-1
– EN 50470-3
– EN 60715
– EN 62053-31
– IEC 62053-23
Transport and store the instrument only within the limits of permissible ambient conditions. Also use suitable packaging in order to ensure adequate protection
against environmental influences and mechanical stress.
The instrument is maintenance-free. Keep outside surfaces clean.
Clean the instrument only with a dry cloth.
Comply with national recalibration regulations and laws. The calibration period in Germany is 8 years.
A broken manufacturer’s seal means equals invalidated calibration. The instrument must not be used for billing purposes.
If your instrument requires repair, please contact our service department; see Support & Contact.
Unauthorized modification of the instrument is prohibited. This also includes opening the meter.
If it can be ascertained that the instrument has been opened by unauthorized personnel, no guarantee claims can be honored by the manufacturer with
regard to personal safety, measuring accuracy, compliance with applicable safety measures or any consequential damages. If the manufacturer’s seal is da-
maged or removed, all guarantee claims are rendered null and void.
The instruments are guaranteed for a period of 2 years after shipment. The manufacturer’s guarantee covers materials and workmanship. Damage resulting
from use for any other than the intended purpose or operating errors, as well as any and all consequential damage, are excluded.
• The following comments refer specifically to the legal situation in the Federal Republic of Germany. Owners or end users who are subject
to other national requirements are required to comply with the respectively applicable national requirements and to implement them correctly
on site
• The symbol on the left depicting a crossed-out garbage can on wheels refers to the legal obligation of the owner or end user (German elec-
trical and electronic equipment act ElektroG and German battery act BattG) not to dispose of used electrical equipment and batteries with
unsorted municipal waste (“household trash”).
• Old devices, electrical or electronic accessories and waste batteries (including rechargeable batteries) used in Germany can be returned
free of charge to Gossen Metrawatt GmbH or the service provider responsible for their disposal. Further information can be found on our
website.
Standards, Regulations and Directives
Transport & Storage
Maintenance
Recalibration
Repairs & Manufacturer’s Guarantee
Disposal & Environmental Protection
Symbols on the Instrument
Support and Contact
Please contact us at
+49 911 8602-0
Monday – Thursday: 08:00 Uhr – 16:00 Uhr
Friday: 08:00 Uhr – 14:00 Uhr
support.industrie@gossenmetrawatt.com
Please contact GMC-I Service GmbH for repairs, replacement parts and calibration:
+49 911 817718-0
service@gossenmetrawatt.com
www.gmci-service.com
CE Declaration
The device fulfills all requirements of applicable EU directives and national regulations.
We confirm this with the CE mark.
The CE declaration is available on our website:
https://www.gmc-instruments.de/en/services/download-center/download-center/
Gossen Metrawatt GmbH
Südwestpark 15 • 90449 Nürnberg • Germany
Telefon +49 911 8602-0 • Telefax +49 911 8602-669
E-Mail info@gossenmetrawatt.com • www.gossenmetrawatt.com
© Gossen Metrawatt GmbH
• Prepared in Germany
• Subject to change, errors excepted
• PDF version available on the Internet
All trademarks, registered trademarks, logos, product names and company names are the
property of their respective owners.
Notes
Produktspezifikationen
| Marke: | Gossen Metrawatt |
| Kategorie: | Energiekostensenker |
| Modell: | METRALINE ENERGY U289 Direct |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Gossen Metrawatt METRALINE ENERGY U289 Direct benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Energiekostensenker Gossen Metrawatt
5 September 2025
4 September 2025
Gossen Metrawatt METRALINE ENERGY U289 ABC Bedienungsanleitung
3 September 2025
Gossen Metrawatt METRALINE ENERGY U289 Direct Bedienungsanleitung
3 September 2025
3 September 2025
14 März 2024
Bedienungsanleitung Energiekostensenker
- Hager
- Schneider
- Voltcraft
- Perel
- IFM
- Wago
- Elro
- Plugwise
- ORNO
- UPM
- Camille Bauer
- PeakTech
- Aeon Labs
- CIRCUTOR
- Growatt
Neueste Bedienungsanleitung für -Kategorien-
5 September 2025
5 September 2025
4 September 2025
4 September 2025
4 September 2025
3 September 2025
26 August 2025
25 August 2025
19 August 2025
18 August 2025
